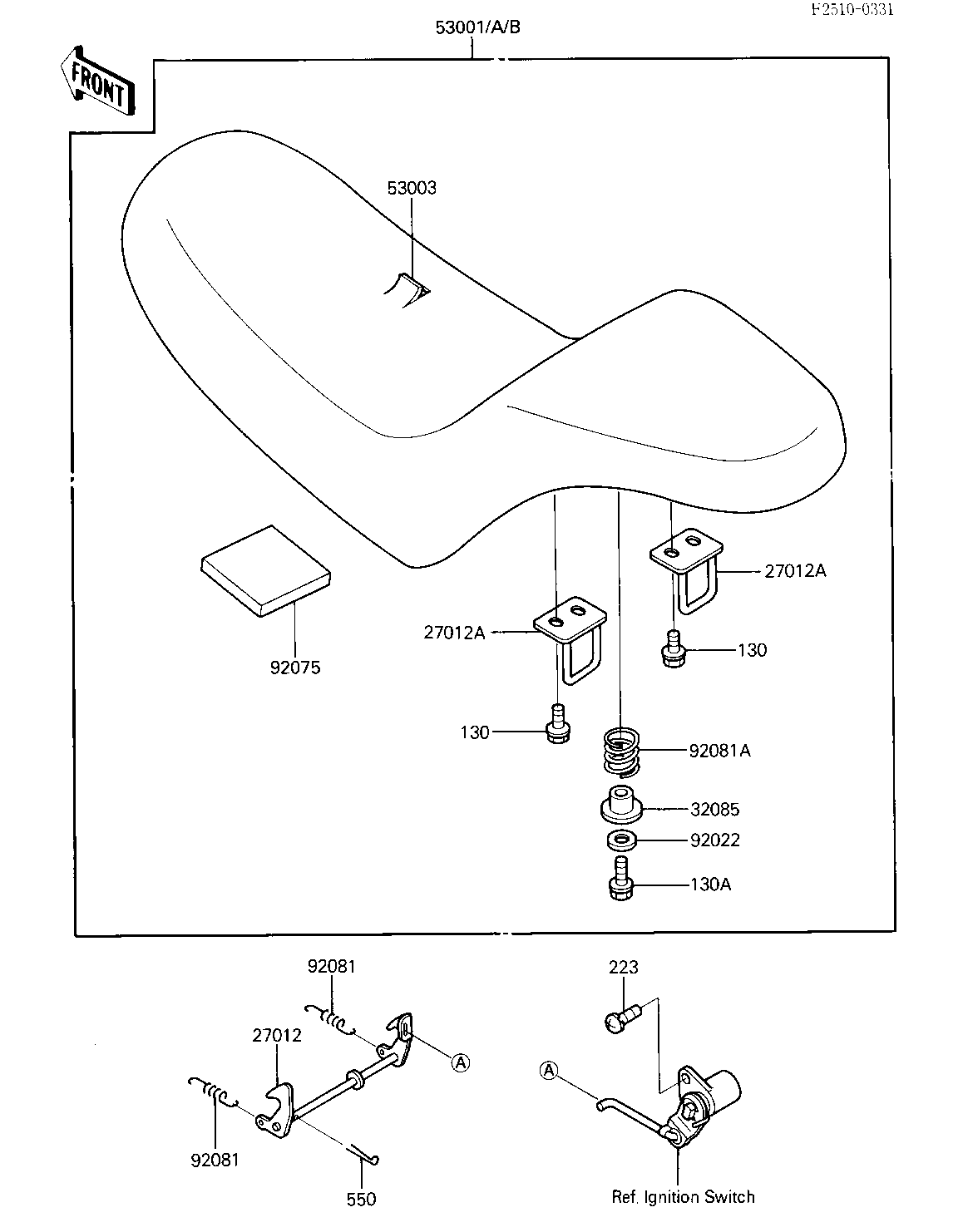

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOK,SEAT LOCK 27012 27012-1356 1
HOOK, SEAT 27012A 53008-021 4
STOPPER,SEAT 32085 32085-1167 2
SEAT-ASSY,DUAL 53001 53001-1464 1 ( - JKAZL4A1 GA002884)
SEAT-ASSY,DUAL 53001B 53001-1486 1 (JKAZL4A1 GA002885 - )
LEATHER,SEAT 53003 53003-1161 2
WASHER,6.5X16X2 92022 92022-1565 2
DAMPER,SEAT 92075 92075-1877 1
SPRING,HOOK RETURN 92081 92081-1580 2
SPRING,SEAT 92081A 92081-1664 2
BOLT 130 130B0612 8
BOLT,FLANGED,6X25 130A 130B0625 2
SCREW-PAN-WS-CROS 223 223B0510 2
PIN,COTTER,2.0X12 550 550D2012 1
