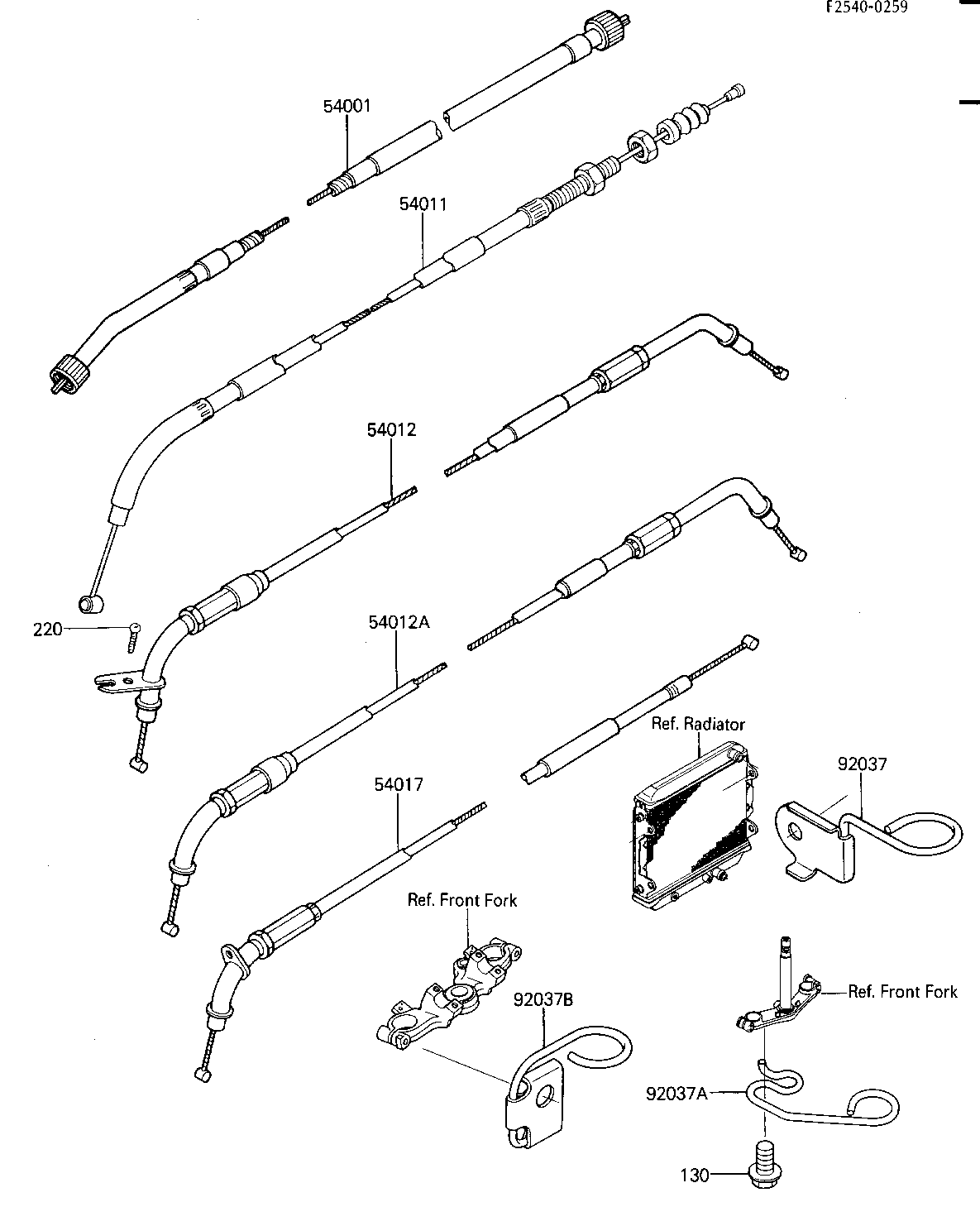

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1117 1
CABLE-CLUTCH 54011 54011-1242 1
CABLE-THROTTLE,OPENIN 54012 54012-1298 1
CABLE-THROTTLE,CLOSIN 54012A 54012-1299 1
CABLE-STARTER 54017 54017-1075 1
CLAMP,CLUTCH CABLE 92037 92037-1755 1
CLAMP 92037A 92037-1813 1
CLAMP 92037B 92037-1814 1
BOLT-FLANGED 130 130D0612 1
SCREW-PAN-CROSS,5X14 220 220C0514 1
