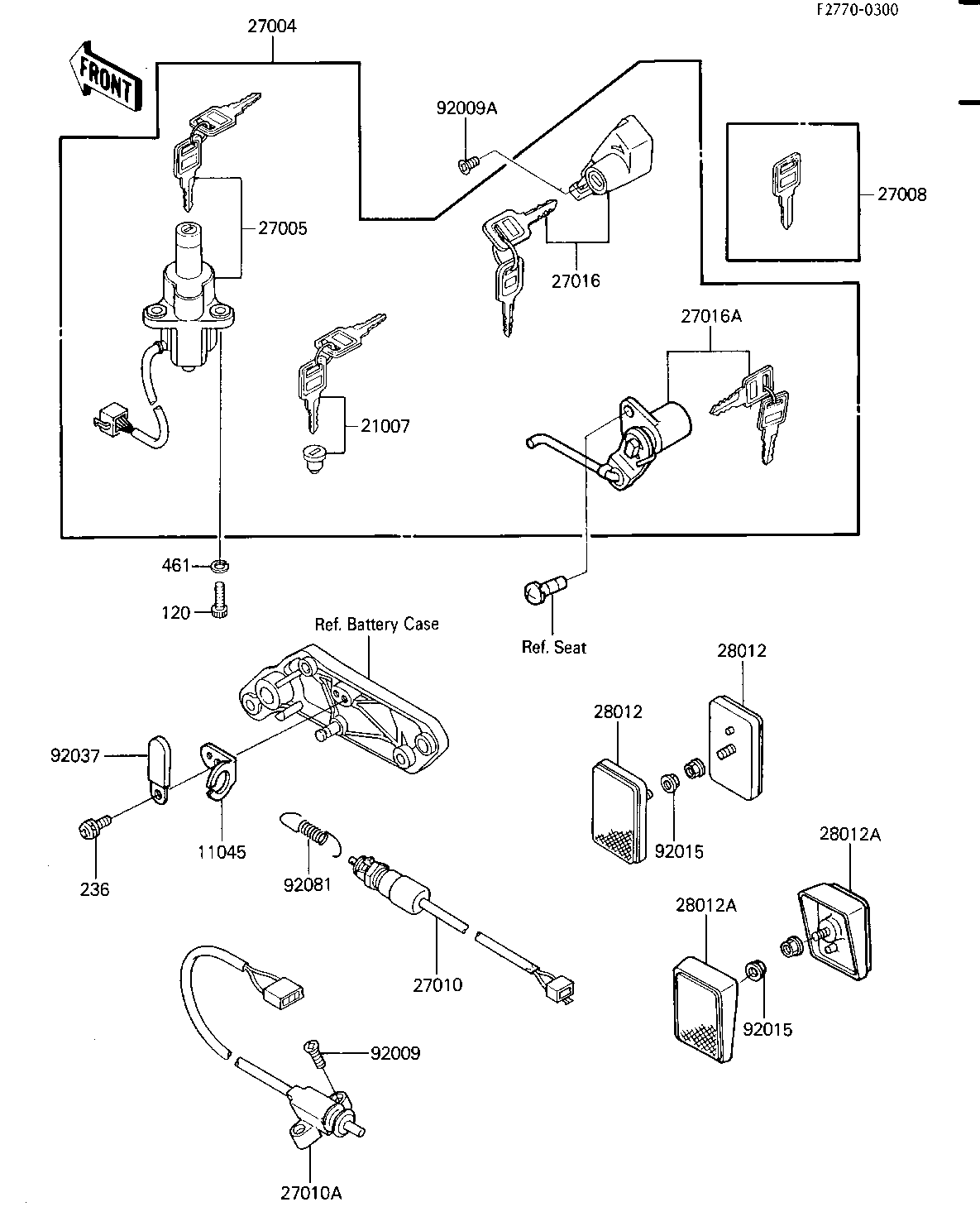

1986 ZL600 Eliminator - IGNITION SWITCH/LOCKS/REFLECTORS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BRAKE SWITCH | 11045 | 11044-1873 | 1 | ||
ROTOR,FUEL TANK | 21007 | 21007-5005 | 1 | ||
SWITCH-ASSY | 27004 | 27004-5283 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-5045 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
SWITCH,BRAKE LAMP | 27010 | 27010-1152 | 1 | ||
SWITCH,SIDE STAND | 27010A | 27010-1186 | 1 | ||
LOCK-ASSY,HELMET | 27016 | 27016-5060 | 2 | ||
LOCK-ASSY,SEAT | 27016A | 27016-5104 | 1 | ||
REFLECTOR-REFLEX | 28012 | 28012-1009 | 2 | ||
REFLECTOR-REFLEX,RR | 28012A | 28012-1058 | 2 | ||
SCREW | 92009 | 92009-1359 | 2 | ||
SCREW | 92009A | 92009-1401 | 2 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 4 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1539 | 1 | ||
SPRING,SIDE STAND SW | 92081 | 27011-020 | 1 | ||
BOLT-SOCKET | 120 | 120T0822 | 2 | ||
SCREW-PAN-WSP-CROS | 236 | 236B0514 | 1 | ||
WASHER-SPRING | 461 | 461L0800 | 2 |
BRACKET,BRAKE SWITCH | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR,FUEL TANK | |
REF # | 21007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY | |
REF # | 27004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY-IGNITION | |
REF # | 27005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY-LOCK,BLANK | |
REF # | 27008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SWITCH,BRAKE LAMP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,SIDE STAND | |
REF # | 27010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,HELMET | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LOCK-ASSY,SEAT | |
REF # | 27016A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX,RR | |
REF # | 28012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,SIDE STAND SW | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS | |
REF # | 236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SPRING | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
