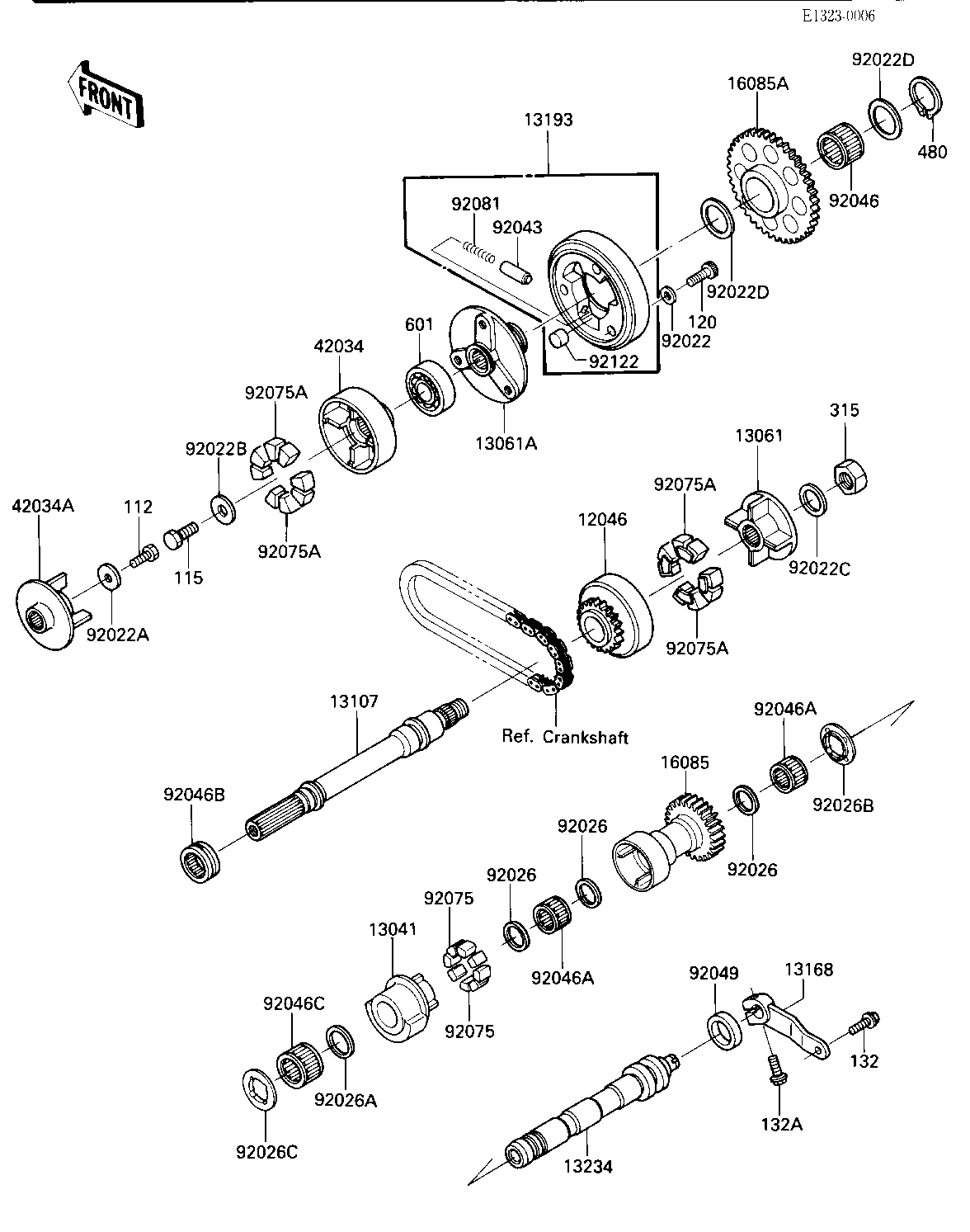

1986 Ninja® 1000R - BALANCER/STARTER CLUTCH (-E/NO.015992)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPROCKET,GENERATOR | 12046 | 12046-1068 | 1 | ||
BALANCER | 13041 | 13041-1064 | 1 | ||
BOSS,SPROCKET | 13061 | 13061-1111 | 1 | ||
BOSS,COUPLING | 13061A | 13061-1168 | 1 | ||
SHAFT | 13107 | 13107-1108 | 1 | ||
LEVER | 13168 | 13168-1236 | 1 | ||
CLUTCH-ASSY-ONEWAY | 13193 | 13193-1056 | 1 | ||
SHAFT-COMP,BALANCER | 13234 | 13234-1052 | 1 | ||
GEAR,BALANCER | 16085 | 16085-1139 | 1 | ||
GEAR,ONEWAY CLUTCH | 16085A | 16085-1151 | 1 | ||
COUPLING | 42034 | 42034-1055 | 1 | ||
COUPLING | 42034A | 42034-1056 | 1 | ||
WASHER,PLAIN | 92022 | 92022-1108 | 3 | ||
WASHER,6X19.5X2 | 92022A | 92022-1517 | 1 | ||
WASHER,8X22X3 | 92022B | 92022-1518 | 1 | ||
WASHER,16X26X2 | 92022C | 92022-1519 | 1 | ||
WASHER-THRUST | 92022D | 92022-225 | 2 | ||
SPACER,21.3X24.3X1.5 | 92026 | 92026-1213 | 3 | ||
SPACER,21.3X26X1 | 92026A | 92026-1223 | 1 | ||
SPACER | 92026B | 92026-1265 | 1 | ||
SPACER | 92026C | 92026-1271 | 1 | ||
PIN | 92043 | 92043-087 | 3 | ||
BEARING,NEEDLE,K25302 | 92046 | 92046-1022 | 1 | ||
BEARING-NEEDLE,K21X25 | 92046A | 92046-1105 | 2 | ||
BEARING-NEEDLE,RNA490 | 92046B | 92046-1109 | 1 | ||
BEARING-NEEDLE | 92046C | 92046-1155 | 1 | ||
SEAL-OIL,S192705 | 92049 | 92049-1174 | 1 | ||
DAMPER,BALANCER | 92075 | 92075-1709 | 8 | ||
DAMPER,COUPLING | 92075A | 92075-1790 | 8 | ||
SPRING | 92081 | 92081-110 | 3 | ||
PIN | 92122 | 92122-001 | 3 | ||
BOLT-UPSET,6X16 | 112 | 112G0616 | 1 | ||
BOLT,8X20 | 115 | 115G0820 | 1 | ||
BOLT,SOCKET,8X12 | 120 | 120P0812 | 3 | ||
BOLT-FLANGED-SMALL | 132 | 132J0616 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132J0620 | 1 | ||
NUT-HEX-FINE | 315 | 315G1600 | 1 | ||
CIRCLIP,25M/M | 480 | 480J2500 | 1 | ||
BEARING BALL #6203 | 601 | 601A6203 | 1 |
