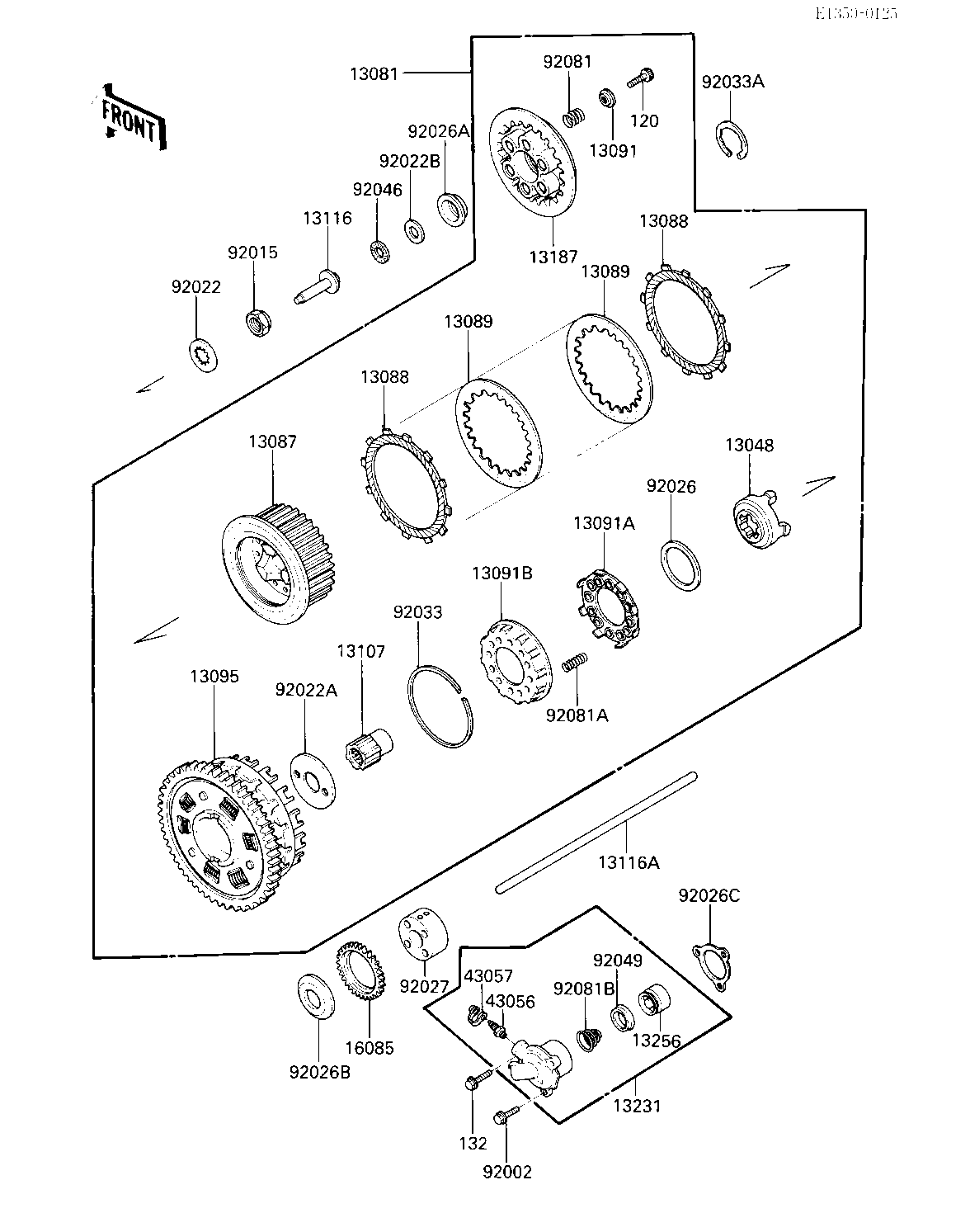

1986 Ninja® 1000R - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DAMPER 13048 13048-1007 1
CLUTCH-ASSY 13081 13081-1208 1
HUB,CLUTCH 13087 13087-1009 1
PLATE-FRICTION 13088 13088-1051 9
PLATE,CLUTCH,STEEL 13089 13089-1004 8
HOLDER,CLUTCH,SPRING 13091 13091-1041 6
HOLDER,CLUTCH SPRING 13091A 13091-1042 1
HOLDER,CLUTCH SPRING 13091B 13091-1043 1
HOUSING-COMP-CLUTCH 13095 13095-1146 1
SHAFT,CLUTCH 13107 13107-1024 1
ROD-PUSH,CLUTCH 13116 13116-1102 1
ROD-PUSH,CLUTCH 13116A 13116-1115 1
PLATE,CLUTCH OPERATNG 13187 13187-1004 1
RELEASE-ASSY-CLUTCH 13231 13231-1066 1
PISTON,CLUTCH RELEASE 13256 13256-1051 1
GEAR,OIL PUMP 16085 16085-1108 1
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
BOLT 92002 92002-1613 2
NUT,20MM 92015 92015-1555 1
WASHER,LOCK 92022 92022-1114 1
WASHER,CLUTCH THRUST 92022A 92022-1221 1
WASHER,15.1X29X1.0 92022B 92022-1463 1
SPACER,3.5X59X70 92026 92026-1043 1
SPACER,CLUTCH 92026A 92026-1202 1
SPACER 92026B 92026-5001 1
SPACER,CLUTCH RELEASE 92026C 92026-1263 1
COLLAR 92027 92027-1710 1
RING,SNAP 92033 92033-1029 1
RING-SNAP 92033A 92033-1177 1
BEARING-NEEDLE,AXK110 92046 92046-1052 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH 92081 92081-1114 6
SPRING,CLUTCH DAMPER 92081A 92081-1115 12
SPRING,CLUTCH RELEASE 92081B 92081-1644 1
BOLT-SOCKET,6X16,BLAC 120 120S0616 6
BOLT-FLANGED-SMALL 132 132J0680 1
