Parts Diagrams |

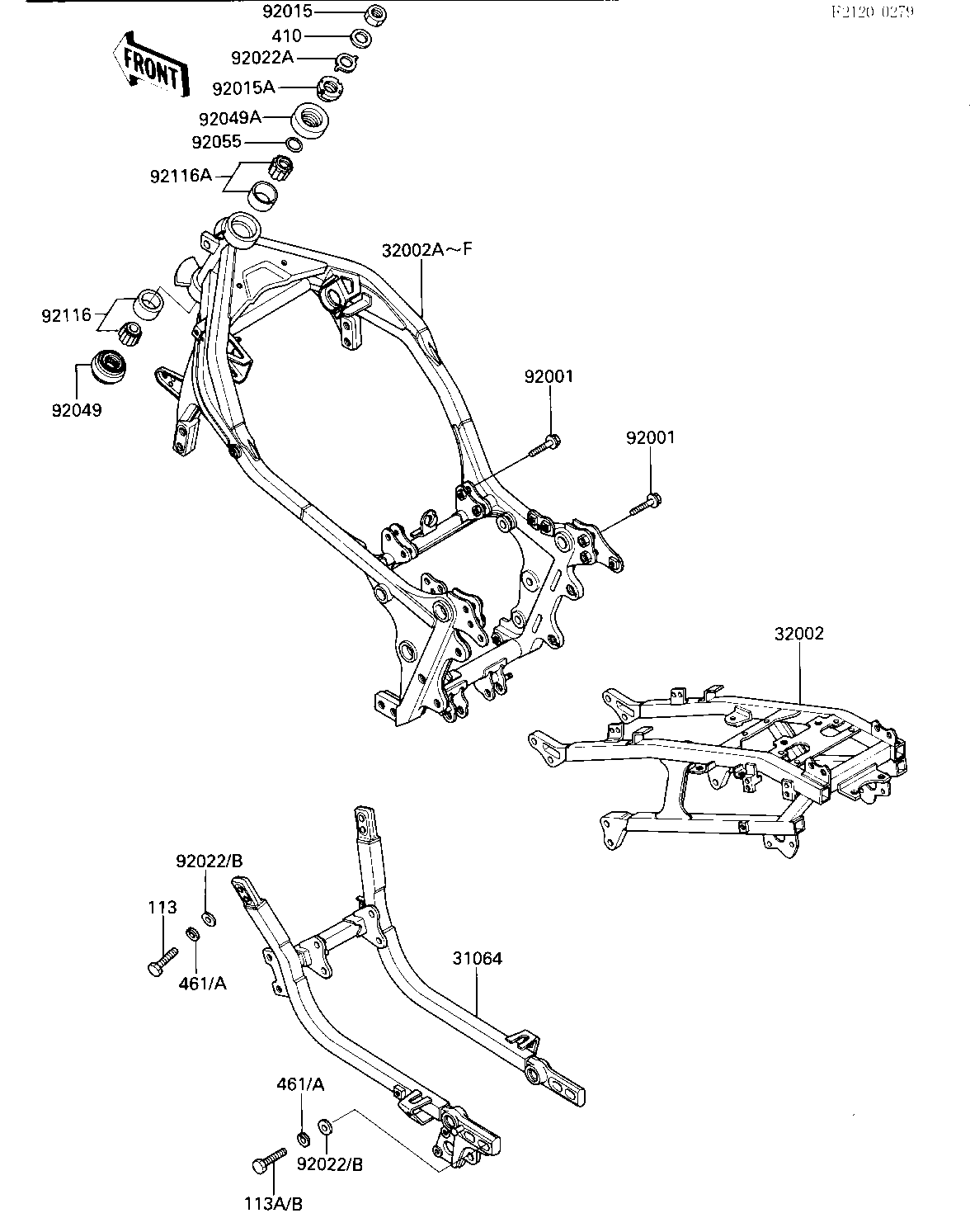

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIPE-COMP,FRAME,LWR | 31064 | 31064-1067 | 1 | ||
FRAME-COMP,RR | 32002 | 32002-1808 | 1 | ||
FRAME-COMP,FR | 23002A | 32002-1932 | 1 | CN,US | |
FRAME-COMP,FR | 32002B | 32002-1934 | 1 | CA | |
FRAME-COMP,FR | 32002C | 32002-1932 | 1 | CN,US | |
FRAME-COMP,FR | 32002D | 32002-1934 | 1 | CA | |
BOLT,FLANGED,8X28,BLA | 92001 | 92001-1508 | 8 | ||
NUT,18MM | 92015 | 92015-1404 | 1 | ||
NUT | 92015A | 92015-1546 | 1 | ||
WASHER,10.5X18X2.5 | 92022 | 92022-1453 | 8 | ||
WASHER,CLAW,18.5X30X2 | 92022A | 92022-1555 | 1 | ||
SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
SEAL-OIL,STEERING STE | 92049A | 92049-1214 | 1 | ||
RING-0.24.7MM | 92055 | 92055-1160 | 1 | ||
BRG,ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
BEARING-ROLLER | 92116A | 92116-1056 | 1 | ||
BOLT-SMALL-FINE | 113 | 113P1030 | 4 | ||
BOLT-SMALL-FINE | 113A | 113P1035 | 4 | ||
W-PLAIN-S | 410 | 410F1800 | 1 | ||
WASHER SPRING 10MM | 461 | 461F1000 | 8 |
PIPE-COMP,FRAME,LWR | |
REF # | 31064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP,RR | |
REF # | 32002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP,FR | |
REF # | 23002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN,US |
FRAME-COMP,FR | |
REF # | 32002B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
FRAME-COMP,FR | |
REF # | 32002C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN,US |
FRAME-COMP,FR | |
REF # | 32002D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
BOLT,FLANGED,8X28,BLA | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
NUT,18MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X18X2.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,CLAW,18.5X30X2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,XMHE36X52X4J | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,STEERING STE | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-0.24.7MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRG,ROLLER,HR320/28XJ | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER | |
REF # | 92116A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL-FINE | |
REF # | 113 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-SMALL-FINE | |
REF # | 113A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
W-PLAIN-S | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
