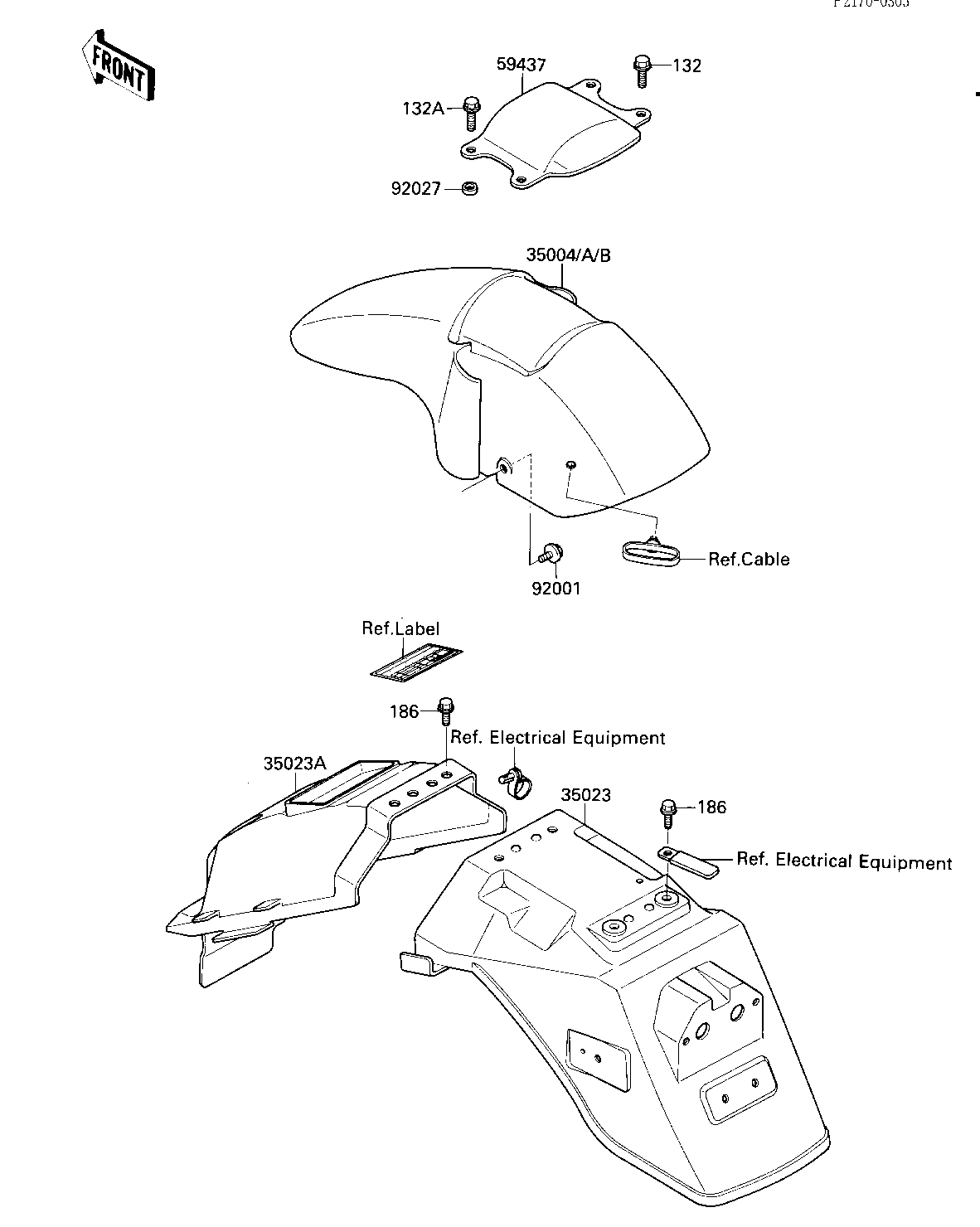

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,F.RED 35004 35004-1170-B1 1
FENDER-FRONT,EBONY 35004A 35004-1170-H8 1
FENDER-REAR,RR,BLACK 35023 35023-1134-6Z 1
FENDER-REAR,FR 35023A 35023-1137 1
STABILIZER 59437 59437-1054 1
BOLT,W/SP,6X16 92001 92001-1763 2
COLLAR,9.5X12.7X4.5 92027 92027-1879 2
BOLT-FLANGED-SMALL 132 132G0820 2
BOLT-FLANGED-SMALL 132A 132G0825 2
BOLT-UPSET-WP 186 186C0618 4
