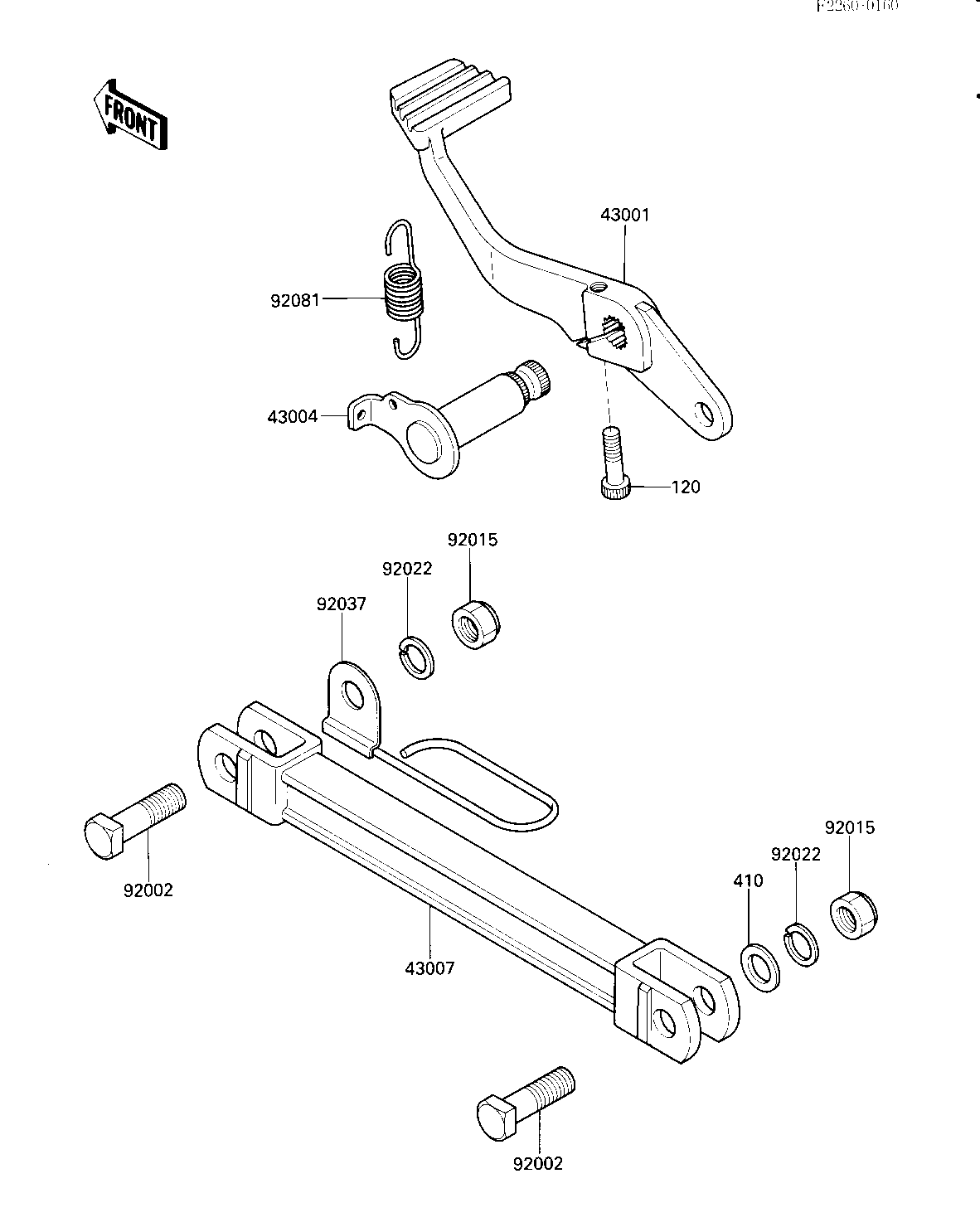

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1182 1
SHAFT-BRAKE 43004 43004-1112 1
ROD-TORQUE 43007 43007-1117 1
BOLT,10X40 92002 92002-1494 2
NUT,10MM 92015 92015-1429 2
WASHER,SPRING,10MM 92022 92022-1540 2
CLAMP,HOSE 92037 92037-1709 1
SPRING,STEP RETURN 92081 92081-1947 1
BOLT,6X25 120 120P0625 1
WASHER PLAIN 10MM 410 410B1000 1
