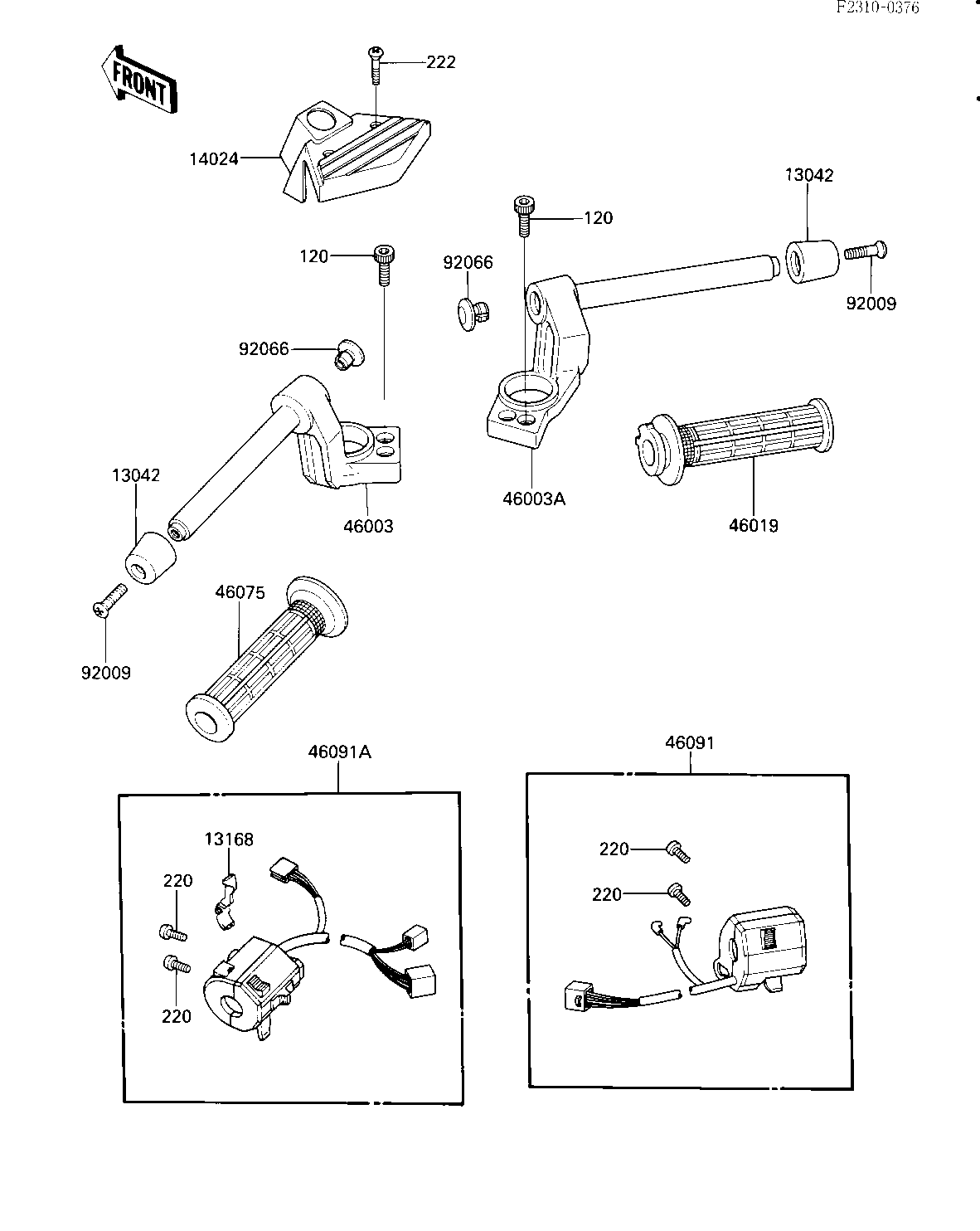

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1005 2
LEVER,CHOKE 13168 13168-1239 1
COVER,HANDLE 14024 14024-1104 1
HANDLE,LH 46003 46003-1190 1
HANDLE,RH 46003A 46003-1191 1
GRIP-ASSY,THROTTLE 46019 46019-1059 1
GRIP,LH 46075 46075-1028 1
HOUSING-ASSY-CONTROL, 46091 46091-1361 1
HOUSING-ASSY-CONTROL, 46091A 46091-1380 1
SCREW,HUNDLE WEIGHT 92009 92009-1257 2
PLUG,HANDLE 92066 92066-1179 2
BOLT-SOCKET,8X20 120 120S0820 4
SCREW-PAN-CROS 220 220C0520 4
SCREW-CSK-RD-CROS 222 222C0530 2
