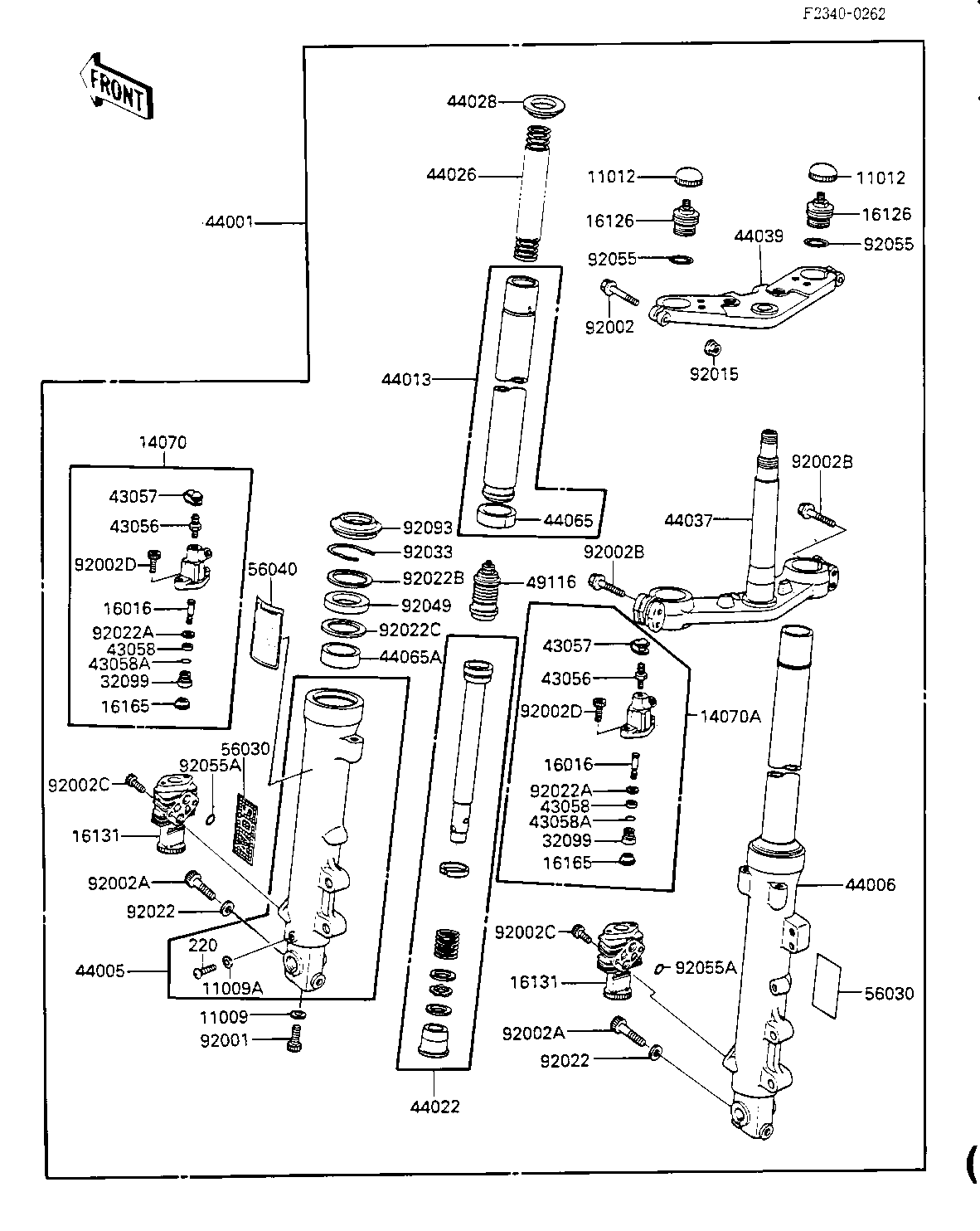

1986 Ninja® 1000R - FRONT FORK (F/NO. GA000321-)(F/NO. GB503

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
CAP,FORK TOP 11012 11012-1501 2
BODY-BREATHER,ANTI-DI 14070 14070-1070 1
BODY-BREATHER,ANTI-DI 14070A 14070-1060 1
PLUNGER,ANTI-DIVE 16016 16016-1067 2
VALVE 16126 16126-1150 2
BODY-VALVE,FORK,ANTI- 16131 16131-1061 2
SEPARATOR 16165 16165-1051 2
CASE 32099 32099-1067 2
BREEDER 43056 43056-003 2
CAP,BREEDER 43057 43057-003 2
RING 43058 43058-1052 2
RING 43058A 43058-1053 2
FORK-FRONT 44001 44001-1628 1
PIPE-LEFT FORK OUTER 44005 44005-1228 1
PIPE-RIGHT FORK OUTER 44006 44006-1228 1
PIPE-FORK INNER 44013 44013-1242 2
CYLINDER-FORK 44022 44022-1188 2
SPRING-FRONT FORK,K=0 44026 44026-1317 2
GUIDE,FORK SPRING 44028 44028-1004 2
HOLDER-FORK UNDER 44037 44037-1201 1
HOLDER-FORK UPPER 44039 44039-1125 1
BUSHING-FRONT FORK,IN 44065 44065-1076 2
BUSHING-FRONT FORK 44065A 44065-1077 2
VALVE-ASSY,FORK 49116 49116-1062 2
LABEL,AVDS MARK 56030 56030-1057 2
LABEL-WARNING,SHOCKAB 56040 56040-1117 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 2
BOLT 92002A 92002-1316 2
BOLT,FLANGED,8X40 92002B 92002-1476 4
BOLT 92002C 92002-1564 4
BOLT 92002D 92002-1565 4
NUT,FLANGED,8MM 92015 92015-1408 2
WASHER 92022 92022-1598 2
WASHER 92022A 92022-1636 2
WASHER,FORK OUTER PIP 92022B 92022-1774 2
WASHER,FORK OUTER PIP 92022C 92022-1775 2
CIRCLIP 92033 92033-1036 2
SEAL-OIL,FORK 92049 92049-1251 2
"0" RING,FORK TOP 92055 92055-1052 2
RING-O,ANTI-DIVE UNIT 92055A 92055-1201 4
SEAL,FORK 92093 92093-1210 2
SCREW PAN HEAD 4X8 220 220E0408 2
