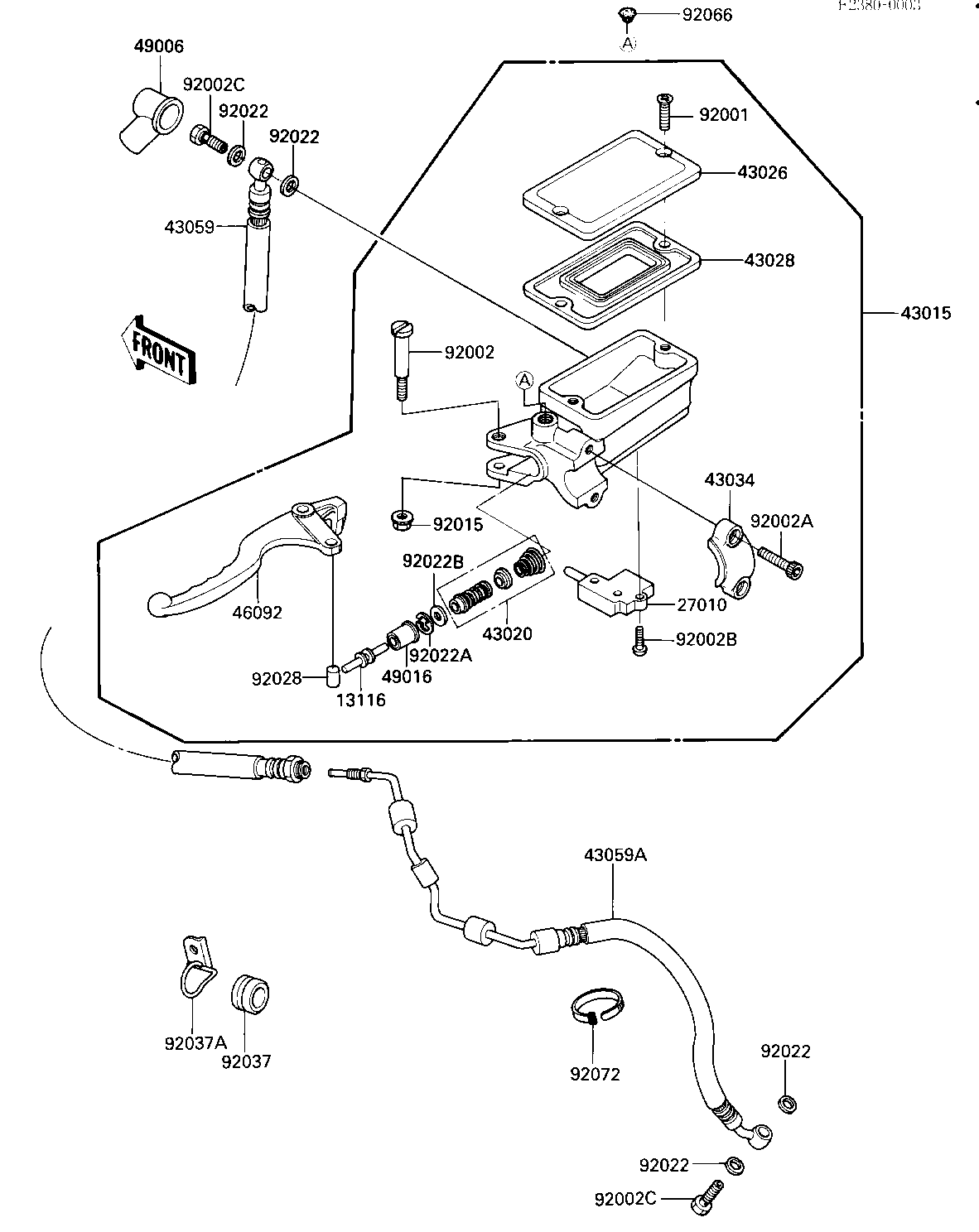

1986 Ninja® 1000R - CLUTCH MASTER CYLINDER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ROD-PUSH,MASTER CYLIN | 13116 | 13116-1110 | 1 | ||
SWITCH,CLUTCH | 27010 | 27010-1171 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1307 | 1 | ||
PISTON-COMP-BRAKE,CLU | 43020 | 43020-1055 | 1 | ||
CAP-BRAKE,FR | 43026 | 43026-1052 | 1 | ||
DIAPHRAGM,MASTER CYLI | 43028 | 43028-1058 | 1 | ||
HOLDER-BRAKE,MASTER C | 43034 | 43034-1054 | 1 | ||
HOSE-BRAKE,CLUTCH | 43059 | 43059-1303 | 1 | ||
HOSE-BRAKE,CLUTCH | 43059A | 43059-1304 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1130 | 1 | ||
BOOT,DUST | 49006 | 49006-1041 | 1 | ||
COVER-SEAL,MASTER CYL | 49016 | 49016-1044 | 1 | ||
BOLT,MASTER CYLINDER | 92001 | 92001-1727 | 2 | ||
BOLT,LEVER SET | 92002 | 92002-1322 | 1 | ||
BOLT,SOCKET,6X10 | 92002A | 92002-1324 | 2 | ||
BOLT | 92002B | 92002-1325 | 1 | ||
BOLT,OIL,L=23 | 92002C | 92002-1888 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
WASHER,PISTON | 92022A | 92022-1605 | 1 | ||
WASHER,PISTON | 92022B | 92022-1606 | 1 | ||
BUSHING,MASTER CYLIND | 92028 | 92028-1310 | 1 | ||
DAMPER RUBBER | 92037 | 43064-007 | 1 | ||
CLAMP | 92037A | 92037-1717 | 1 | ||
PLUG,9.5X8 | 92066 | 92066-1077 | 1 | ||
BAND | 92072 | 92072-1197 | 1 |
