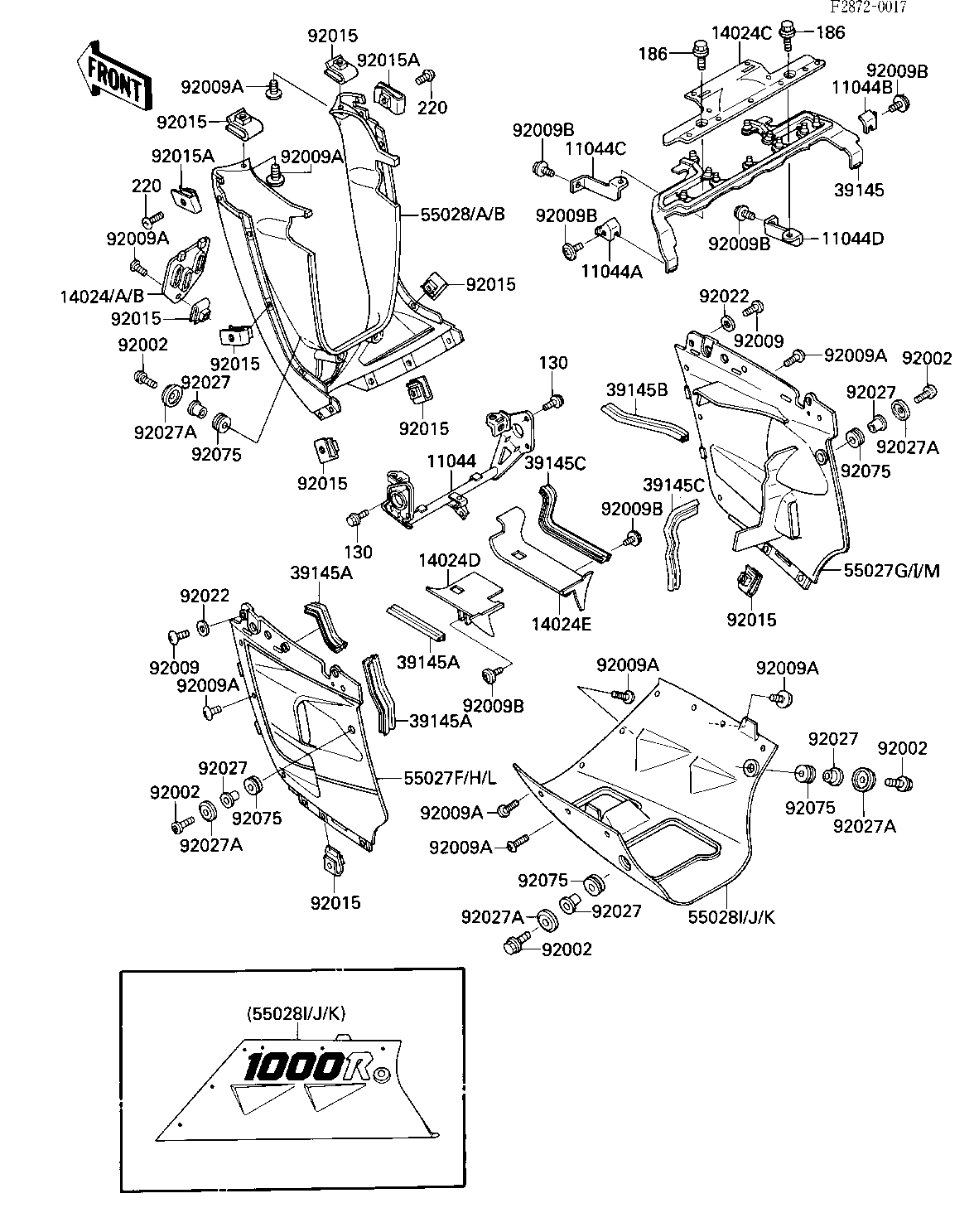

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,OIL COOLER | 11044 | 11044-1198 | 1 | ||
BRACKET,CENTER COVER, | 11044A | 11044-1441 | 1 | ||
BRACKET,CENTER COVER, | 11044B | 11044-1442 | 1 | ||
BRACKET,COWLING,SIDE, | 11044C | 11044-1580 | 1 | ||
BRACKET,COWLING,SIDE, | 11044D | 11044-1581 | 1 | ||
COVER,RESERVE TANK,P. | 14024A | 14024-1068-T2 | 1 | ||
COVER,RESERVE TANK,M. | 14024B | 14024-1068-1A | 1 | ||
COVER,CNT | 14024C | 14024-1109 | 1 | ||
COVER,LOWER COWLING I | 14024D | 14024-1114 | 1 | ||
COVER,LOWER COWLING I | 14024E | 14024-1115 | 1 | ||
TRIM-SEAL,CENTER COVE | 39145 | 39145-1054 | 1 | ||
TRIM-SEAL,SIDE COWLIN | 39145A | 39145-1055 | 3 | ||
TRIM-SEAL,SIDE COWLIN | 39145B | 39145-1056 | 1 | ||
TRIM-SEAL,SIDE COWLIN | 39145C | 39145-1057 | 2 | ||
COWLING-ASSY,SIDE,LH, | 55027F | 55027-5016-T3 | 1 | ||
COWLING-ASSY,SIDE,RH, | 55027G | 55027-5017-T3 | 1 | ||
COWLING-ASSY,SIDE,LH, | 55027H | 55027-5018-T4 | 1 | ||
COWLING-ASSY,SIDE,RH, | 55027I | 55027-5019-T4 | 1 | ||
COWLING,FR,P.C.GRAY | 55028A | 55028-1090-T2 | 1 | ||
COWLING,FR,M.BLACK | 55028B | 55028-1090-1A | 1 | ||
COWLING,LWR,M.BLACK | 55028I | 55028-5200-1A | 1 | ||
COWLING,LWR,P.C.GRAY | 55028J | 55028-5201-T2 | 1 | ||
BOLT,SOCKET,6X18 | 92002 | 92150-1553 | 6 | ||
SCREW,SEAT COVER | 92009 | 92009-1186 | 6 | ||
SCREW | 92009A | 92009-1653 | 21 | ||
SCREW,6X10 | 92009B | 92009-1402 | 6 | ||
NUT | 92015 | 92015-1710 | 21 | ||
NUT,4MM | 92015A | 92015-1558 | 2 | ||
WASHER PL 5.2X18X1.2 | 92022 | 92022-285 | 6 | ||
COLLAR | 92027 | 92027-1795 | 6 | ||
COLLAR,FRONT COWLING | 92027A | 92027-1886 | 6 | ||
DAMPER | 92075 | 92075-1634 | 6 | ||
BOLT-FLANGED,8X12 | 130 | 130G0812 | 4 | ||
BOLT-UPSET-WP | 186 | 186C0618 | 2 | ||
SCREW PAN HEAD 4X16 | 220 | 220B0416 | 2 |
BRACKET,OIL COOLER | |
REF # | 11044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CENTER COVER, | |
REF # | 11044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CENTER COVER, | |
REF # | 11044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,COWLING,SIDE, | |
REF # | 11044C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,COWLING,SIDE, | |
REF # | 11044D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RESERVE TANK,P. | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RESERVE TANK,M. | |
REF # | 14024B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,CNT | |
REF # | 14024C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LOWER COWLING I | |
REF # | 14024D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,LOWER COWLING I | |
REF # | 14024E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,CENTER COVE | |
REF # | 39145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,SIDE COWLIN | |
REF # | 39145A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TRIM-SEAL,SIDE COWLIN | |
REF # | 39145B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM-SEAL,SIDE COWLIN | |
REF # | 39145C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COWLING-ASSY,SIDE,LH, | |
REF # | 55027F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING-ASSY,SIDE,RH, | |
REF # | 55027G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING-ASSY,SIDE,LH, | |
REF # | 55027H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING-ASSY,SIDE,RH, | |
REF # | 55027I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,FR,P.C.GRAY | |
REF # | 55028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,FR,M.BLACK | |
REF # | 55028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,LWR,M.BLACK | |
REF # | 55028I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,LWR,P.C.GRAY | |
REF # | 55028J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X18 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW,SEAT COVER | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 21 |
DESTINATION | |
REMARKS |
SCREW,6X10 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 21 |
DESTINATION | |
REMARKS |
NUT,4MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PL 5.2X18X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR,FRONT COWLING | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WP | |
REF # | 186 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 4X16 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
