Parts Diagrams |

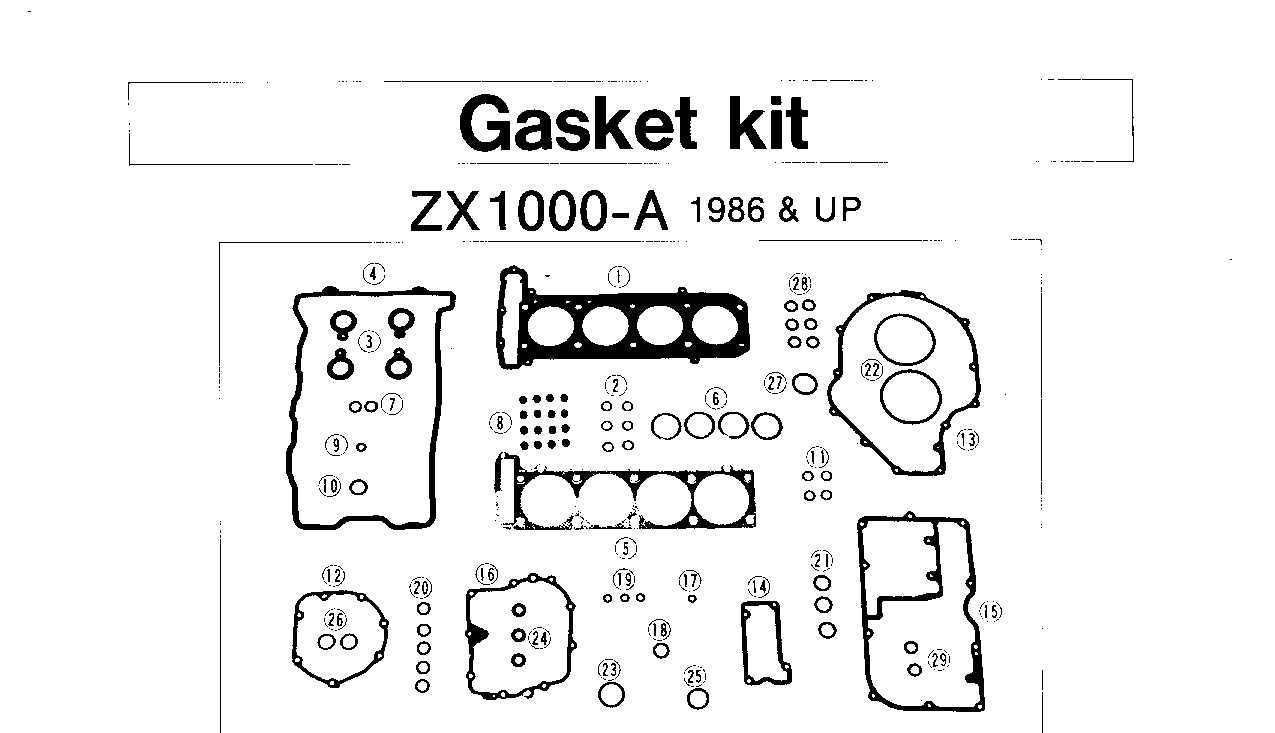

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 1 | 11004-1148 | 1 | 11028-1112 | |
| GASKET,12.4X17X1.5 | 2 | 11009-1376 | 6 | 11028-1112 | |
| GASKET | 3 | 11009-1377 | 4 | 11028-1112 | |
| GASKET,CYLINDER HEAD | 4 | 11009-1378 | 1 | 11028-1112 | |
| GASKET,CYLINDER BASE | 5 | 11009-1505 | 1 | 11028-1112 | |
| GASKET,EXHAUST PIPE H | 6 | 11009-1840 | 4 | 11028-1112 | |
| "O" RING,15MM | 7 | 670B2015 | 2 | 11028-1112 | |
| SEAL-OIL,RVC2-5.5X8.5 | 8 | 92049-1062 | 16 | 11028-1112 | |
| RING-O | 9 | 92055-1248 | 1 | 11028-1112 | |
| RING-O | 10 | 92055-1249 | 1 | 11028-1112 | |
| GASKET,FLOAT CHAMBER | 11 | 11009-1375 | 4 | 11028-1113 | |
| GASKET,COVER,LH | 12 | 11009-1863 | 1 | 11028-1113 | |
| GASKET,CLUTCH COVER | 13 | 11009-1860 | 1 | 11028-1113 | |
| GASKET,BREATHER BODY | 14 | 11009-1861 | 1 | 11028-1113 | |
| GASKET | 15 | 11009-1981 | 1 | 11028-1113 | |
| GASKET | 16 | 11009-1982 | 1 | 11028-1113 | |
| "O" RING,8MM | 17 | 670B1508 | 1 | 11028-1113 | |
| "0" RING,18MM | 18 | 670B2018 | 1 | 11028-1113 | |
| O RING | 19 | 670D1509 | 3 | 11028-1113 | |
| O RING | 20 | 670D2016 | 5 | 11028-1113 | |
| O RING | 21 | 670D2020 | 3 | 11028-1113 | |
| "0" RING,90MM | 22 | 671B2590 | 2 | 11028-1113 | |
| "0" RING,31MM | 23 | 92055-049 | 1 | 11028-1113 | |
| "O" RING | 24 | 92055-077 | 3 | 11028-1113 | |
| RING-O,25.7X2.4 | 25 | 92055-1136 | 1 | 11028-1113 | |
| RING-O | 26 | 92055-1146 | 2 | 11028-1113 | |
| RING-O,33MM | 27 | 92055-1266 | 1 | 11028-1113 | |
| RING-O,16MM | 28 | 92055-1282 | 6 | 11028-1113 | |
| RING-O | 29 | 92055-1146 | 2 | 11028-1113 |
