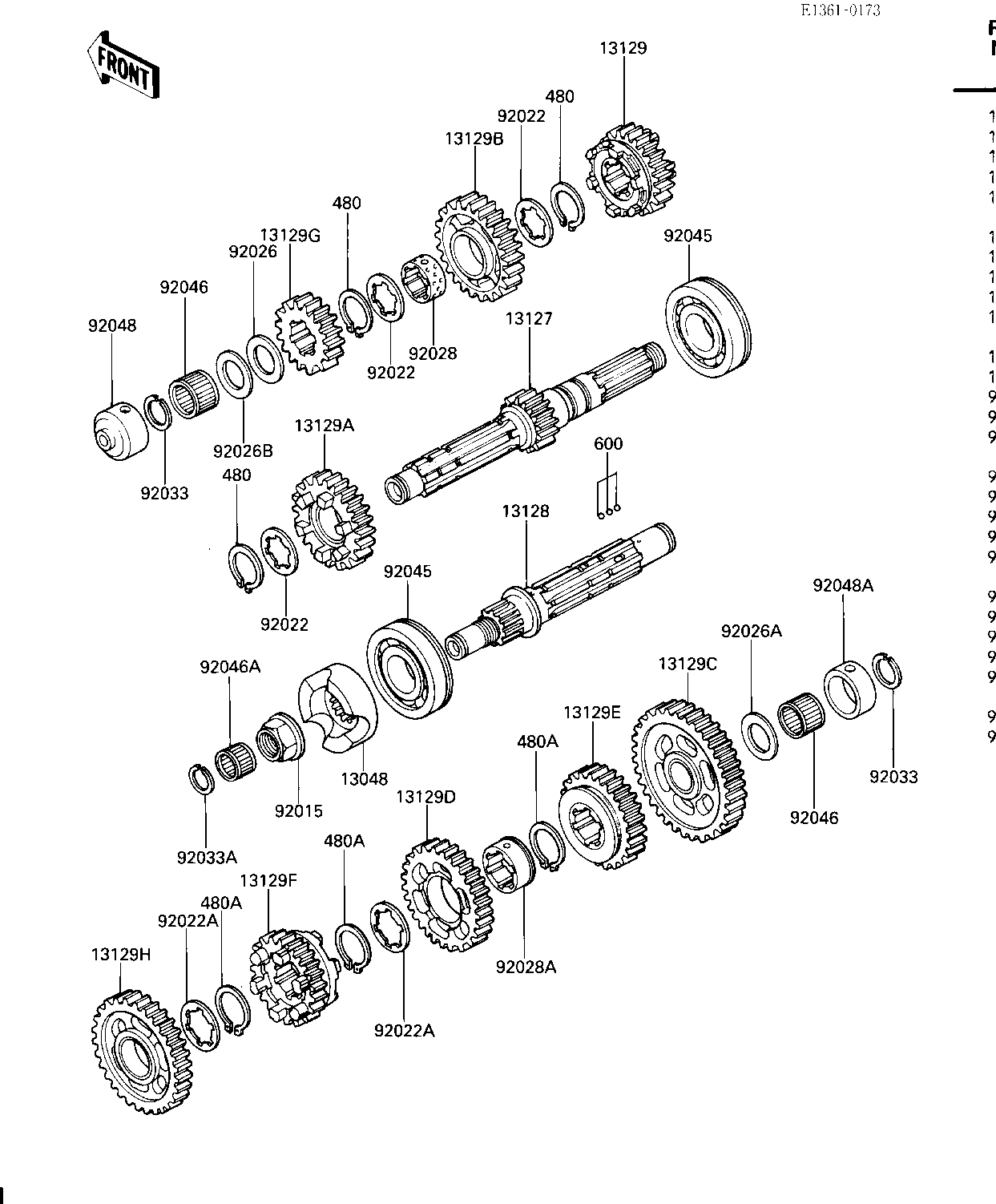

1986 Voyager XII - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1066 1
SHAFT-TRANSMISSION IN 13127 13127-1133 1
SHAFT-TRANSMISSION OU 13128 13128-1130 1
GEAR,INPUT 3RD,24T 13129 13129-1765 1
GEAR,INPUT 4TH,28T 13129A 13129-1766 1
GEAR,INPUT TOP,31T 13129B 13129-1767 1
GEAR,OUTPUT LOW,41T 13129C 13129-1768 1
GEAR,OUTPUT 3RD,32T 13129D 13129-1770 1
GEAR,OUTPUT 4TH,29T 13129E 13129-1771 1
GEAR,OUTPUT TOP,26T 13129F 13129-1772 1
GEAR-TRANSMISSION SPU 13129G 13129-1836 1
GEAR-TRANSMISSION SPU 13129H 13129-1837 1
NUT 92015 92015-1543 1
WASHER,THRUST,26MM 92022 92024-042 3
WASHER THRUST,28MM 92022A 92024-043 2
SPACER (I.D=22 O.D=35 92026 92026-1020 1
SPACER,22X35.5X2.4 92026A 92026-1225 1
SPACER,22X35.5X1.8 92026B 92026-1226 1
BUSHING,TOP GEAR 92028 92028-1124 1
BUSHING 92028A 92028-1403 1
CIRCLIP,25MM 92033 92033-025 2
RING-SNAP 92033A 92033-1208 1
BEARING-BALL 92045 92045-1197 2
BEARING,PK223013.8 92046 92046-031 2
BEARING-NEEDLE,K18242 92046A 92046-1154 1
RACE,INPUT SHAFT 92048 92048-1052 1
RACE,30X38X15 92048A 92048-1053 1
CIRCLIP 28MM 480 480J2800 3
CIRCLIP 480A 480J2900 3
BALL STEEL 5/32' 600 600A0500 3
