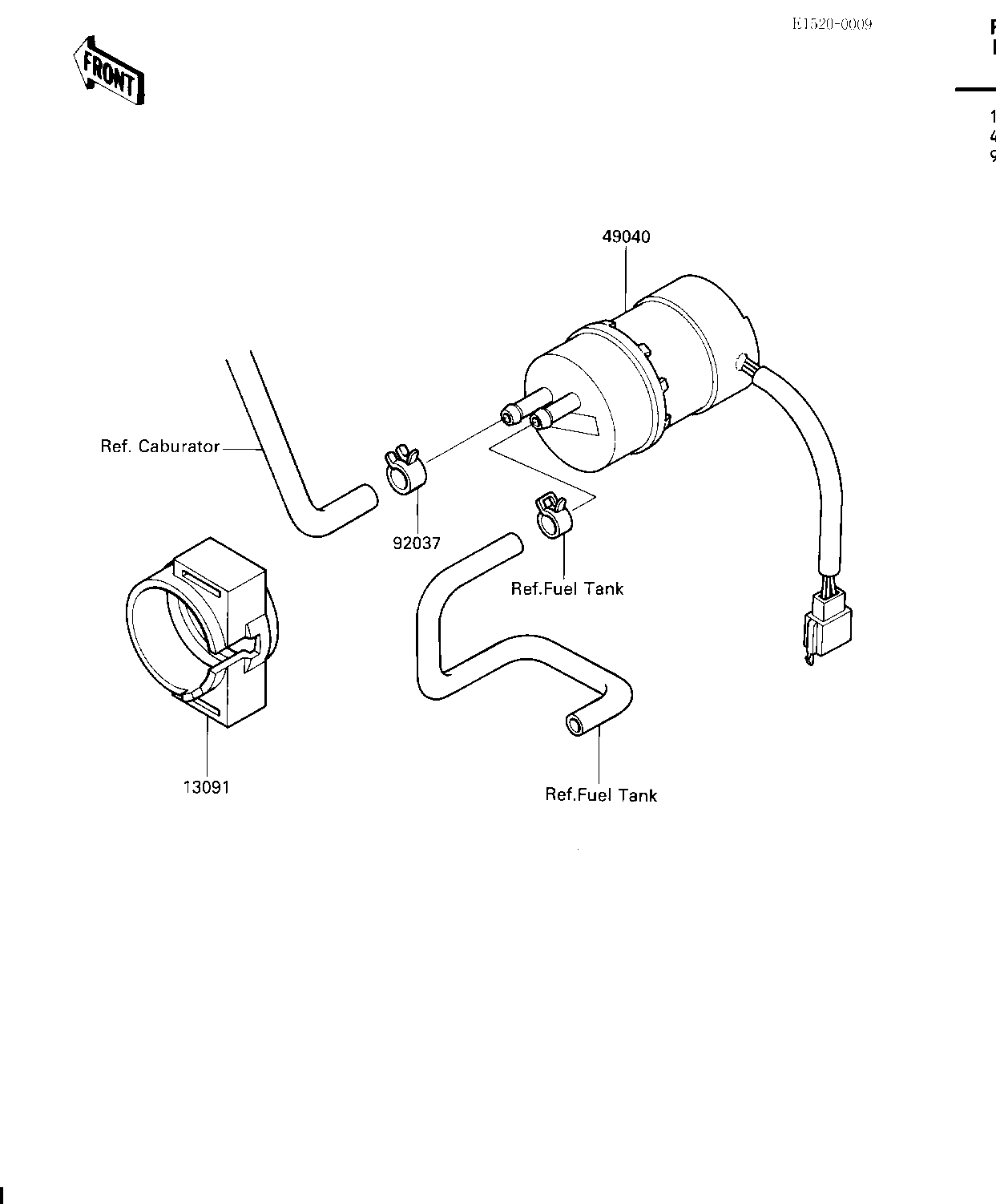

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1512 1
PUMP-FUEL 49040 49040-1054 1
CLAMP,TUBE 92037 92037-1505 1
