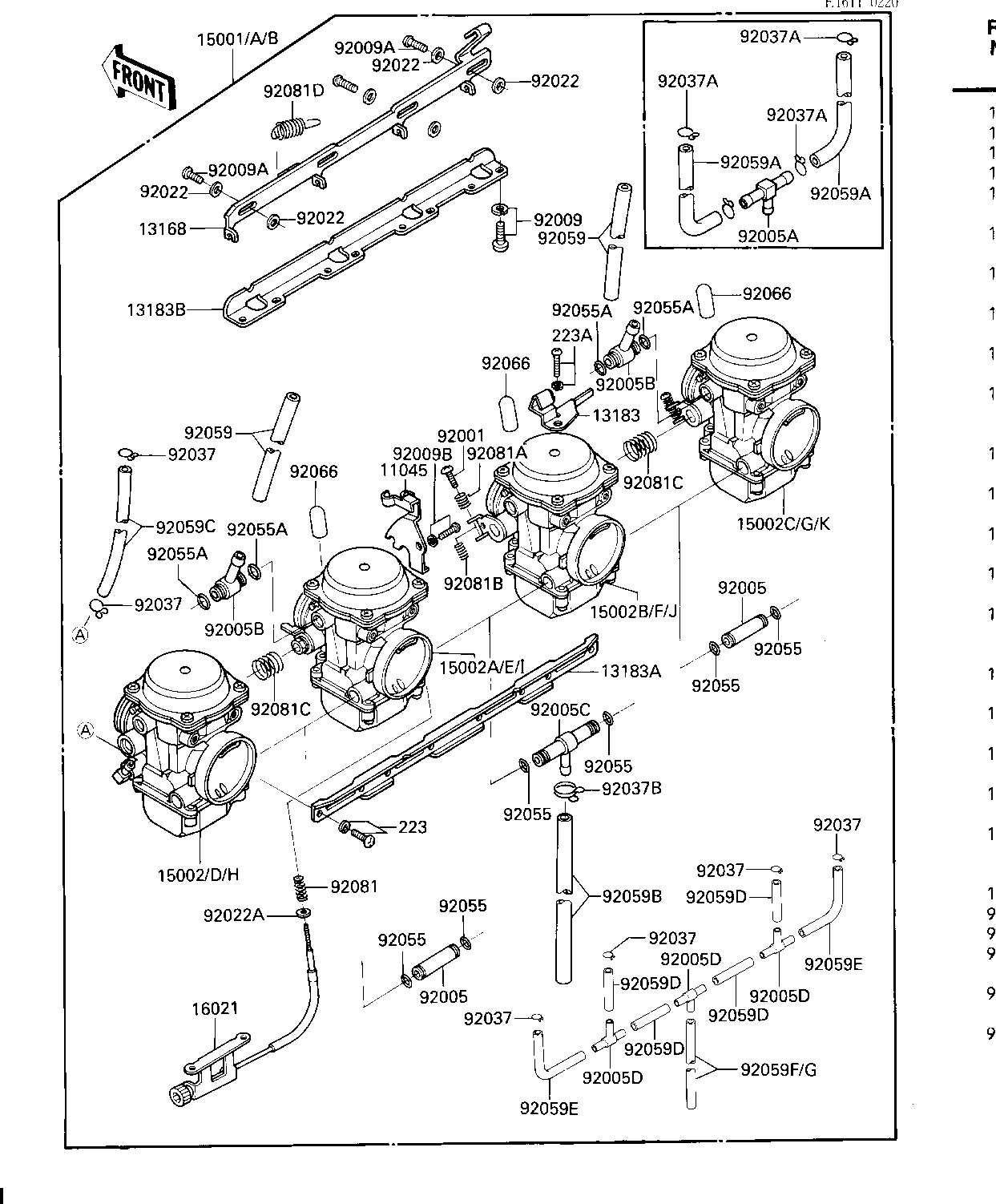

1986 Voyager XII - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABL 11045 11045-1312 1
LEVER,STARTER 13168 13168-1337 1
PLATE 13183 13183-1033 1
PLATE,CARBURTOR STAY, 13183A 13183-1049 1
PLATE,CARBURTOR STAY, 13183B 13183-1050 1
CARBURETOR-ASSY 15001 15001-1212 1 US
CARBURETOR-ASSY (Canada) 15001A 15001-1224 1 CN
CARBURETOR-ASSY 15001B 15001-1225 1 CA
CARBURETOR,LH,OUTSIDE 15002 15002-1370 1 US
CARBURETOR,LH,INSIDE 15002A 15002-1371 1 US
CARBURETOR,RH,INSIDE 15002B 15002-1372 1 US
CARBURETOR,RH,OUTSIDE 15002C 15002-1373 1 US
CARBURETOR,LH,OUTSIDE 15002D 15002-1374 1 CA
CARBURETOR,LH,INSIDE 15002E 15002-1375 1 CA
CARBURETOR,RH,INSIDE 15002F 15002-1376 1 CA
CARBURETOR,RH,OUTSIDE 15002G 15002-1377 1 CA
CARBURETOR,LH,OUTSIDE (Canada) 15002H 15002-1378 1 CN
CARBURETOR,LH,INSIDE (Canada) 15002I 15002-1379 1 CN
CARBURETOR,RH,INSIDE (Canada) 15002J 15002-1380 1 CN
CARBURETOR,RH,OUTSIDE (Canada) 15002K 15002-1381 1 CN
SCREW-THROTTLE STOP 16021 16021-1101 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,I-TYPE 92005 92005-1109 2
FITTING,T-TYPE 92005A 92005-1135 1 CA
FITTING,T-TYPE 92005B 92005-1125 2
FITTING,T-TYPE 92005C 92005-1148 1
FITTING,T-TYPE 92005D 92005-1151 3
SCREW,6X16 92009 92009-1129 8
SCREW 92009A 92009-1262 3
SCREW 92009B 92009-1365 1
WASHER,6.1X11X0.8,POL 92022 92022-1199 6
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLAMP,TUBE,OVERFLOW 92037 92037-1142 6
CLAMP,TUBE 92037A 92037-1682 4 CA
CLAMP,FUEL TUBE 92037B 92037-1826 1
"O" RING 92055 92055-1004 6
RING-O,FUEL FITTING 92055A 92055-1223 4
TUBE,6.5X9.5X260 92059 92059-1598 2 CN,US
TUBE 92059A 92059-1635 2 CA
TUBE,5.3X10.5X210 92059B 92190-1134 1
TUBE,3X7X420 92059C 92059-1741 1
TUBE,3.5X6.5X40 92059D 92059-1746 4
TUBE,3.5X6.5X90 92059E 92059-1747 2
TUBE,3.5X6.5X420 92059F 92059-1748 1 CN,US
TUBE,3.5X6.5X220 92059G 92059-1749 1 CA
RUBBER PLUG 92066 92068-006 2 US
SPRING,THROTTLE STOP 92081 92081-1617 1
SPRING,THROTTLE ADJUS 92081A 92081-1620 3
SPRING,THROTTLE ADJUS 92081B 92081-1621 3
SPRING,THROTTLE ADJUS 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1913 1
SCREW-PAN-WS-CROS 223 223C0510 8
SCREW-PAN-WS-CROS 223A 223D0410 1
