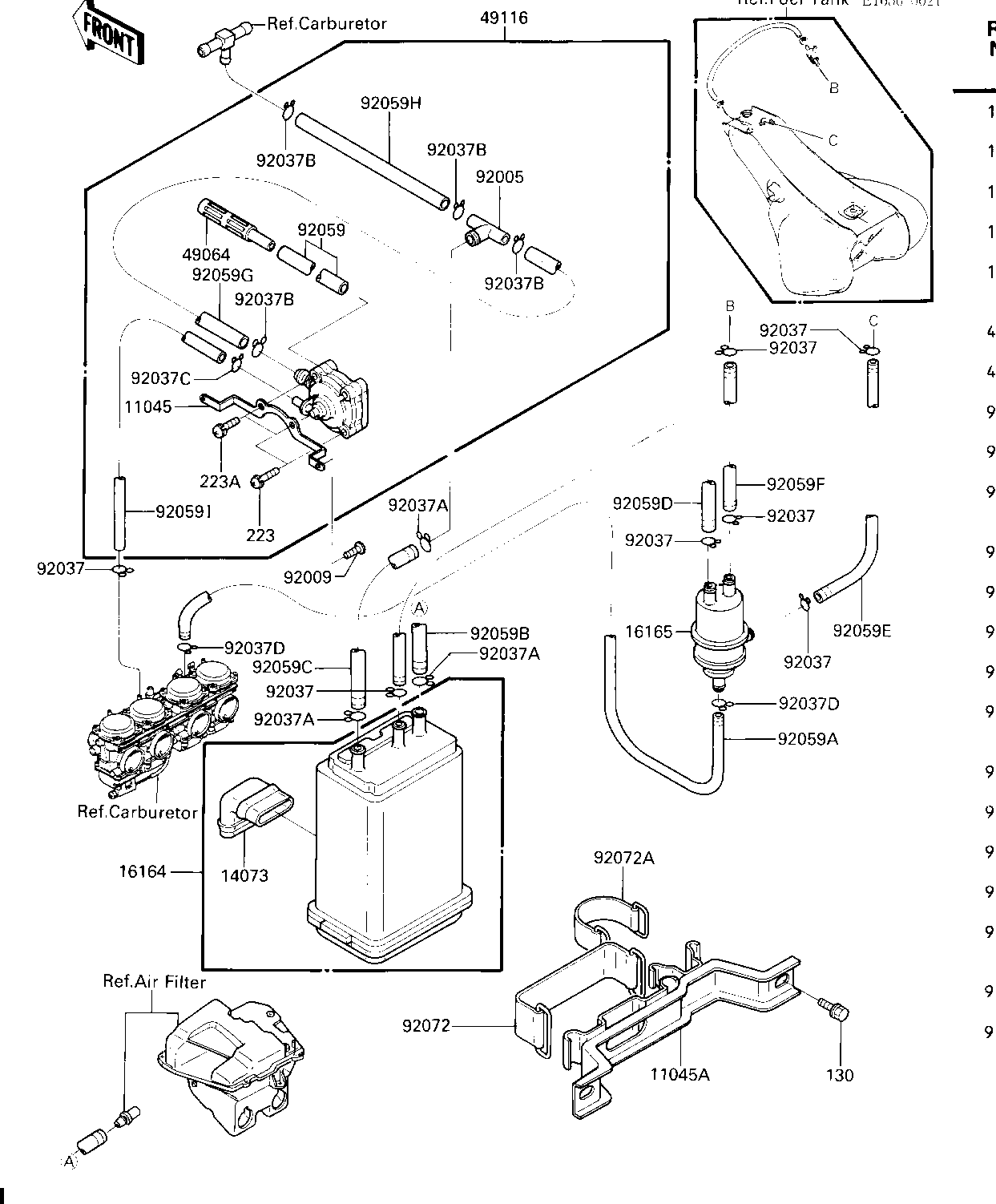

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,VALVE | 11045 | 11045-1278 | 1 | CA | |
| BRACKET | 11045A | 11045-1819 | 1 | CA | |
| DUCT,CANISTER | 14073 | 14073-1178 | 1 | CA | |
| CANISTER | 16164 | 16164-1066 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FILTER-AIR,VALVE | 49064 | 49064-1051 | 1 | CA | |
| VALVE-ASSY | 49116 | 49116-1066 | 1 | CA | |
| FITTING,T-TYPE | 92005 | 92005-1135 | 1 | CA | |
| SCREW,TAPPING,5X16 | 92009 | 92009-1264 | 1 | CA | |
| CLAMP FUEL PIPE | 92037 | 92037-010 | 7 | CA | |
| CLAMP-HOSE | 92037A | 92037-1104 | 3 | CA | |
| CLAMP,TUBE | 92037B | 92037-1682 | 4 | CA | |
| CLAMP,TUBE | 92037C | 92037-1396 | 1 | CA | |
| CLAMP | 92037D | 92037-1712 | 2 | CA | |
| TUBE | 92059 | 92059-1635 | 1 | CA | |
| TUBE,4X9X850,WHITE | 92059A | 92059-1678 | 1 | CA | |
| TUBE,7X12X700,GREEN | 92059B | 92059-1679 | 1 | CA | |
| TUBE,7X12X700,YELLOW | 92059C | 92059-1680 | 1 | CA | |
| TUBE,5X8X240,BLUE | 92059D | 92059-1681 | 1 | CA | |
| TUBE,5X8X900,RED | 92059E | 92059-1682 | 1 | CA | |
| TUBE,5X8X900,BLUE | 92059F | 92059-1683 | 1 | CA | |
| TUBE,7X11X180 | 92059G | 92059-1737 | 1 | CA | |
| TUBE,7X11X45 | 92059H | 92059-1738 | 1 | CA | |
| TUBE,3.5X7.5X300 | 92059I | 92059-1739 | 1 | CA | |
| BAND BATTERY | 92072 | 92072-006 | 1 | CA | |
| BAND,TOOL | 92072A | 92072-066 | 1 | CA | |
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | CA | |
| SCREW-PAN-WS-CROS | 223 | 223C0416 | 2 | CA | |
| CASCREW-PAN-WS-CROS | 223A | 223C0418 | 2 |
| BRACKET,VALVE | |
| REF # | 11045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| BRACKET | |
| REF # | 11045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| DUCT,CANISTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| FILTER-AIR,VALVE | |
| REF # | 49064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| VALVE-ASSY | |
| REF # | 49116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| SCREW,TAPPING,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| CLAMP FUEL PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | CA |
| CLAMP-HOSE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | CA |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | CA |
| CLAMP,TUBE | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| CLAMP | |
| REF # | 92037D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | CA |
| TUBE | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,4X9X850,WHITE | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,7X12X700,GREEN | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,7X12X700,YELLOW | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,5X8X240,BLUE | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,5X8X900,RED | |
| REF # | 92059E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,5X8X900,BLUE | |
| REF # | 92059F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,7X11X180 | |
| REF # | 92059G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,7X11X45 | |
| REF # | 92059H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| TUBE,3.5X7.5X300 | |
| REF # | 92059I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| BAND BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| BAND,TOOL | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CA |
| BOLT,FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | CA |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | CA |
| CASCREW-PAN-WS-CROS | |
| REF # | 223A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
