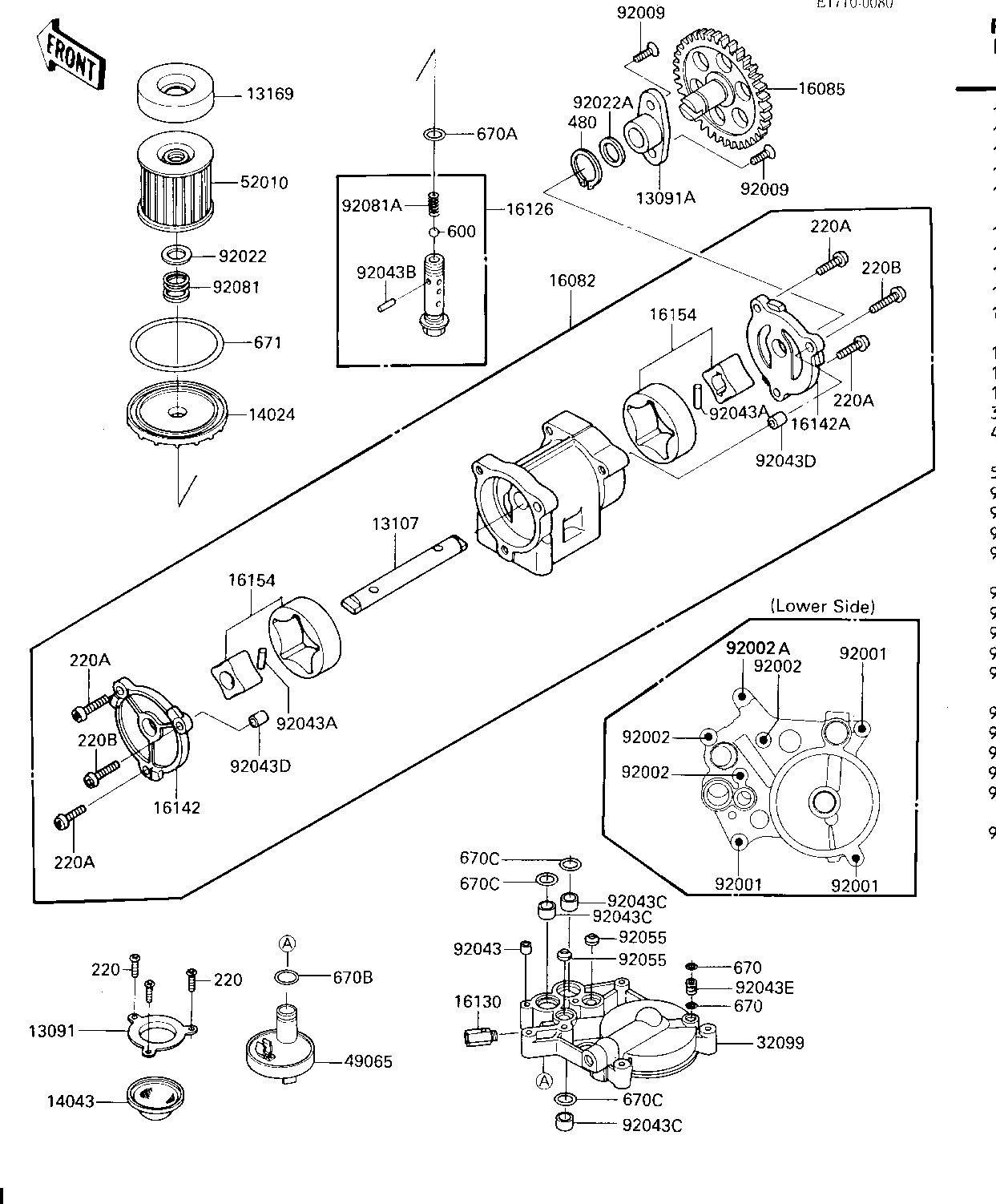

1986 Voyager XII - OIL PUMP/OIL FILTER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,OIL FILTER 13091 13091-1274 1
HOLDER,PUMP GEAR 13091A 13091-1333 1
SHAFT 13107 13107-1191 1
PLATE,OIL FILTER 13169 13169-1313 1
COVER,OIL FILTER 14024 16101-004 1
STRAINER,OIL 14043 16111-003 1
PUMP-ASSY-OIL 16082 16082-1076 1
GEAR,OIL PUMP,35T 16085 16085-1153 1
VALVE,OIL FILTER 16126 16126-1108 1
RELEAF VALVE ASSY 16130 16130-1001 1
COVER-PUMP 16142 16142-1070 1
COVER-PUMP 16142A 16142-1071 1
ROTOR-PUMP 16154 16154-1062 2
CASE,OIL FILTER 32099 32099-1082 1
FILTER-OIL 49065 49065-1055 1
FILTER,OIL 52010 16099-003 1
BOLT,FLANGED,6X38 92001 92001-1105 3
BOLT,6X38 92002 92002-1431 3
BOLT,6X43 92002A 92002-1881 1
SCREW,6X16 92009 92009-1360 2
WASHER,20.5X30X1.0 92022 92022-1012 1
WASHER,14X20X1 92022A 92022-1495 1
PIN-DOWEL 92043 92042-007 1
PIN,DOWEL 5X17.8 92043A 92043-1061 2
SPRING PIN 92043B 92043-111 1
PIN,18X20X12 92043C 92043-1213 3
PIN,DOWEL,8X10 92043D 92043-1302 2
PIN 92043E 92043-1304 1
"O" RING 92055 92055-077 2
SPRING,OIL FILTER 92081 92081-1018 1
SPRING 92081A 92081-109 1
SCREW PAN HEAD 6X12 220 220B0612 3
SCREW PAN HEAD 6X18 220A 220B0618 3
SCREW PAN HEAD 6X25 220B 220B0625 2
CIRCLIP 14MM 480 480J1400 1
BALL STEEL 3/8' 600 600A1200 1
"O" RING,5MM 670 670B1505 2
"0" RING,16MM 670A 670B2016 1
"0" RING,18MM 670B 670B2018 1
O RING 670C 670D2020 3
"0" RING,90MM 671 671B2590 1
