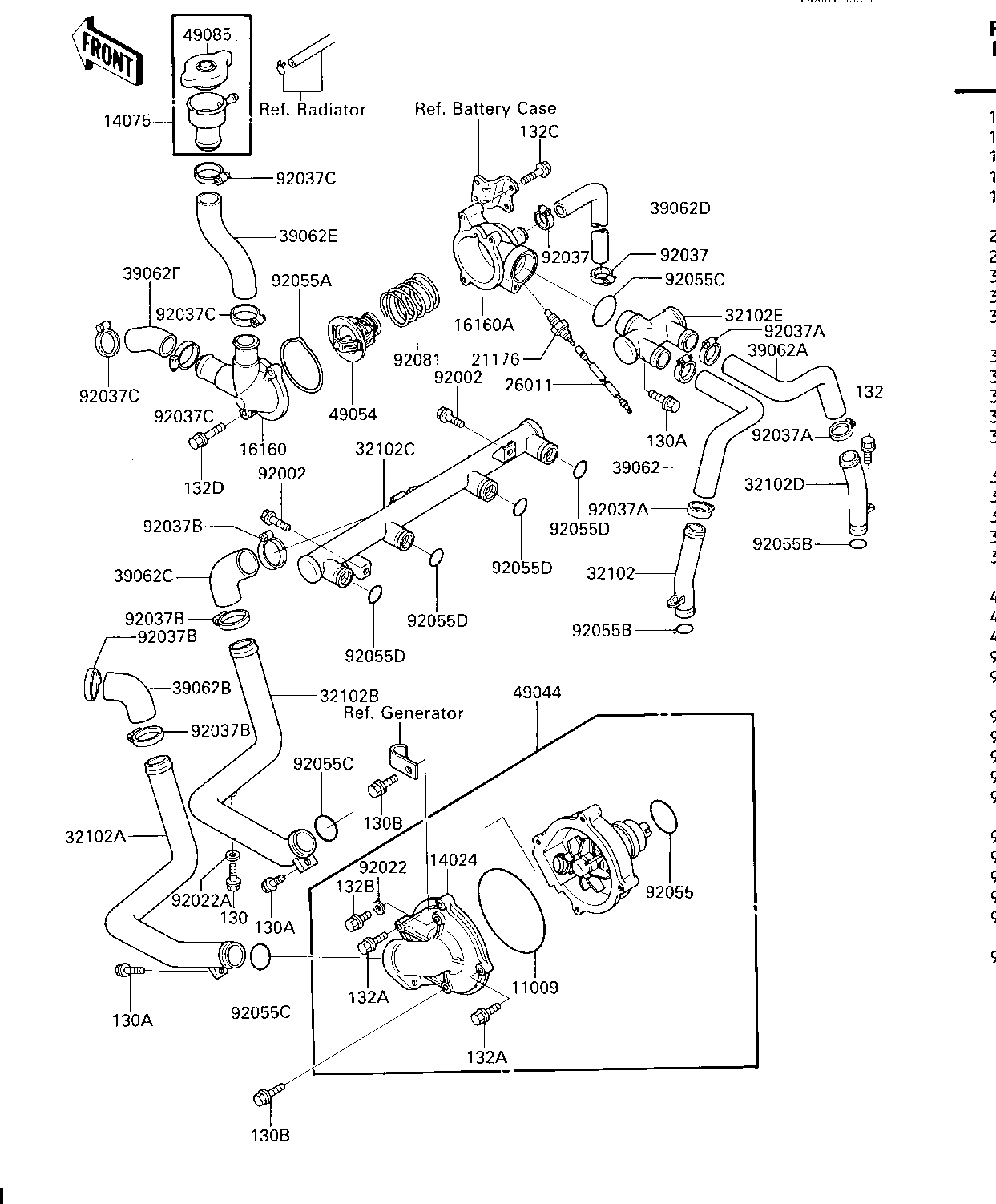

1986 Voyager XII - WATER PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,WATER PUMP 11009 11009-1621 1
COVER,WATER PUMP 14024 14024-1348 1
CAP-ASSY 14075 14075-1063 1
BODY,THERMOSTAT,UPP 16160 16160-1103 1
BODY,THERMOSTAT,LWR 16160A 16160-1104 1
SENSOR,WATER 21176 21176-1054 1
WIRE-LEAD,SENSOR 26011 26011-1364 1
PIPE,HEAD,LH 32102 32033-1933 1
PIPE,HOSE-PUMP 32102A 32033-1934 1
PIPE,PUMP-HOSE 32102B 32033-1935 1
PIPE,CYLINDER 32102C 32033-1936 1
PIPE,HEAD,RH 32102D 32033-1968 1
PIPE,THERMOSTAT 32102E 32033-1990 1
HOSE-COOLING,LH 39062 39062-1149 1
HOSE-COOLING,RH 39062A 39062-1150 1
HOSE-COOLING,RADIATOR 39062B 39062-1151 1
HOSE-COOLING,PIPE-PIP 39062C 39062-1152 1
HOSE-COOLING,PY-PASS 39062D 39062-1153 1
HOSE-COOLING,THERMO-C 39062E 39062-1154 1
HOSE-COOLING,THERMO-R 39062F 39062-1174 1
PUMP-WATER 49044 49044-1056 1
THERMOSTAT 49054 49054-1001 1
CAP-ASSY-PRESSURE 49085 49085-1053 1
BOLT 92002 92002-1350 2
WASHER,6MM 92022 92022-1627 1
WASHER,PLAIN 92022A 92022-304 1
CLAMP,COOLING HOSE 92037 92170-1032 2
CLAMP,COOLING HOSE 92037A 92170-1034 4
CLAMP,COOLING HOSE 92037B 92170-1036 4
CLAMP,COOLING HOSE 92037C 92037-1985 4
RING-O,33MM 92055 92055-1266 1
RING-O,THERMOSTAT 92055A 92055-1324 1
RING-O,18.8X2.4 92055B 92055-1325 2
RING-O,27.6X3.2 92055C 92055-1328 3
RING-O,18.54X2.6 92055D 92055-1350 4
SPRING,THERMOSTAT 92081 92081-1104 1
BOLT,FLANGED,6X10 130 130N0610 1
BOLT-FLANGED,6X12 130A 130N0612 3
BOLT-FLANGED 130B 130N0645 2
BOLT-FLANGED-SMALL 132 132E0612 2
BOLT-FLANGED-SMALL 132A 132E0622 2
BOLT-FLANGED-SMALL 132B 132J0612 1
BOLT-FLANGED-SMALL 132C 132J0614 2
BOLT-FLANGED-SMALL 132D 132J0620 2
