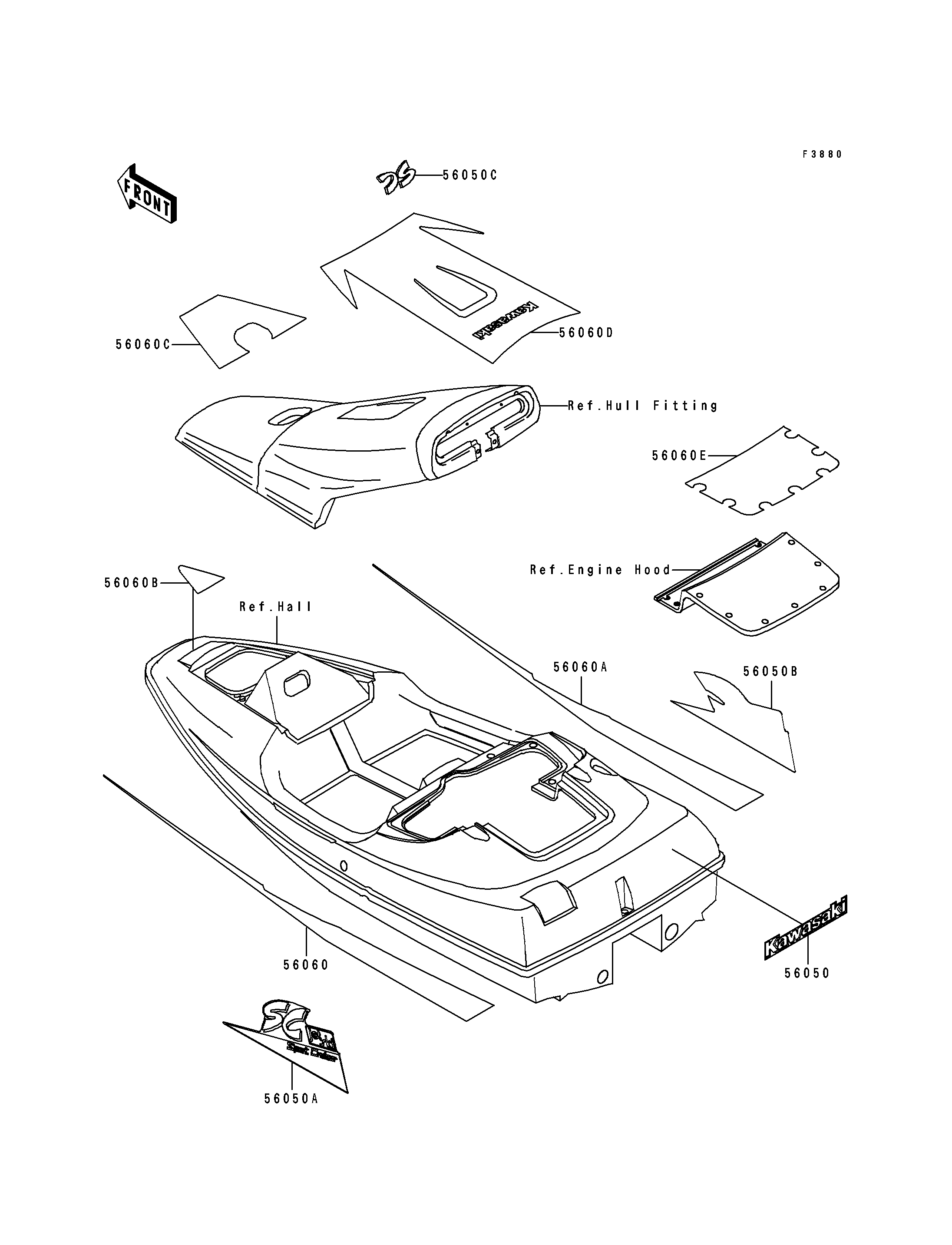

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56050 56050-1618 1
MARK,DECK,LH,SC.JET SKI 56050A 56050-1619 1
MARK,DECK,RH,SC.JET SKI 56050B 56050-1620 1
MARK,SC 56050C 56050-1621 1
PATTERN,DECK,LH 56060 56060-1320 1
PATTERN,DECK,RH 56060A 56060-1321 1
PATTERN,DECK,FR 56060B 56060-1322 1
PATTERN,STORAGE COVER 56060C 56060-1323 1
PATTERN,HANDLE TOWER COVER 56060D 56060-1324 1
PATTERN,ENGINE HOOD 56060E 56060-1325 1
