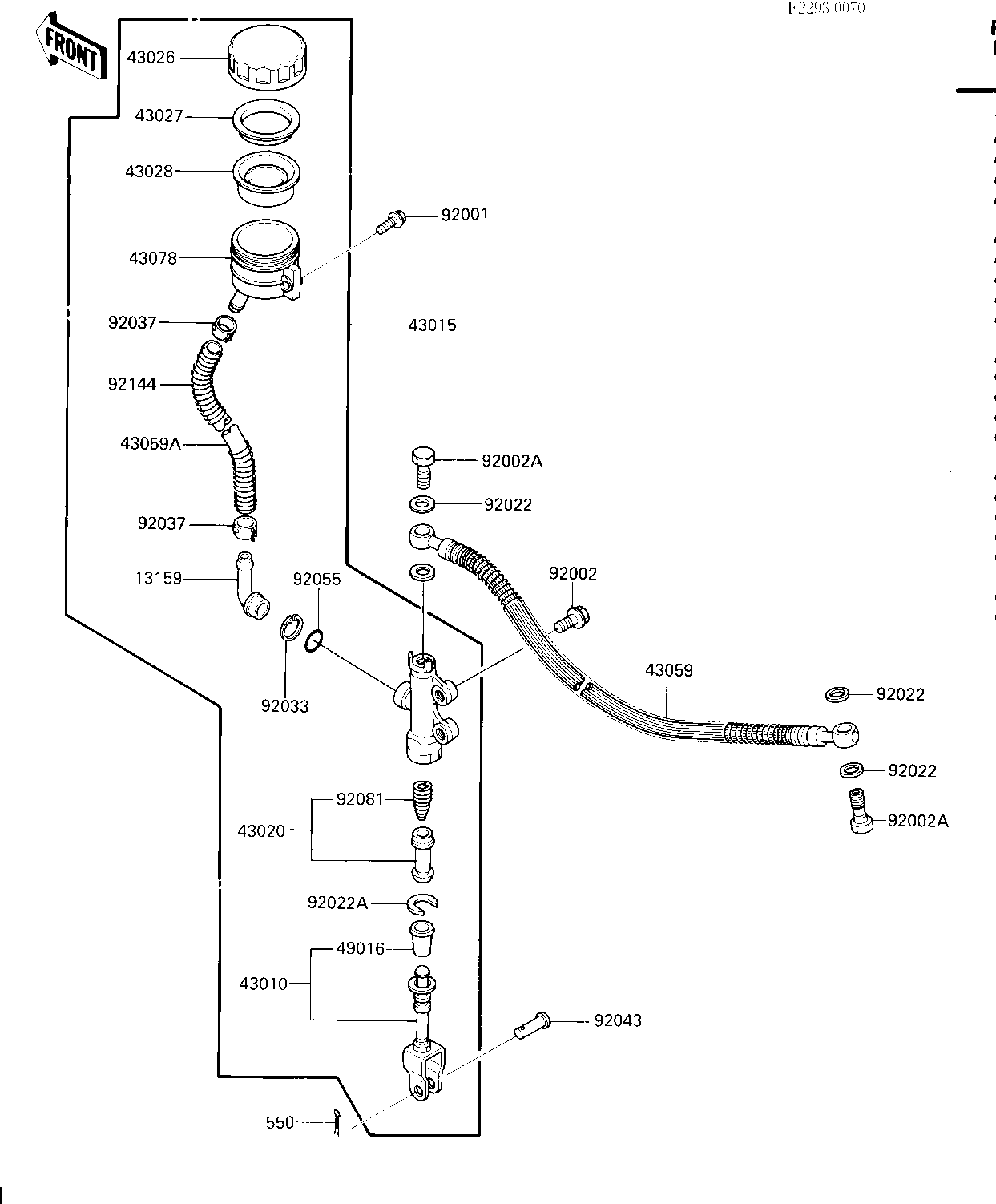

1986 Voyager XII - REAR MASTER CYLINDER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR,RR MASTER C | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1054 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1311 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR | 43059 | 43059-1328 | 1 | ||
HOSE-BRAKE,RR MASTER | 43059A | 43059-1368 | 1 | ||
RESERVOIR,RR MASTER C | 43078 | 43078-1082 | 1 | ||
COVER-SEAL | 49016 | 49016-1103 | 1 | ||
BOLT,6X16 | 92001 | 92001-1860 | 1 | ||
BOLT,SOCKET,8X30 | 92002 | 92002-1558 | 2 | ||
BOLT,OIL,L=23 | 92002A | 92002-1888 | 2 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
WASHER | 92022A | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP | 92037 | 92037-1547 | 2 | ||
PIN | 92043 | 92043-1013 | 1 | ||
RING-O | 92055 | 92055-1251 | 1 | ||
SPRING | 92081 | 92081-1737 | 1 | ||
SPRING,BRAKE HOSE | 92144 | 92144-1057 | 1 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
CONNECTOR,RR MASTER C | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER, | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR | |
REF # | 43059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR MASTER | |
REF # | 43059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR,RR MASTER C | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X30 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20.5MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE HOSE | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN COTTER 2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
