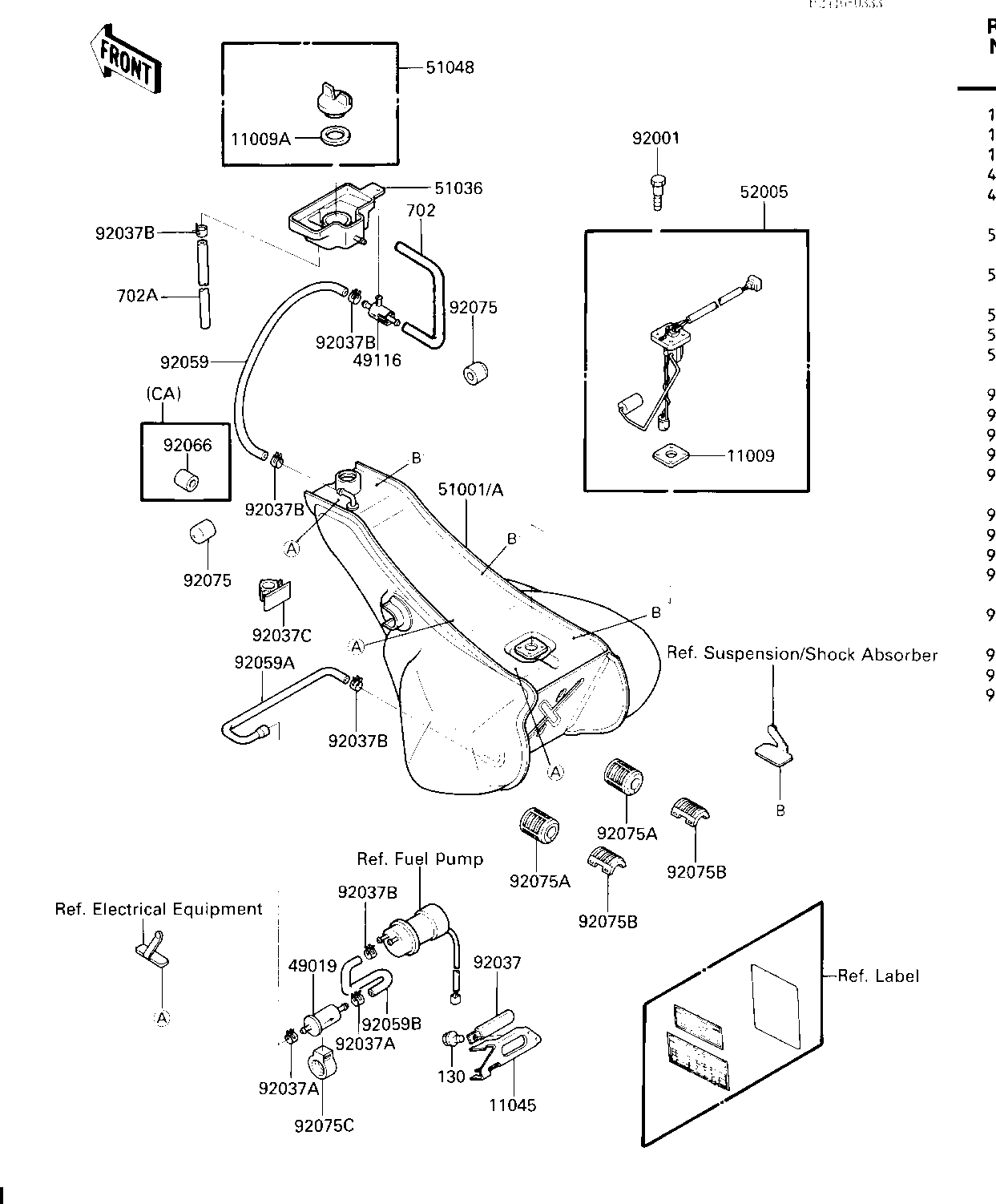

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL GAUGE | 11009 | 11009-1656 | 1 | ||
GASKET,FUEL TANK | 11009A | 11009-1326 | 1 | ||
BRACKET,FUEL FILTER | 11045 | 11044-1743 | 1 | ||
FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
VALVE-ASSY,BREATHER | 49116 | 49116-1063 | 1 | ||
TANK-COMP-FUEL | 51001 | 51001-1233 | 1 | CN,US | |
TANK-COMP-FUEL | 51001A | 51001-1239 | 1 | CA | |
CUP,FUEL TANK | 51036 | 51036-1054 | 1 | ||
CAP-ASSY-TANK,FUEL | 51048 | 51048-1070 | 1 | ||
GAUGE,FUEL | 52005 | 52005-1076 | 1 | ||
BOLT,FUEL GAGE | 92001 | 92001-1705 | 4 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 1 | ||
CLAMP | 92037A | 92037-1181 | 2 | ||
CLAMP,TUBE | 92037B | 92037-1505 | 5 | ||
CLAMP | 92037C | 92037-1794 | 2 | ||
TUBE,6.5X11.5X260 | 92059 | 92059-1392 | 1 | ||
TUBE | 92059A | 92059-1724 | 1 | ||
TUBE | 92059B | 92059-1725 | 1 | ||
RUBBER PLUG | 92066 | 92068-006 | 1 | CA | |
DAMPER RUBBER | 92075 | 92075-044 | 2 | ||
DAMPER RUBBER | 92075A | 92075-084 | 2 | ||
DAMPER,FUEL TANK | 92075B | 92075-1806 | 2 | ||
DAMPER | 92075C | 92075-1853 | 1 | ||
BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
TUBE,5X1430 | 702 | 702A051430 | 1 | CN,US | |
TUBE-BREATHER (BULK) | 702A | 702A071000 | 1 |
GASKET,FUEL GAUGE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,FUEL TANK | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,FUEL FILTER | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL | |
REF # | 49019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY,BREATHER | |
REF # | 49116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL | |
REF # | 51001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN,US |
TANK-COMP-FUEL | |
REF # | 51001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
CUP,FUEL TANK | |
REF # | 51036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-TANK,FUEL | |
REF # | 51048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GAUGE,FUEL | |
REF # | 52005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FUEL GAGE | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,6.5X11.5X260 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RUBBER PLUG | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
DAMPER RUBBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,5X1430 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN,US |
TUBE-BREATHER (BULK) | |
REF # | 702A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
