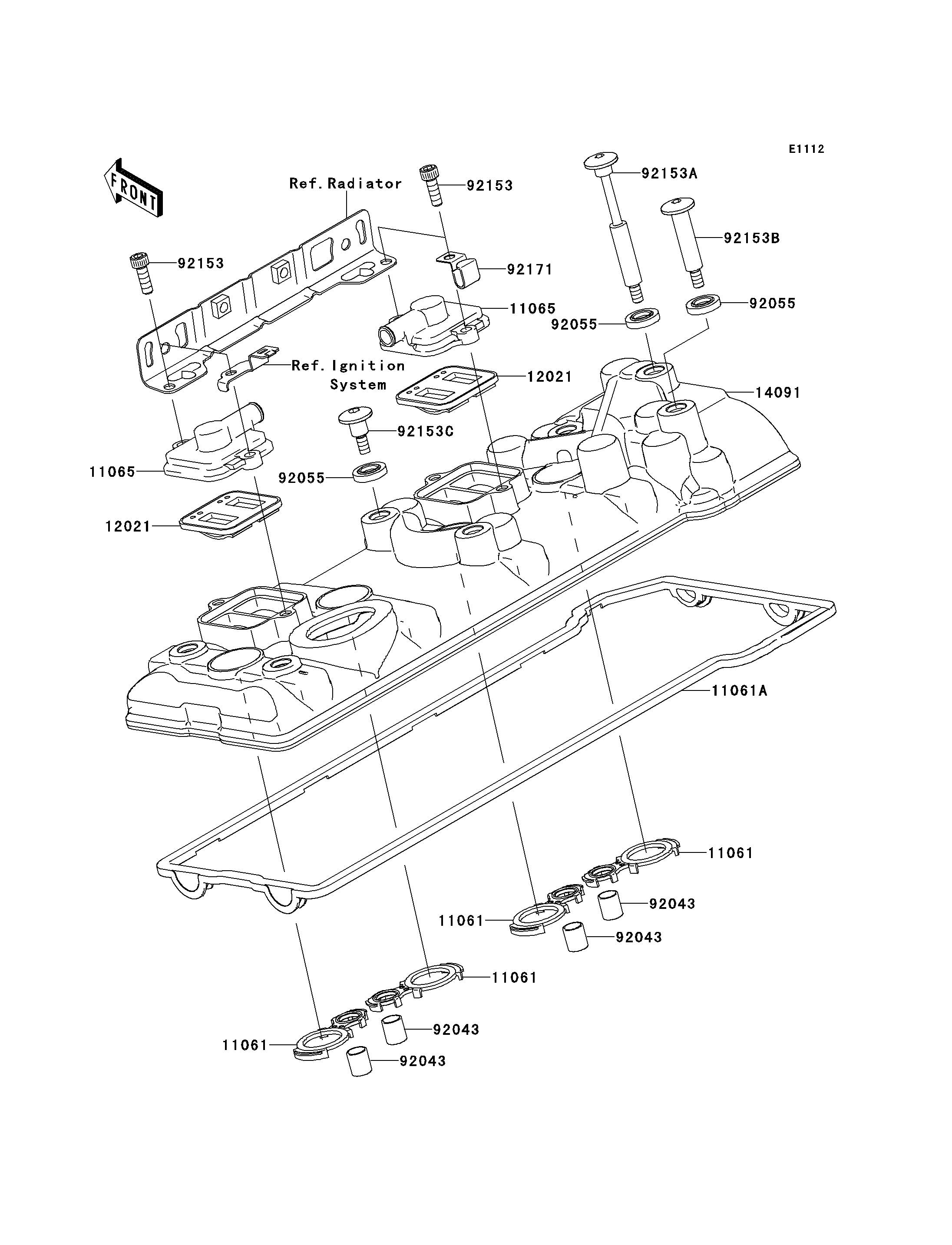

2008 Concours™ 14 - Cylinder Head Cover
11061
11061
11061
11061
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92055
92055
92153
92153
92153A
92153B
92153C
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD HOLE | 11061 | 11061-0196 | 4 | ||
| GASKET,HEAD COVER | 11061A | 11061-0263 | 1 | ||
| CAP | 11065 | 11065-1247 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-1130 | 2 | ||
| COVER,HEAD | 14091 | 14091-0634 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O | 92055 | 92055-0143 | 7 | ||
| BOLT,SOCKET,6X18 | 92153 | 92153-1559 | 4 | ||
| BOLT,SOCKET,6X90 | 92153A | 92153-1715 | 1 | ||
| BOLT,SOCKET,6X50.8 | 92153B | 92153-1753 | 1 | ||
| BOLT,SOCKET,6X22.5 | 92153C | 92153-1779 | 5 | ||
| CLAMP | 92171 | 92171-0766 | 1 |
