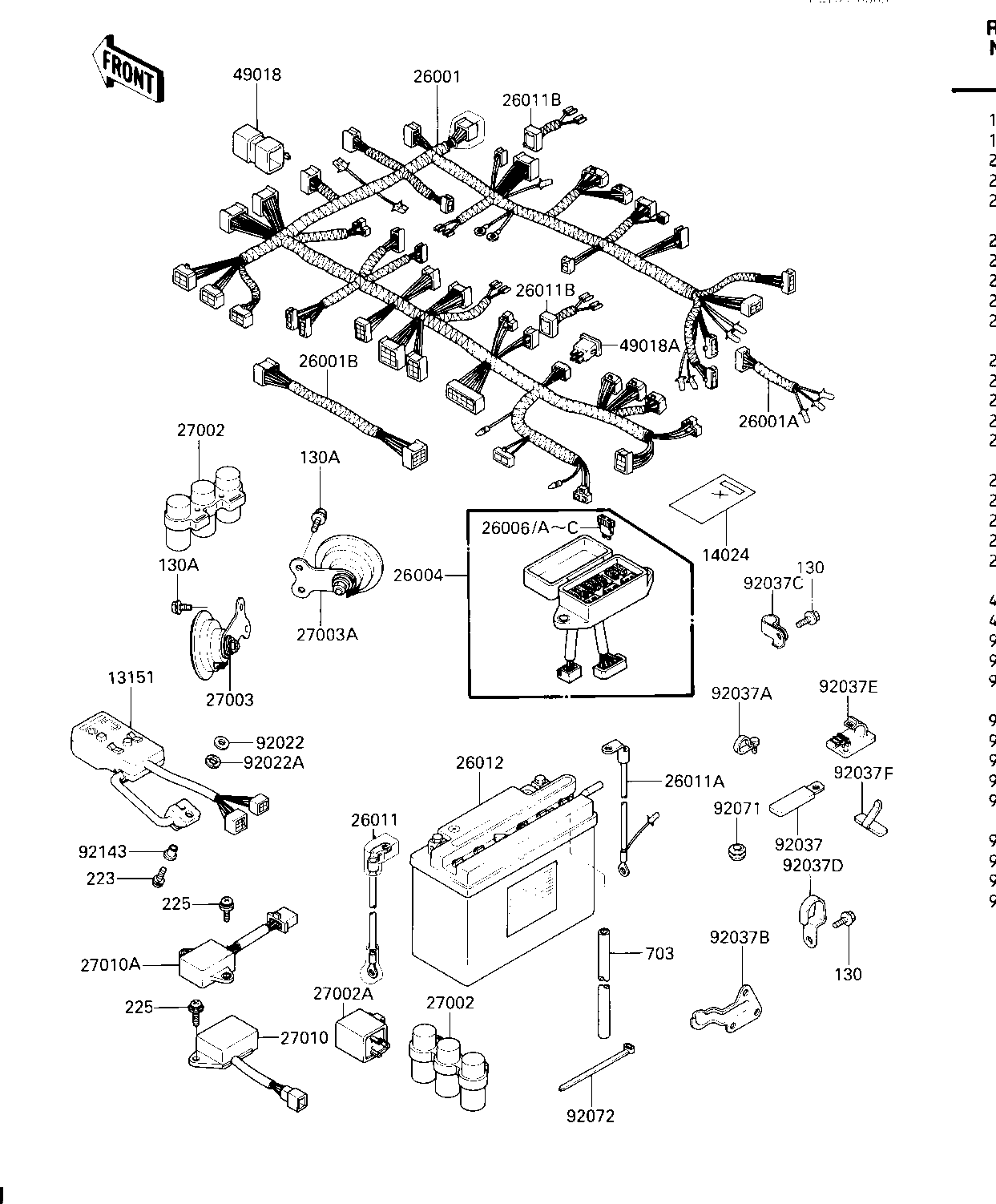

1986 Voyager XII - CHASSIS ELECTRICAL EQUIPMENT
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH-COMP | 13151 | 13151-1063 | 1 | ||
COVER | 14024 | 14024-1352 | 1 | ||
HARNESS,MAIN | 26001 | 26001-1756 | 1 | ||
HARNESS,REAR FENDER | 26001A | 26001-1760 | 1 | ||
HARNESS,RADIO | 26001B | 26001-1789 | 1 | ||
FUSE-ASSY | 26004 | 26004-1065 | 1 | ||
FUSE,30A-G | 26006 | 26006-1006 | 2 | ||
FUSE,10A-R | 26006A | 26006-1007 | 6 | ||
FUSE,3A-P | 26006B | 26006-1060 | 1 | ||
FUSE | 26006C | 26006-1061 | 2 | ||
WIRE-LEAD,BATTERY(+) | 26011 | 26011-1339 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011A | 26011-1340 | 1 | ||
WIRE-LEAD | 26011B | 26011-1365 | 2 | ||
YUA BAT SY50-N18L-AT | 26012 | 26012-1124 | 1 | ||
RELAY-ASSY | 27002 | 27002-1052 | 2 | ||
RELAY-ASSY,TURN SIGNA | 27002A | 27002-1060 | 1 | ||
HORN,350HZ,LH | 27003 | 27003-1239 | 1 | ||
HORN,415HZ,RH | 27003A | 27003-1240 | 1 | ||
SWITCH,RESERVE LIGHTI | 27010 | 27010-1069 | 1 | ||
SWITCH,TURN SIGNAL OP | 27010A | 27010-1166 | 1 | ||
DIODE | 49018 | 49018-1052 | 1 | ||
DIODE,HEAD LAMP | 49018A | 49018-1054 | 1 | ||
WASHER 6.5X20X1.6T | 92022 | 92022-125 | 1 | ||
WASHER | 92022A | 92022-1828 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 6 | ||
CLAMP | 92037A | 92037-1163 | 1 | ||
CLAMP | 92037B | 92037-1720 | 1 | ||
CLAMP,HOSE | 92037C | 92037-1727 | 1 | ||
CLAMP,HOSE | 92037D | 92037-1785 | 1 | ||
CLAMP | 92037E | 92037-1816 | 1 | ||
CLAMP | 92037F | 92037-1820 | 3 | ||
GROMMET | 92071 | 92071-024 | 3 | ||
BAND,L=185 | 92072 | 92072-1195 | 11 | ||
COLLAR | 92143 | 92143-1026 | 1 | ||
BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
BOLT-FLANGED,6X12 | 130A | 130C0612 | 4 | ||
SCREW-PAN-WS-CROS | 223 | 223C0620 | 1 | ||
SCREW,6X14 | 224 | 92009-1333 | 2 | ||
SCREW-PAN-WSP-CROS | 225 | 225B0620 | 4 | ||
TUBE-RUBBER,8X750 | 703 | 703A08750 | 1 |
