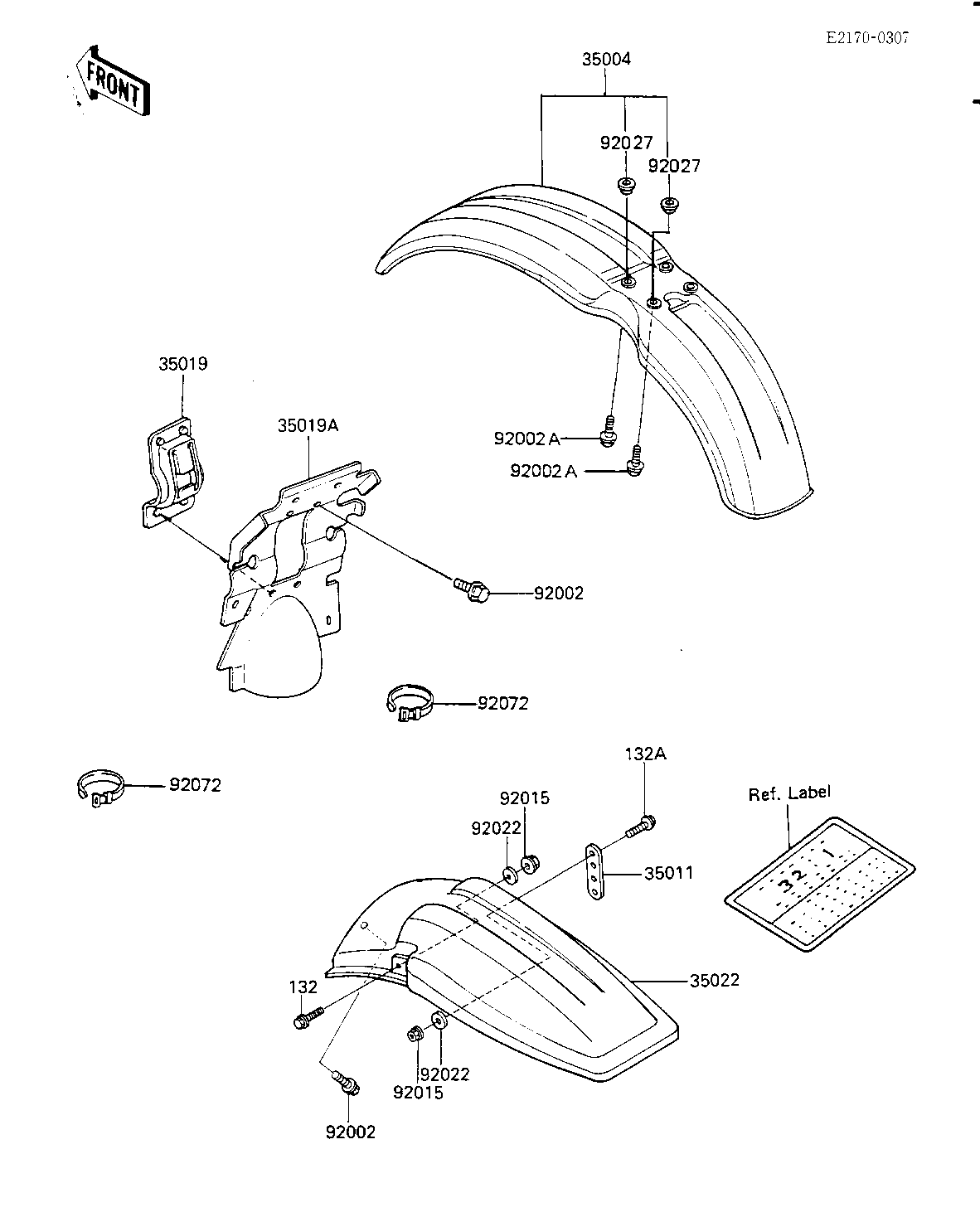

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1233-6W 1
STAY,MUFFLER 35011 35011-1261 1
FLAP,REAR FENDER 35019 35019-1129 1
FLAP,AIR FILTER 35019A 35019-1162 1
FENDER-COMP-REAR,L.GR 35022 35022-1217-6W 1
BOLT,6X14 92002 92150-1340 4
BOLT 92002A 92150-1506 4
NUT-6MM 92015 92015-1078 2
WASHER 6.5X20X1.6T 92022 92022-125 2
COLLAR,FRONT FENDER 92027 92027-1936 4
BAND,WIRING HARNESS 92072 92072-056 2
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0635 1
