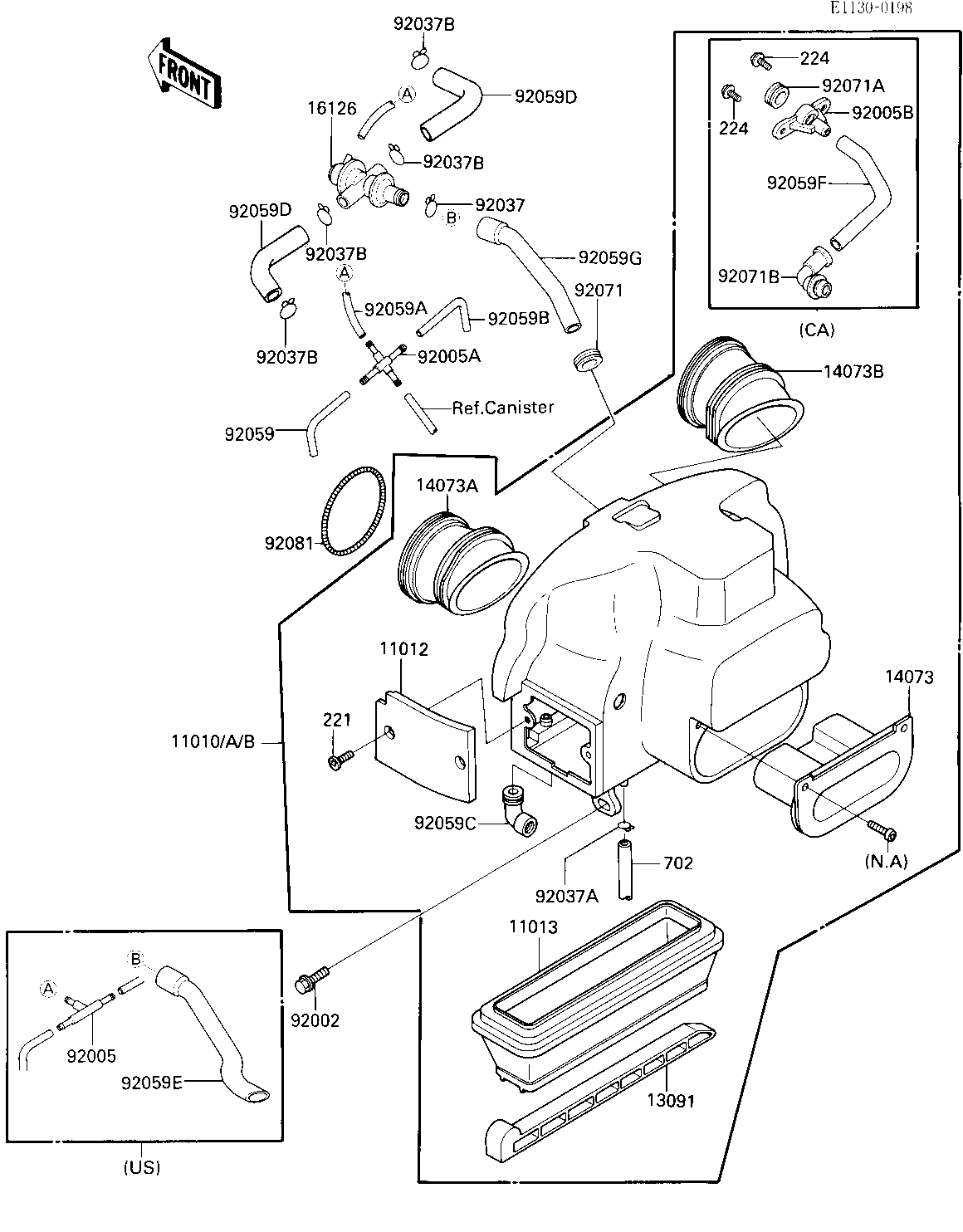

1986 Ninja® - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1212 1 US
FILTER-ASSY-AIR (Canada) 11010A 11010-1215 1 CN
FILTER-ASSY-AIR 11010B 11010-1269 1 CA
CAP,AIR FILTER 11012 11012-1373 1
ELEMENT-AIR FILTER 11013 11013-1112 1
HOLDER,ELEMENT 13091 13091-1277 1
DUCT,AIR INTAKE 14073 14073-1179 1
DUCT,#1,#3 14073A 14073-1273 2
DUCT,#2,#4 14073B 14073-1274 2
VALVE,AIR SWITCH 16126 16126-1144 1 CA,US
BOLT,6X16 92002 92001-1950 2
FITTING,TUBE 92005 92005-1017 1 US
FITTING,FUEL,X-TYPE 92005A 92005-1051 1 CA
FITTING 92005B 92005-1139 1 CA
CLAMP 92037 92037-1076 1 CA,US
CLAMP,CHAIN OILER 92037A 92037-147 1
CLAMP,BREATHER TUBE 92037B 92037-213 4 CA,US
TUBE,VACUUM,LONG 92059 92059-1162 1 CA,US
TUBE,VACUUM,LONG 92059A 92059-1162 1 CA,US
TUBE,4X9X80 92059B 92059-1365 1 CA,US
TUBE,BREATHER 92059C 92059-1391 1
TUBE 92059D 92059-1629 2 CA,US
TUBE 92059E 92059-1630 1 US
TUBE 92059F 92059-1640 1 CA
TUBE 92059G 92059-1648 1 CA
GROMMET,AIR FILTER 92071 92071-1042 1 CA,US
GROMMET,AIR FILTER 92071A 92071-1042 1 CA
GROMMET,AIR FILTER 92071B 92071-1133 1 CA
SPRING,COIL,BLACK 92081 92081-1457 4
SCREW-CSK-CROS 221 221C0616 2
SCREW-PAN-WP-CROS 224 224C0614 2 CA
TUBE-RUBBER 702 702A07480 1
