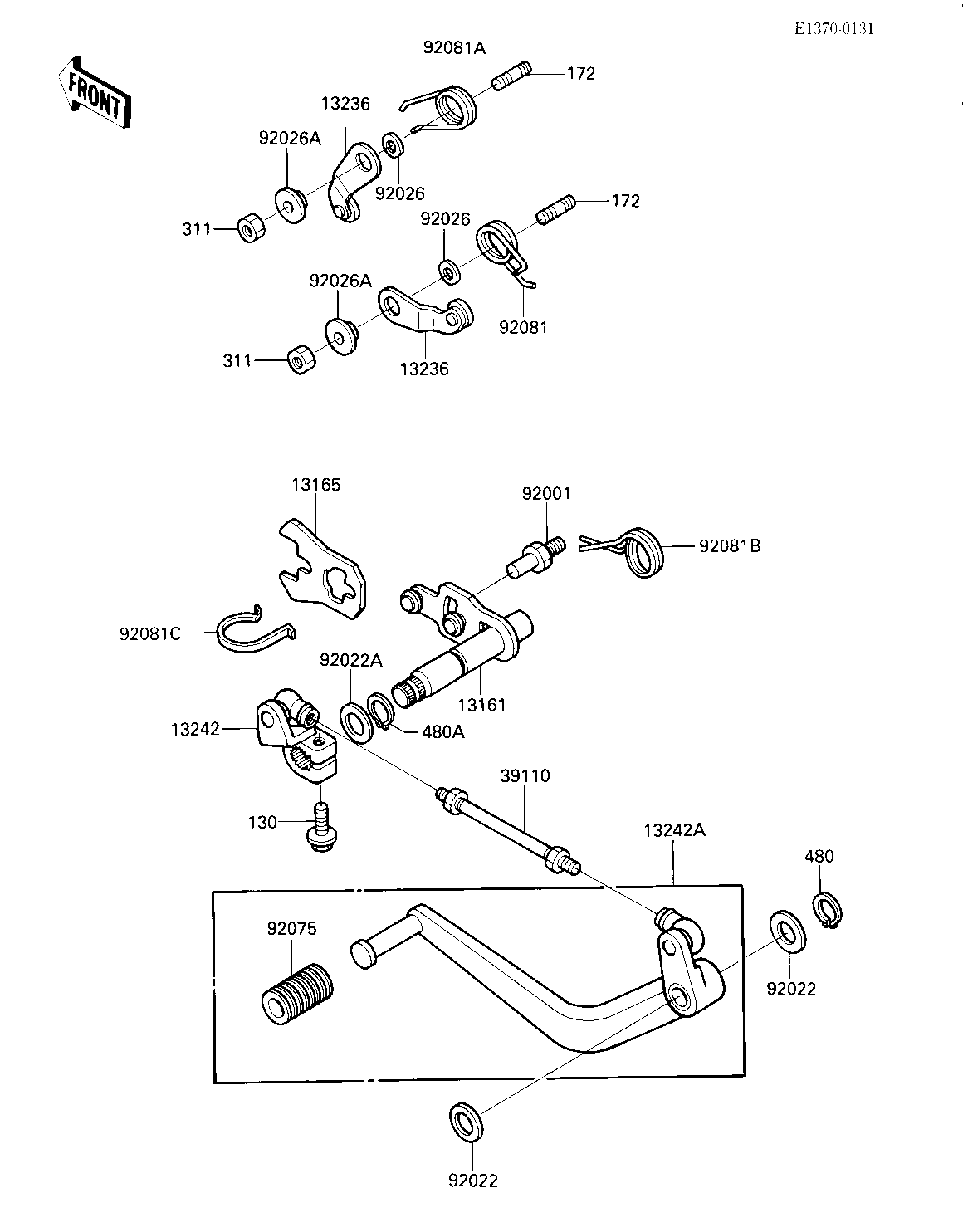

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP-CHANGE SHA | 13161 | 13161-1106 | 1 | ||
PAWL | 13165 | 13165-1120 | 1 | ||
LEVER-COMP,GEAR POSIT | 13236 | 13236-1103 | 2 | ||
LEVER-ASSY-CHANGE | 13242 | 13242-1161 | 1 | ||
LEVER-ASSY-CHANGE,PED | 13242A | 13242-1170 | 1 | ||
ROD-ASSY-TIE,CHANGE L | 39110 | 39110-1010 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1401 | 1 | ||
WASHER | 92022 | 92022-1593 | 2 | ||
WASHER | 92022A | 92022-1772 | 1 | ||
WASHER,THRUST | 92026 | 92026-094 | 2 | ||
SPACER | 92026A | 92026-1217 | 2 | ||
RUBBER CHANGE PEDAL | 92075 | 13157-004 | 1 | ||
SPRING | 92081 | 92081-1645 | 1 | ||
SPRING | 92081A | 92081-1742 | 1 | ||
SPRING,CHANGE PEDAL R | 92081B | 92081-1750 | 1 | ||
SPRING,CHANGE LEVER | 92081C | 92081-1829 | 1 | ||
BOLT-FLANGED,6X20,BLA | 130 | 130S0620 | 1 | ||
STUD 6X14 | 172 | 172G0614 | 2 | ||
NUT,6M/M | 311 | 311G0600 | 2 | ||
CIRCLIP 12MM | 480 | 480J1200 | 1 | ||
CIRCLIP,13MM | 480A | 480J1300 | 1 |
LEVER-COMP-CHANGE SHA | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAWL | |
REF # | 13165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,GEAR POSIT | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PED | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE,CHANGE L | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,THRUST | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RUBBER CHANGE PEDAL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL R | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE LEVER | |
REF # | 92081C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20,BLA | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD 6X14 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6M/M | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP 12MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP,13MM | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
