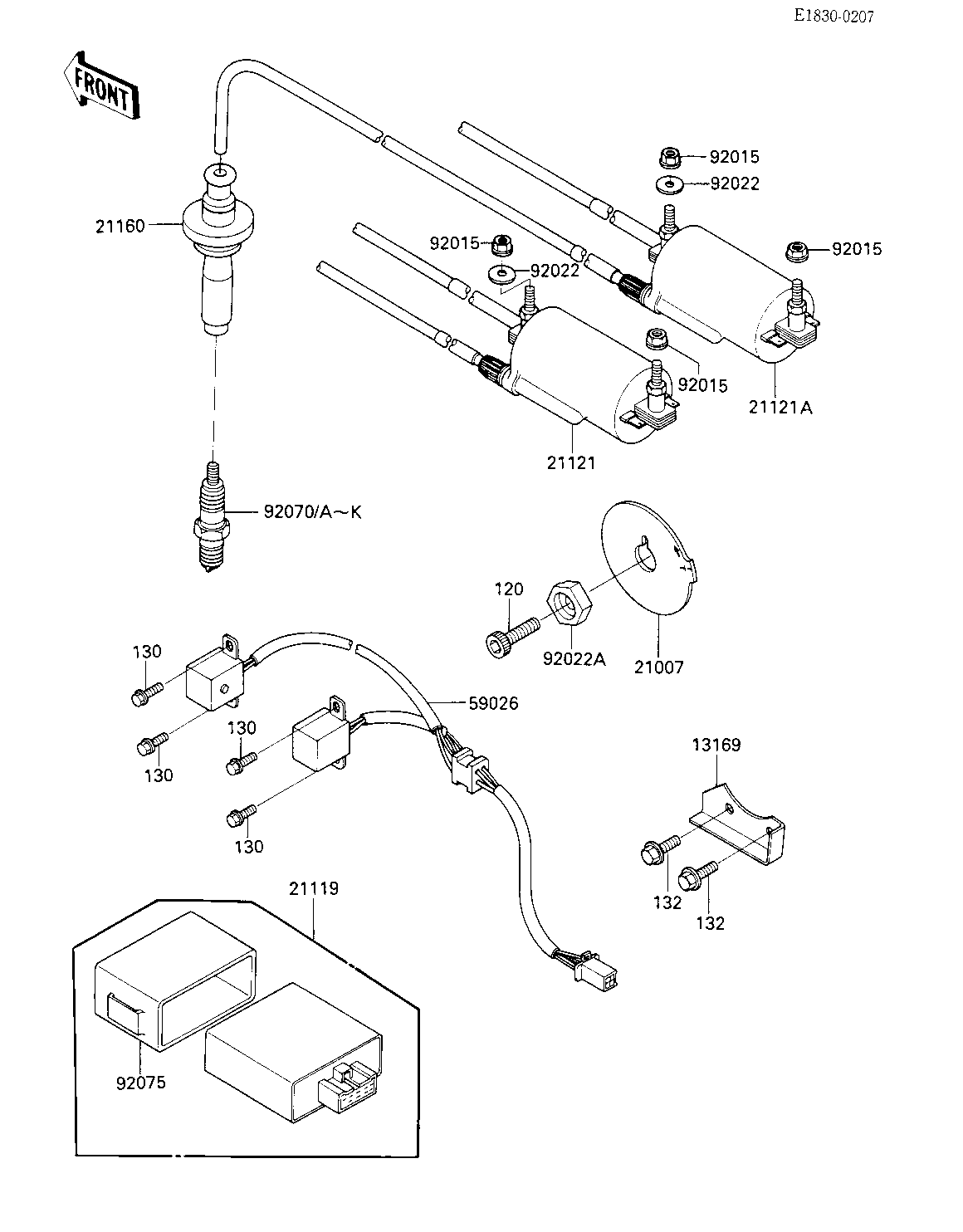

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,CHAIN GUIDE | 13169 | 13169-1748 | 1 | ||
ROTOR,PULSING COIL | 21007 | 21007-1109 | 1 | ||
IGNITER | 21119 | 21119-1110 | 1 | ||
COIL-IGNITION,#1 | 21121 | 21121-1110 | 1 | ||
COIL-IGNITION,#2 | 21121A | 21121-1111 | 1 | ||
CAP-ASSY-PLUG | 21160 | 21160-1065 | 4 | ||
COIL-PULSING | 59026 | 59026-1061 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 4 | ||
WASHER PLAIN | 92022 | 92022-024 | 2 | ||
WASHER,ROTOR | 92022A | 92200-1173 | 1 | ||
SPARK PLUG D8EA | 92070A | D8EA | 4 | CA,US | |
SPARK PLUG D7EA | 92070C | D7EA | 4 | CA,US | |
SPARK PLUG DR8ES (Canada) | 92070D | 92070-1019 | 4 | CN | |
UNAVAILABLE IN PRICE BOOK | 92070F | 92070-1034 | 4 | CA,US | |
SPARK PLUG DR7ES (Canada) | 92070I | 92070-1113 | 4 | CN | |
SPARK PLUG DR8ES-L (Canada) | 92070J | 92070-1116 | 4 | CN | |
DAMPER,IGNITER | 92075 | 92075-1592 | 1 | ||
BOLT,SOCKET,8X25 | 120 | 120P0825 | 1 | ||
BOLT-FLANGED | 130 | 130G0512 | 4 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 |
