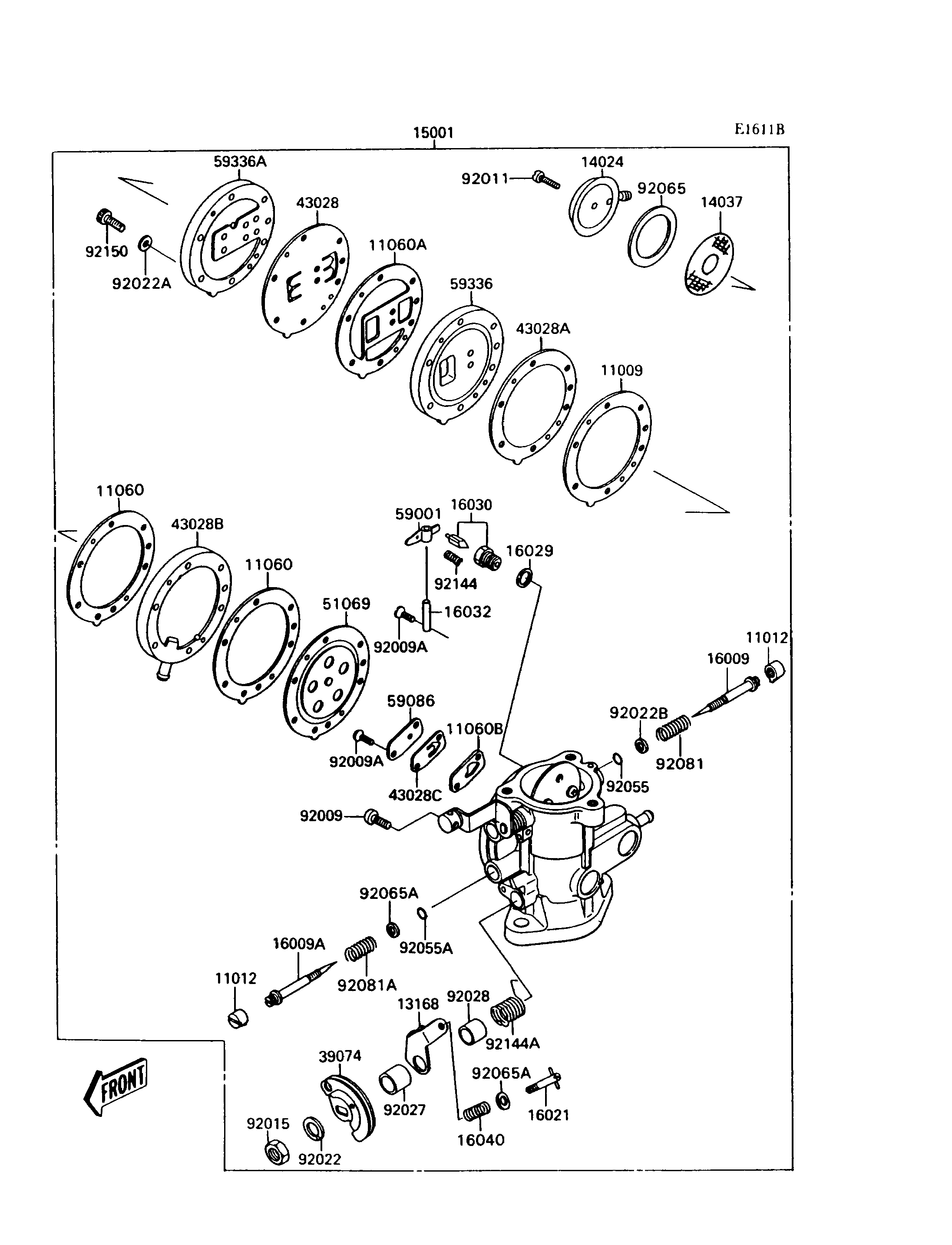

1989 300 SX - Carburetor(JS300-A3/A4/A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-3036 1
CAP,JET NEEDLE 11012 11012-3739 2
GASKET 11060 11060-3704 2
GASKET 11060A 11060-3705 1
GASKET 11060B 11060-3706 1
LEVER,THROTTLE SHAFT 13168 13168-3706 1
COVER,CARBURETOR 14024 14024-3721 1
SCREEN,CARBURETOR 14037 14037-504 1
CARBURETOR-ASSY 15001 15001-3755 1
NEEDLE-JET 16009 16009-3708 1
NEEDLE-JET,HIGH SPEED 16009A 16009-3709 1
SCREW-THROTTLE STOP 16021 16021-3703 1
GASKET,FLOAT VALVE SEAT 16029 16029-004 1
VALVE-FLOAT,#1.8 16030 16030-3702 1
PIN,FLOAT 16032 16032-006 1
SPRING,THROTTLE CABLE BRACKET 16040 16040-022 1
LEVER-ASSY-THROTTLE,THROTTLE 39074 39074-3704 1
DIAPHRAGM,PUMP,CARBURETOR 43028 43028-3001 1
DIAPHRAGM,PUMP,CARBURETOR 43028A 43028-3002 1
DIAPHRAGM,PUMP 43028B 43028-3701 1
DIAPHRAGM,CHECK SHEET 43028C 43028-3705 1
DIAPHRAGM,MAIN,CARB 51069 51069-502 1
PLATE 59001 59001-506 1
BRACKET,CARBURETOR 59086 59086-541 1
CASE-PUMP 59336 59336-3002 1
CASE-PUMP 59336A 59336-3003 1
SCREW,CHOKE LEVER 92009 92009-3705 1
SCREW 92009A 92009-3714 3
SCREW,4X12 92011 92011-510 1
NUT,THROTTLE LEVER 92015 92015-3717 1
WASHER,THROTTLE LEVER 92022 92022-3722 1
WASHER 92022A 92022-3758 6
WASHER 92022B 92022-537 1
COLLAR,THROTTLE SHAFT 92027 92027-3709 1
BUSHING,CARBURETOR 92028 92028-3730 1
RING-O 92055 92055-510 1
RING-O 92055A 92055-511 1
GASKET 92065 92065-526 1
GASKET 92065A 92065-528 2
SPRING 92081 92081-528 1
SPRING 92081A 92081-534 1
SPRING 92144 92144-3709 1
SPRING,THROTTLE SHAFT 92144A 92144-3715 1
BOLT 92150 92150-3757 6
