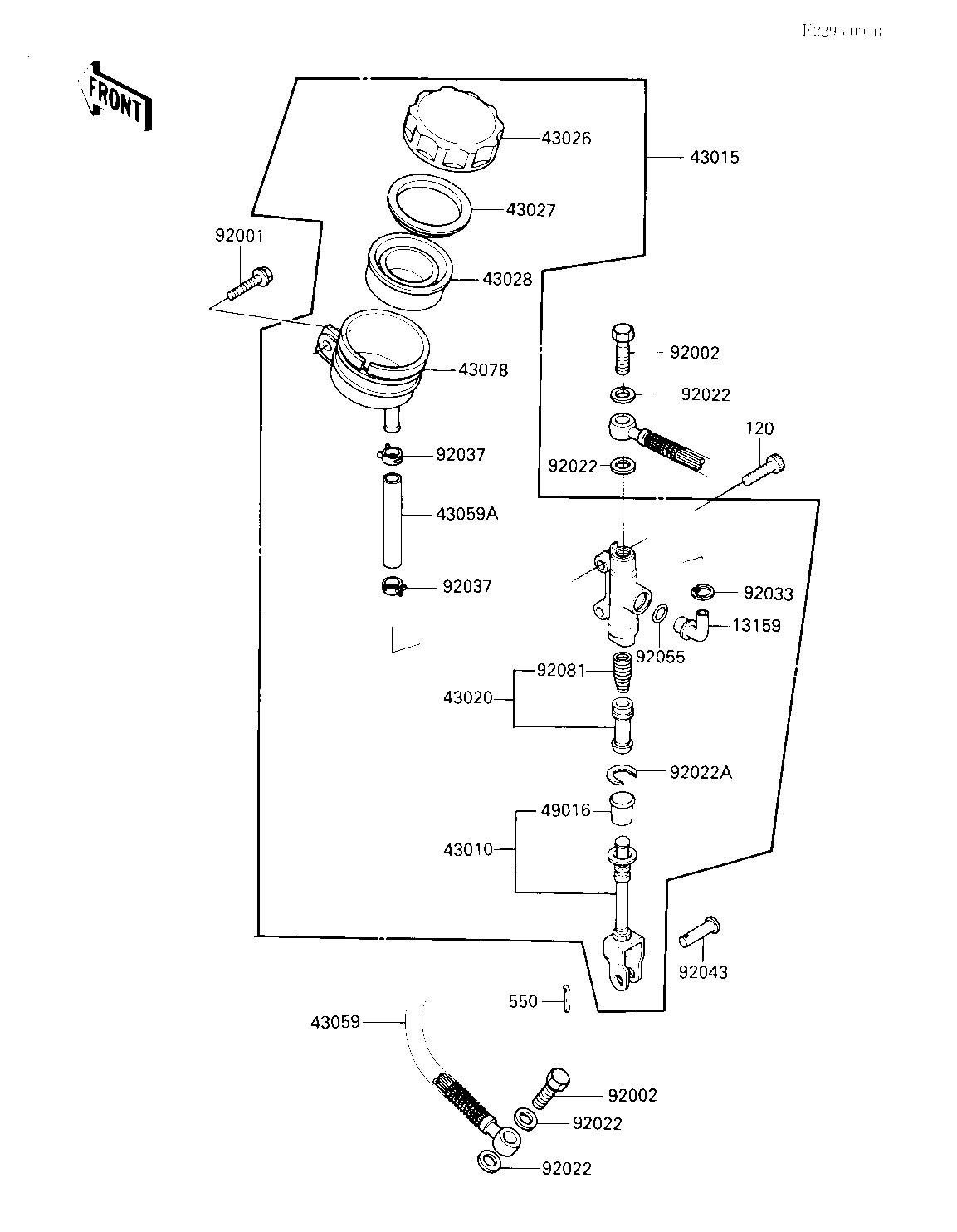

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR,RR MASTER C | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1053 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1261 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR,L=480 | 43059 | 43059-1261 | 1 | ||
HOSE-BRAKE | 43059A | 43059-1283 | 1 | ||
RESERVOIR | 43078 | 43078-1054 | 1 | ||
COVER-SEAL | 49016 | 49016-1103 | 1 | ||
BOLT,6X20 | 92001 | 92001-1460 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
WASHER | 92022A | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP | 92037 | 92037-1547 | 2 | ||
PIN | 92043 | 92043-1013 | 1 | ||
RING-O | 92055 | 92055-1251 | 1 | ||
SPRING | 92081 | 92081-1737 | 1 | ||
BOLT | 120 | 120P0835 | 2 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
