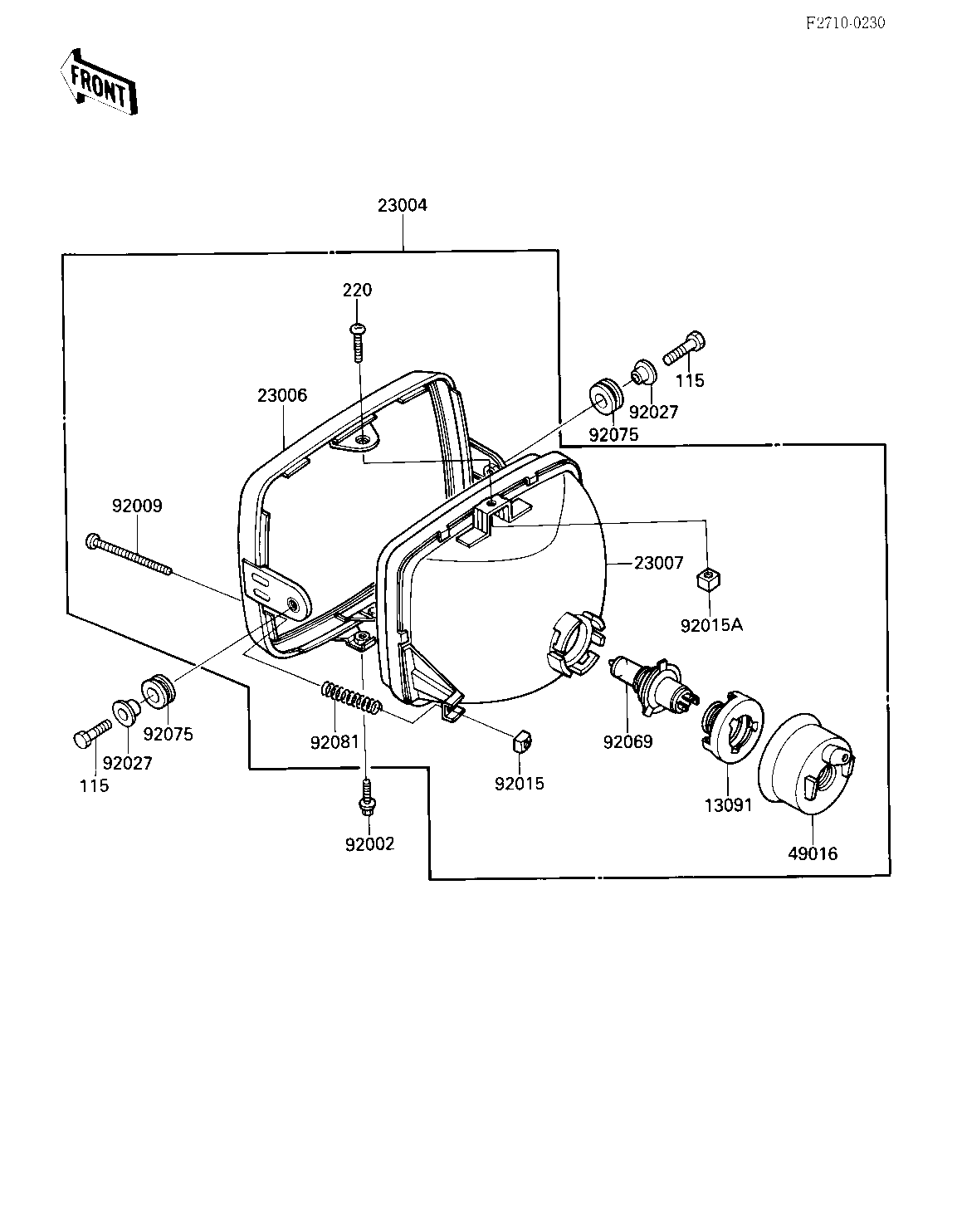

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,HEAD LAMP SOCK 13091 13091-1036 1
LAMP-HEAD 23004 23004-1164 1
RIM-LAMP 23006 23006-1054 1
LENS-COMP 23007 23007-1109 1
COVER,HEAD LAMP SOCKE 49016 49016-1023 1
BOLT 92002 92002-1350 1
SCREW,HEAD LAMP LENS 92009 92009-1047 1
NUT,4MM 92015 23020-018 1
NUT,5MM 92015A 92015-1157 2
COLLAR,FUEL TANK FITT 92027 92027-1134 2
BULB,12V-60/55W 92069 92069-1002 1
DAMPER 92075 92160-1007 2
SPRING,HEAD LAMP LENS 92081 92081-1103 1
BOLT-SMALL-UPSET 8X25 115 115G0825 2
SCREW PAN HEAD 5X12 220 220B0512 2
