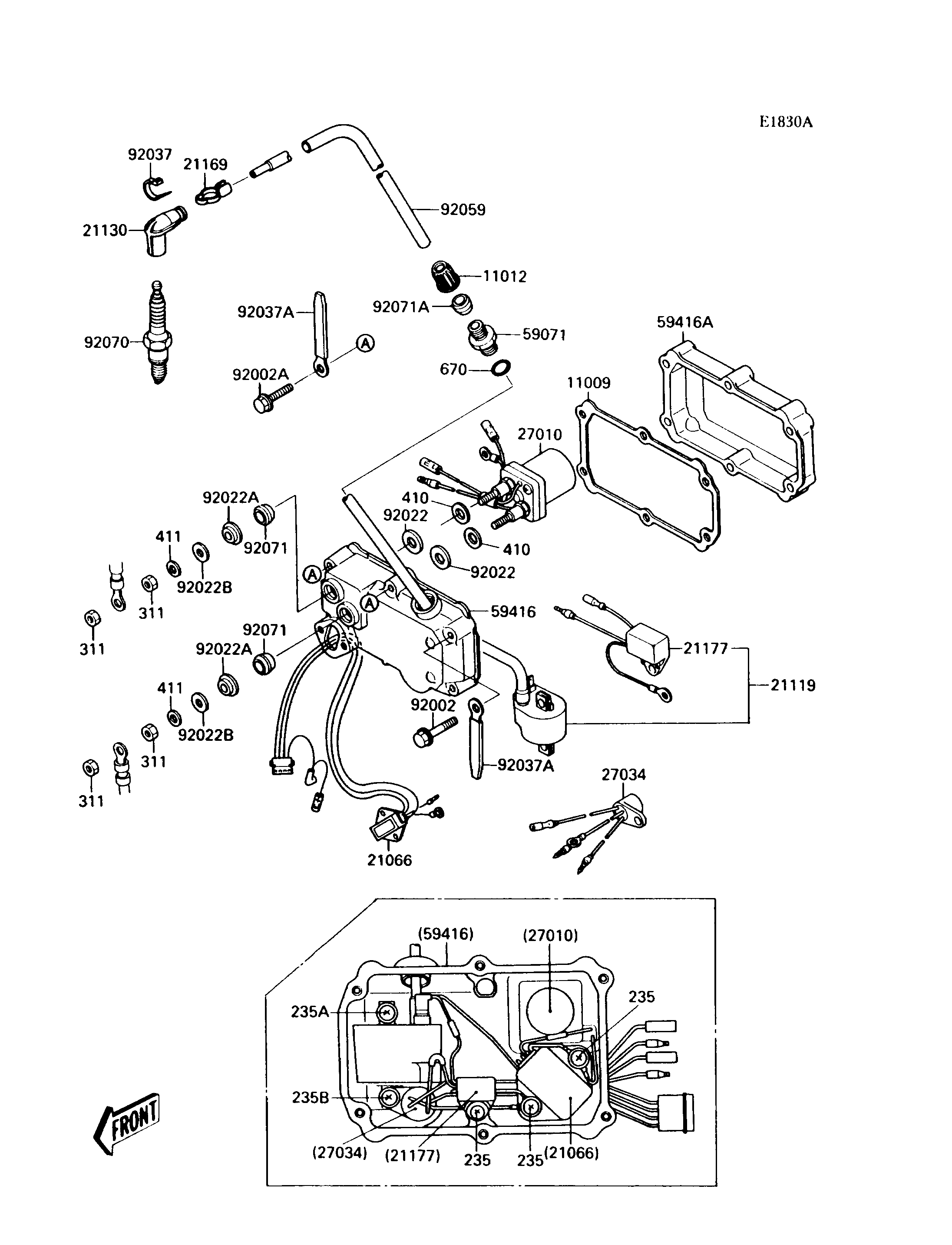

1988 300 SX - Ignition System(JS300-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELECTRIC CASE 11009 11009-3711 1
CAP 11012 11012-3005 1
REGULATOR-VOLTAGE 21066 21066-3701 1
IGNITER 21119 21119-3707 1
CAP-SPARK PLUG 21130 21130-1006 1
TERMINAL,PLUG CAP 21169 21169-001 1
CONTROLLER 21177 21177-3701 1
SWITCH,STARTER RELAY 27010 27010-3703 1
RELAY,STOP SWITCH 27034 27034-3002 1
JOINT 59071 59071-3001 1
CASE-ELECTRIC,FR 59416 59416-3702 1
CASE-ELECTRIC,RR 59416A 59416-3703 1
BOLT,6X35 92002 92002-3715 2
BOLT,6X65 92002A 92002-3720 4
WASHER 92022 92022-3035 2
WASHER 92022A 92022-3708 2
WASHER,6.5X19X2 92022B 92022-3709 2
CLAMP 92037 92037-1173 1
CLAMP,L=100 92037A 92037-3736 3
TUBE 92059 92059-3820 1
PLUG-SPARK,B7ES(NGK) 92070 92070-3003 1
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-527 1
SCREW-PAN-WP-CROS 235 235B0616 3
SCREW-PAN-WP-CROS 235A 235B0620 1
SCREW-PAN-WP-CROS 235B 235B0625 1
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN,6MM 411 411S0600 2
O RING,16MM 670 670B2016 1
