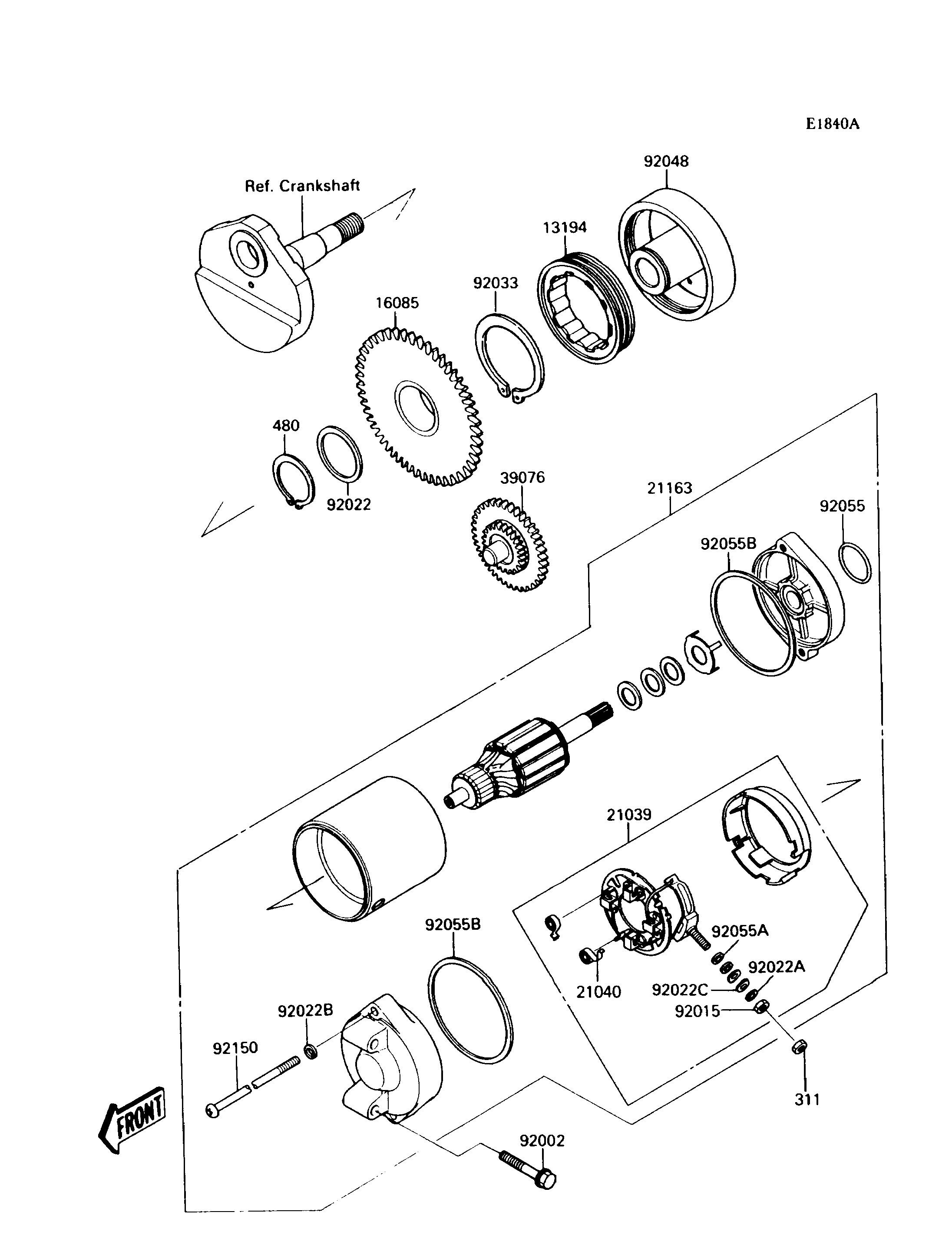

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CLUTCH-ONEWAY | 13194 | 13194-3703 | 1 | ||
GEAR,STARTER,59T | 16085 | 16085-3701 | 1 | ||
BRUSH,CARBON | 21039 | 21039-3703 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1055 | 4 | ||
STARTER-ELECTRIC | 21163 | 21163-3708 | 1 | ||
LIMITER,STARTER IDLE | 39076 | 39076-3701 | 1 | ||
BOLT,6X35 | 92002 | 92002-3715 | 2 | ||
NUT,6MM | 92015 | 92015-3710 | 1 | ||
WASHER,36.3X46X2 | 92022 | 92022-1102 | 1 | ||
WASHER,6MM | 92022A | 92022-3711 | 1 | ||
WASHER,SPRING,5MM | 92022B | 92022-3712 | 1 | ||
WASHER,6MM | 92022C | 92022-3713 | 1 | ||
RING,SNAP | 92033 | 92033-3076 | 1 | ||
RACE,CLUTCH | 92048 | 92048-3706 | 1 | ||
RING-O | 92055 | 92055-1276 | 1 | ||
RING-O,4.5X2.0 | 92055A | 92055-1370 | 1 | ||
RING-O,STARTER MOTOR | 92055B | 92055-1381 | 2 | ||
BOLT,STARTER MOTOR | 92150 | 92150-3716 | 2 | ||
NUT-HEX,6MM | 311 | 311R0600 | 1 | ||
CIRCLIP-TYPE-C,36MM | 480 | 480J3600 | 1 |
