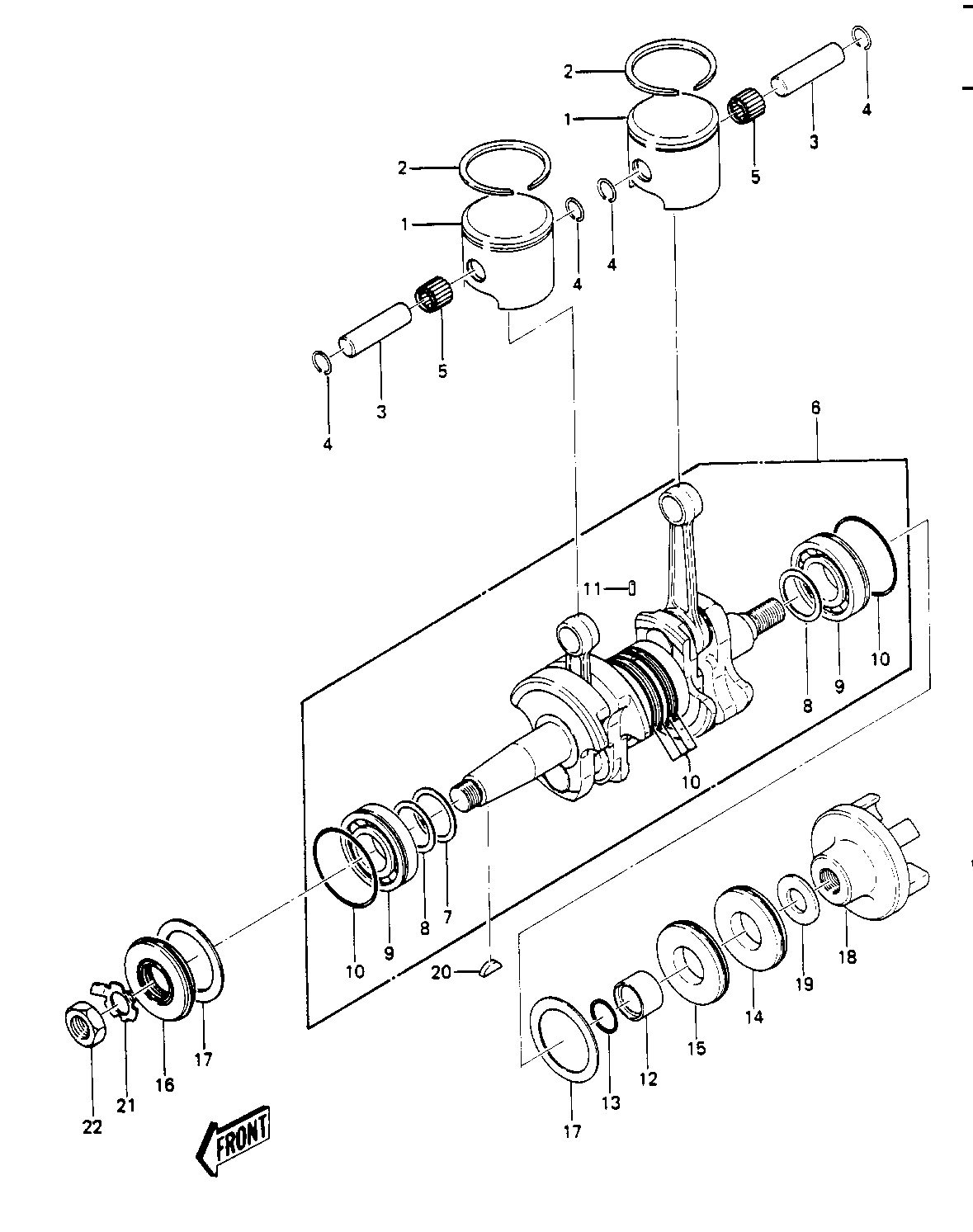

1986 JS440 - CRANKSHAFT/PISTONS ('84-'86 JS440-A8/A9/
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PISTON-ENGINE,STD | 1 | 13001-3017 | 2 | ||
PISTON-ENGINE,0.50 | 1 | 13029-3001 | (2 | ||
RING-PISTON TOP,STD | 2 | 13003-3014 | 2 | ||
RING-PISTON TOP,0.50 | 2 | 13003-3015 | (2 | ||
PIN-PISTON | 3 | 13002-504 | 2 | ||
CIRCLIP PISTON PIN | 4 | 92036-004 | 4 | ||
BEARING-SMALL END | 5 | 13033-3005 | 2 | ||
CRANKSHAFT ASSY, | 6 | 13031-3011 | 1 | ||
SHIM-1.0T | 7 | 92025-532 | 1 | ||
SHIM 0.1T | 8 | 92025-513 | AR | ||
SHIM 0.2T | 8 | 92025-518 | AR | ||
SHIM 0.3T | 8 | 92025-523 | AR | ||
SHIM 0.4T | 8 | 92025-527 | AR | ||
SHIM 0.5T | 8 | 92025-530 | AR | ||
SHIM 0.6T | 8 | 92025-533 | AR | ||
BEARING-BALL | 9 | 92045-505 | 2 | ||
O-RING | 10 | 92055-504 | 6 | ||
PIN,DOWEL | 11 | 551A0410 | 1 | ||
SLEEVE,CRANKSHAFT OUT | 12 | 42036-3007 | 1 | ||
"0" RING,CRANKSHAFT | 13 | 92055-3009 | 1 | ||
SEAL-OIL,TCY306210 | 14 | 92049-3005 | 1 | ||
SEAL-OIL,DCY30629 | 15 | 92049-3006 | 1 | ||
SEAL,OIL TCY306210 | 16 | 92050-507 | 1 | ||
WASHER | 17 | 92022-3021 | 2 | ||
COUPLING | 18 | 42034-3706 | 1 | ||
WASHER,18.5X38X4 | 19 | 92022-3028 | 1 | ||
WOODRUFF KEY | 20 | 510A5200 | 1 | ||
WASHER,LOCK,20M/M | 21 | 92022-569 | 1 | ||
NUT,20M/M | 22 | 92015-535 | 1 |
