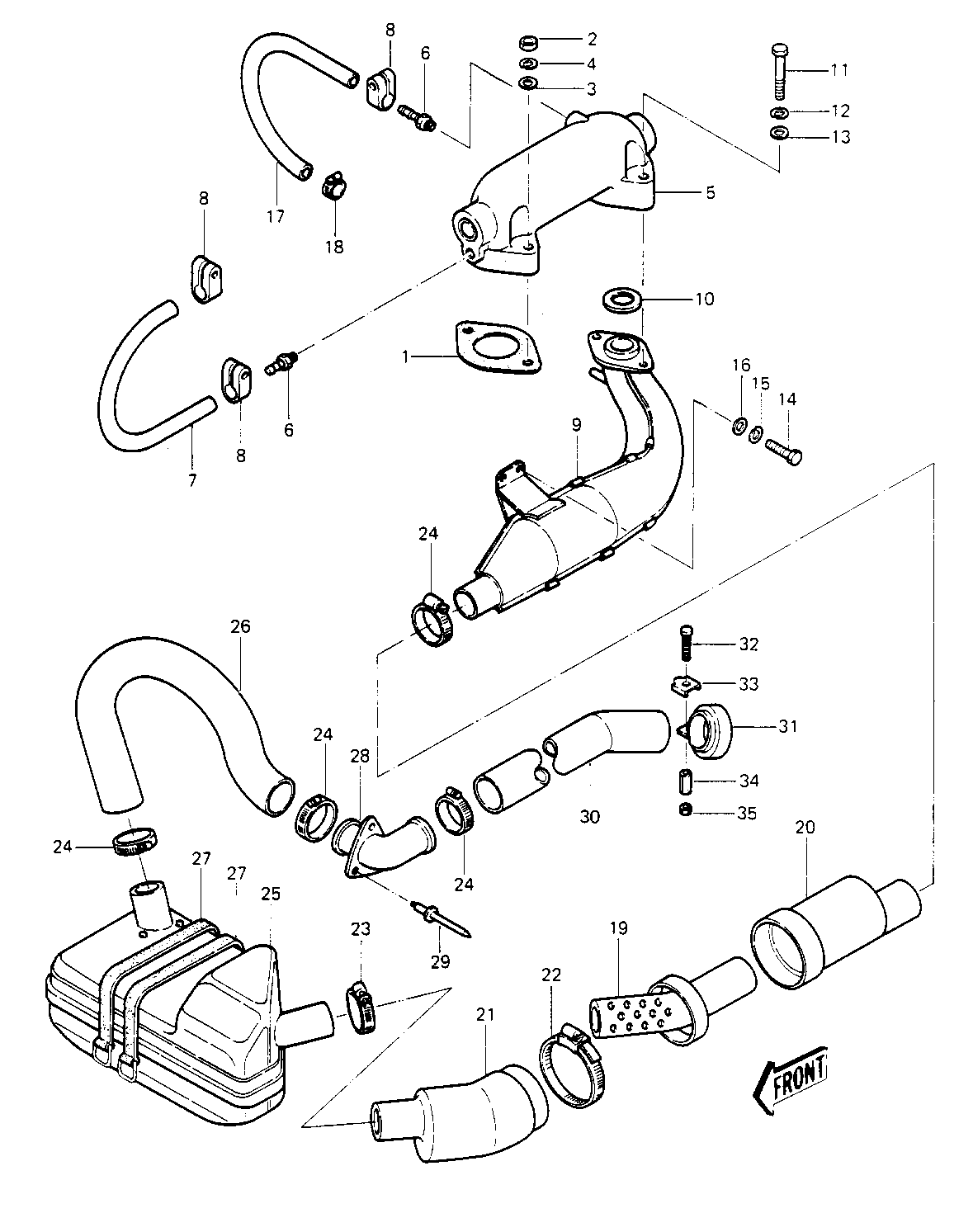

1986 JS440 - MUFFLER ('84-'86 JS440-A8/A9/A10)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST | 1 | 11060-3710 | 1 | ||
NUT,8 M/M | 2 | 311M0800 | 2 | ||
WASHER | 3 | 410S0800 | 2 | ||
WASHER SPRING 8MM | 4 | 461S0800 | 2 | ||
PIPE-EXHAUST | 5 | 18049-3006-YR | 1 | ||
JOINT,HOSE | 6 | 92005-3001 | 2 | ||
TUBE,9X190 | 7 | 92059-3021 | 1 | ||
CLAMP,HOSE | 8 | 92037-504 | 3 | ||
EXPANSION CHAMBER | 9 | 18001-520 | 1 | ||
GASKET,EXHAUST | 10 | 11009-3784 | 1 | ||
BOLT,8X45 | 11 | 110R0845 | 2 | ||
WASHER SPRING 8MM | 12 | 461S0800 | 2 | ||
WASHER | 13 | 410S0800 | 2 | ||
BOLT,8X20 | 14 | 110R0820 | 2 | ||
WASHER SPRING 8MM | 15 | 461S0800 | 2 | ||
WASHER | 16 | 410S0800 | 2 | ||
HOSE | 17 | 92059-523 | 1 | ||
CLAMP,HOSE | 18 | 92037-504 | 1 | ||
PIPE-RESNTR. CONNECTR | 19 | 59151-528 | 1 | ||
TUBE | 20 | 92059-542 | 1 | ||
TUBE | 21 | 92059-543 | 1 | ||
CLAMP | 22 | 92037-541 | 1 | ||
CLAMP,HOSE | 23 | 92037-506 | 1 | ||
CLAMP | 24 | 92037-509 | 4 | ||
MUFFLER-COMP,WATERBOX | 25 | 49070-3714 | 1 | ||
HOSE | 26 | 92059-528 | 1 | ||
BAND | 27 | 92072-511 | 2 | ||
PIPE,TAIL | 28 | 59156-506 | 1 | ||
RIVET | 29 | 92039-3701 | 3 | ||
HOSE,TAIL | 30 | 92059-549 | 1 | ||
CLAMP | 31 | 92037-545 | 1 | ||
SCREW,6X45 | 32 | 92009-3747 | 1 | ||
WASHER | 33 | 92095-513 | 1 | ||
NUT,6M/M | 34 | 92015-532 | 1 | ||
NUT,6M/M | 35 | 311R0600 | 1 |
