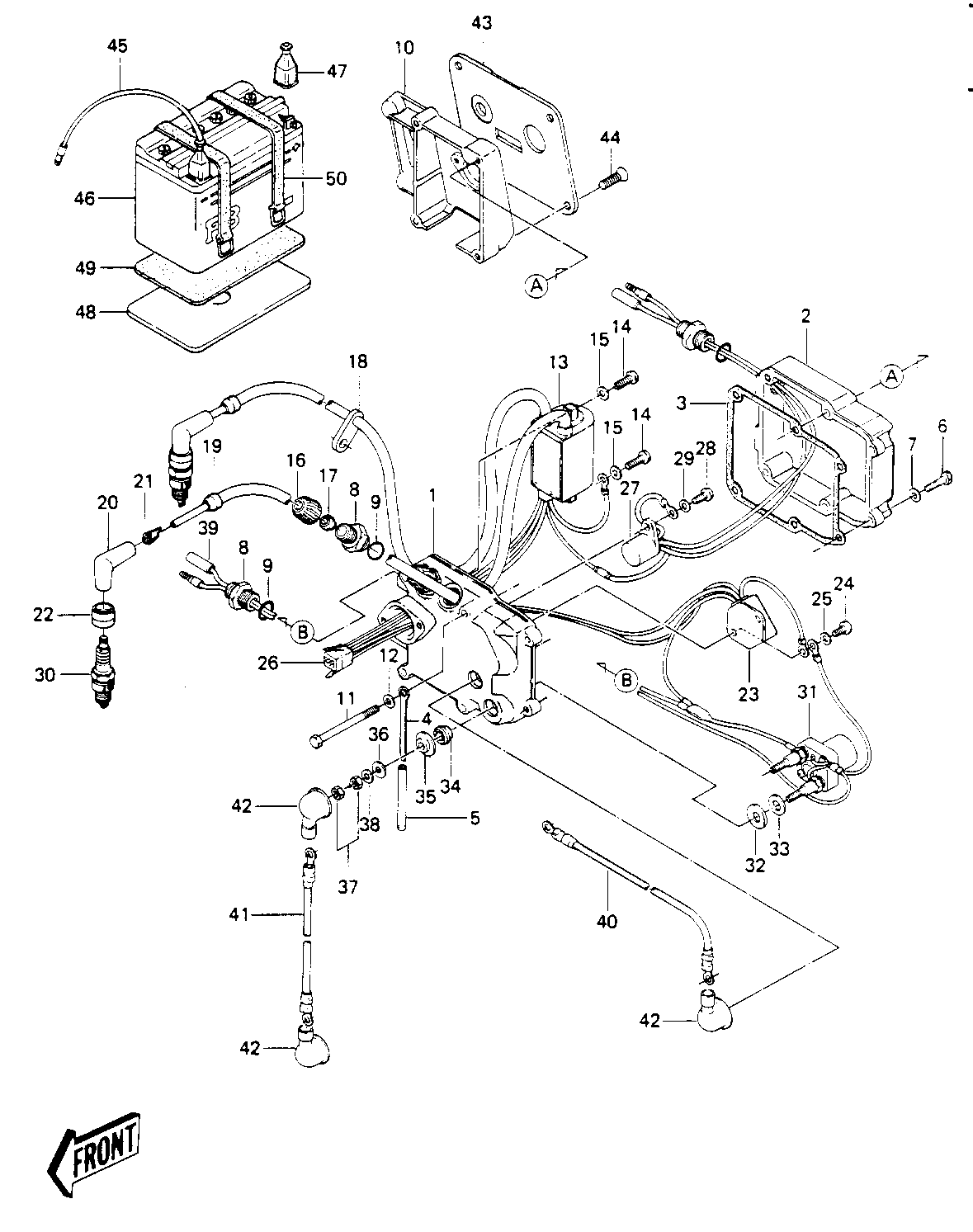

1986 JS440 - ELECTRIC CASE ('84-'86 JS440-A8/A9
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-ELECTRIC,FRONT | 1 | 59416-3004-YR | 1 | ||
CASE-ELECTRIC,REAR | 2 | 59416-3003-YR | 1 | ||
GASKET,ELECTRIC CASE | 3 | 11009-3781 | 1 | ||
CLAMP,L=100 | 4 | 92037-3736 | 1 | ||
TUBE,VINYL,5X73 | 5 | 92059-3017 | 1 | ||
BOLT,HEX HEAD,6X25 | 6 | 110R0625 | 2 | ||
WASHER | 7 | 411S0600 | 2 | ||
JOINT | 8 | 59071-3001 | 4 | ||
"0" RING,16MM | 9 | 670B2016 | 4 | ||
CASE,FUEL TAP | 10 | 32099-3752 | 1 | ||
BOLT,6X80 | 11 | 110R0680 | 4 | ||
WASHER | 12 | 411S0600 | 4 | ||
IGNITER | 13 | 21119-3016 | 1 | ||
SCREW PAN HEAD 6X20 | 14 | 220B0620 | 2 | ||
WASHER PLAIN 6MM | 15 | 410B0600 | 2 | ||
CAP | 16 | 11012-3005 | 2 | ||
GROMMET | 17 | 92071-527 | 2 | ||
GROMMET | 18 | 92071-529 | 1 | ||
GROMMET | 19 | 92071-517 | 2 | ||
CAP SPARK PLUG | 20 | 21130-009 | 2 | ||
TERMINAL | 21 | 21169-2057 | 2 | ||
COVER,PLUG | 22 | 92071-501 | 2 | ||
REGULATOR VOLTAGE | 23 | 21066-3004 | 1 | ||
SCREW PAN HEAD 6X12 | 24 | 220B0612 | 2 | ||
WASHER PLAIN 6MM | 25 | 410B0600 | 2 | ||
CONNECTOR,CORD | 26 | 59221-505 | 1 | ||
RELAY | 27 | 27034-3002 | 1 | ||
SCREW PAN HEAD 6X16 | 28 | 220B0616 | 1 | ||
WASHER PLAIN 6MM | 29 | 410B0600 | 1 | ||
SPARK PLUG B7ES | 30 | 92070-3003 | 2 | ||
SWITCH,SOLENOID | 31 | 27010-3007 | 1 | ||
WASHER,10.5X24X2.5 | 32 | 92022-3035 | 2 | ||
WASHER PLAIN 10MM | 33 | 410B1000 | 2 | ||
GROMMET | 34 | 92071-3004 | 2 | ||
WASHER | 35 | 92022-3036 | 2 | ||
WASHER | 36 | 92022-553 | 2 | ||
NUT,6M/M | 37 | 311R0600 | 4 | ||
WASHER | 38 | 411S0600 | 2 | ||
WIRE-LEAD,L=230 | 39 | 26011-3003 | 1 | ||
WIRE-LEAD,BATTERY(+) | 40 | 26011-3778 | 1 | ||
WIRE-LEAD,L=340 | 41 | 26011-3005 | 1 | ||
CAP | 42 | 11012-3004 | 3 | ||
PANEL-CONTROL | 43 | 59226-3702 | 1 | ||
SCREW,CNTSNK HEAD8X22 | 44 | 92009-3004 | 4 | ||
WIRE-LEAD,BATTERY(-) | 45 | 26011-3776 | 1 | ||
FB BAT 12N16-3B | 46 | 26012-1013 | 1 | ||
CAP-BATTERY TERMINAL | 47 | 59176-501 | 2 | ||
PLATE-BATTERY | 48 | 13169-3014 | 1 | ||
CUSHION,BATTERY | 49 | 92075-509 | 1 | ||
BAND,BATTERY | 50 | 92072-512 | 2 |
