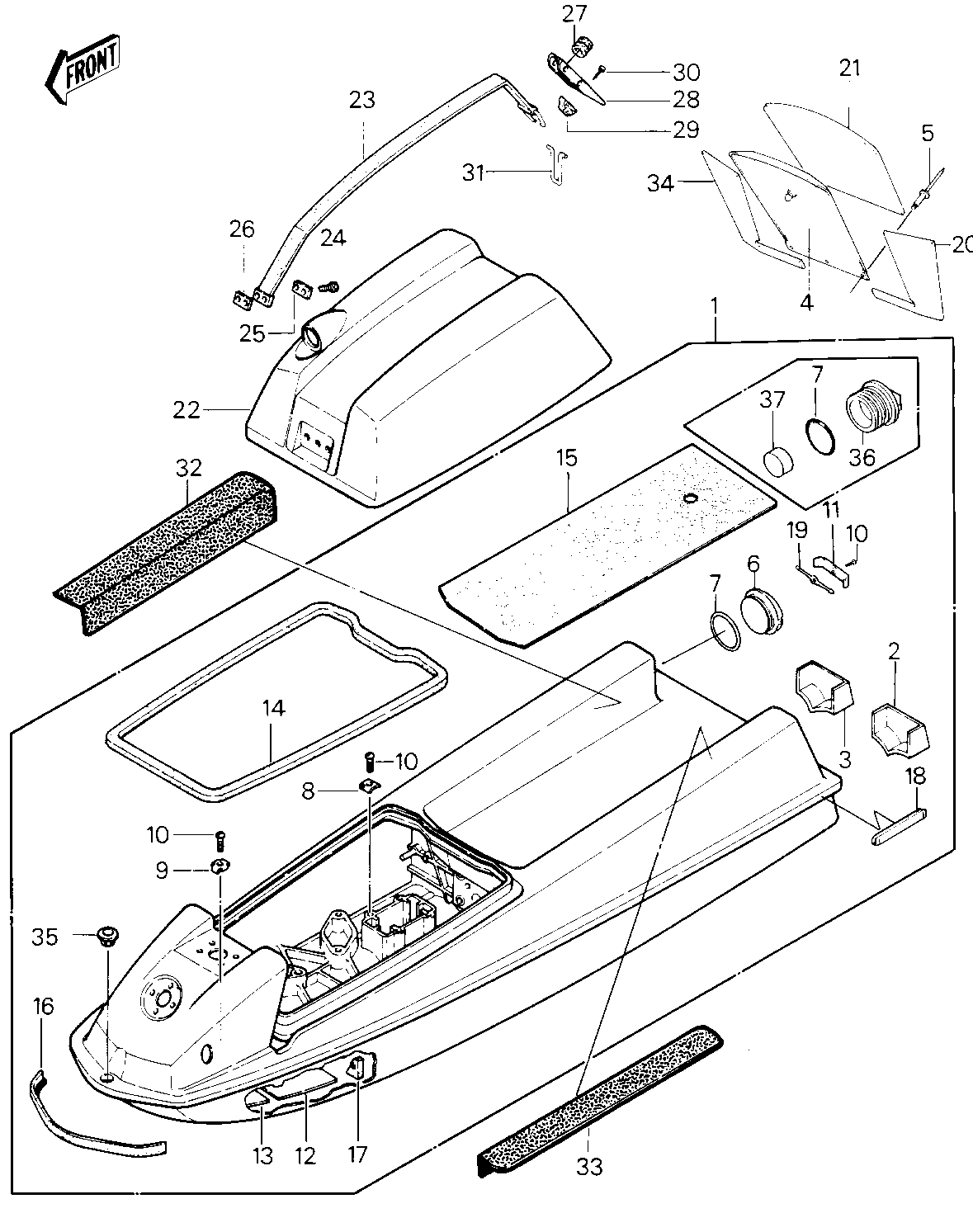

1986 JS440 - HULL/ENGINE HOOD ('84-'86 JS440-A8
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HULL-ASSY,JET-WHITE | 1 | 59431-3705-8C | 1 | ||
HULL EXTENSION-LH | 2 | 59251-3006-8C | 1 | ||
HULL EXTENSION-RH | 3 | 59251-3005-8C | 1 | ||
COVER | 4 | 14025-3706 | 1 | ||
RIVET | 5 | 92039-3703 | 3 | ||
SEAL-OIL | 7 | 92049-3709 | 1 | ||
HOOK | 8 | 27012-501 | 7 | ||
HOOK | 9 | 27012-502 | 2 | ||
SCREW 0.22 X 0.563 | 10 | 92011-561 | 9 | ||
DAMPER,6.0TX90X300 | 12 | 92075-521 | 2 | ||
DAMPER,3.OTX90X200 | 13 | 92075-522 | 2 | ||
GASKET,ENGINE COVER | 14 | 92065-539 | 1 | ||
MAT | 15 | 59131-502 | 1 | ||
BUMPER | 16 | 59201-3691 | 1 | ||
DETENT,STEERING CABLE | 17 | 59346-504 | 3 | ||
GRIP | 18 | 46075-3701 | 2 | ||
MAT,DASHBOARD,LH | 20 | 53004-3710 | 1 | ||
MAT,DASHBOARD,COVER | 21 | 53004-3705 | 1 | ||
HOOD-COMP-ENGINE,JET | 22 | 59456-3719-8C | 1 | ||
BAND,HOOD | 23 | 92072-3746 | 1 | ||
BOLT,6X30 | 24 | 92001-3022 | 2 | ||
WASHER,BAND | 25 | 92022-509 | 1 | ||
PLATE-ENG. CVR. STRAP | 26 | 59086-501 | 1 | ||
GROMMET | 27 | 92071-056 | 1 | ||
LEVER | 28 | 13168-3701 | 1 | ||
DETENT-HOOD LEVER | 29 | 59346-503 | 1 | ||
SCREW 0.16X0.5 | 30 | 92011-562 | 1 | ||
HINGE-HOOD LEVER | 31 | 53009-503 | 1 | ||
MAT,DECK FIN,RH | 32 | 53004-3701 | 1 | ||
MAT,DECK FIN,LH | 33 | 53004-3702 | 1 | ||
MAT,DASHBOARD,RH | 34 | 53004-3709 | 1 | ||
BUSHING | 35 | 92028-3013 | 1 | ||
CAP | 36 | 11012-3721 | 1 | ||
DAMPER | 37 | 92075-3710 | 1 |
