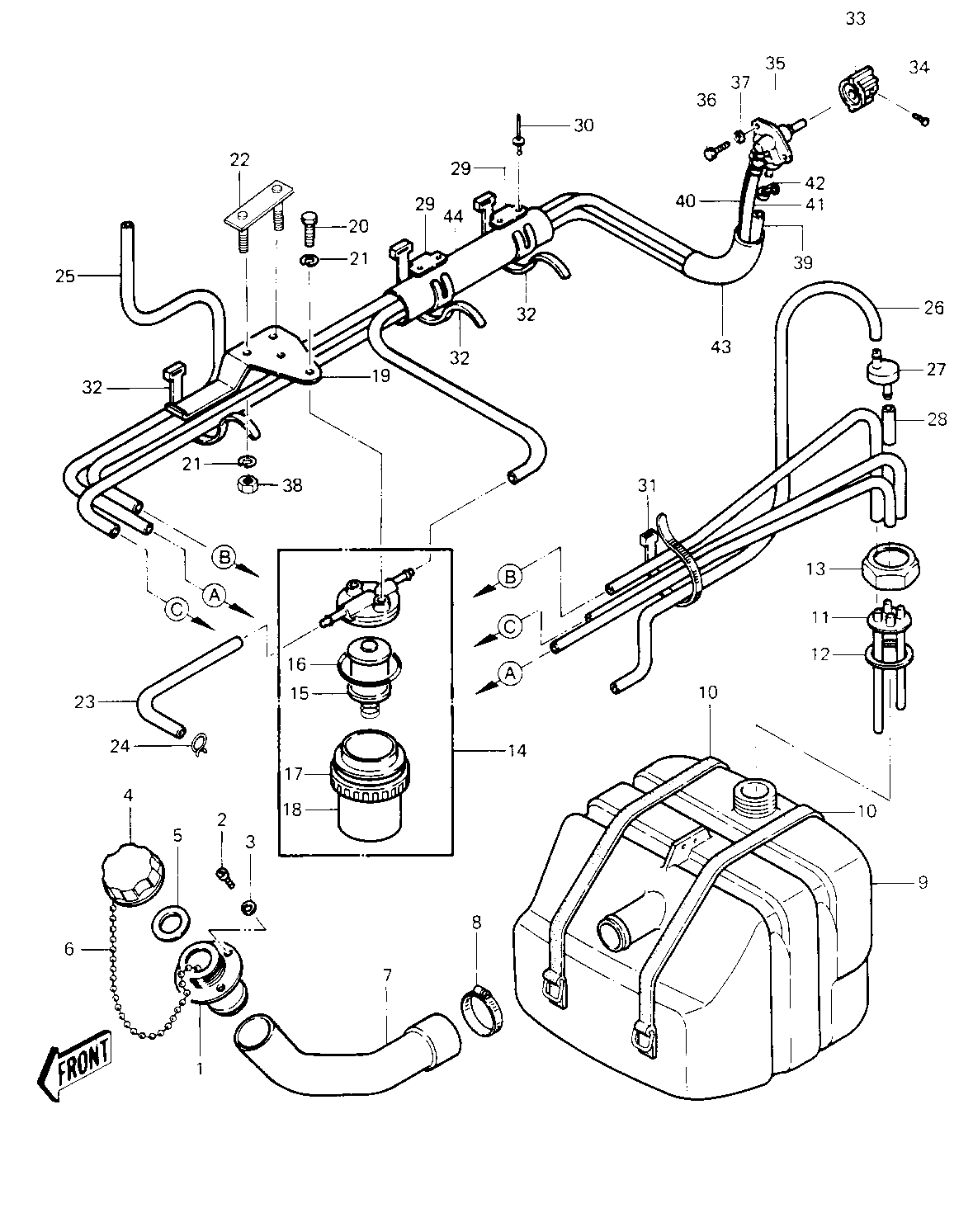

1986 JS440 - FUEL TANK ('84-'86 JS440-A8/A9/A10
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILLER,FUEL TANK | 1 | 59231-3001 | 1 | ||
SCREW 0.16X0.5 | 2 | 92011-562 | 4 | ||
WASHER | 3 | 92022-563 | 4 | ||
CAP,FUEL TANK | 4 | 51049-3001 | 1 | ||
GASKET,FUEL TANK CAP | 5 | 11009-3020 | 1 | ||
CHAIN,COVER | 6 | 92057-3704 | 1 | ||
HOSE,FUEL INLET,307.5 | 7 | 92059-3020 | 1 | ||
HOSE CLAMP | 8 | 92037-3009 | 1 | ||
TANK-FUEL | 9 | 51004-3702 | 1 | ||
BAND,FUEL TANK | 10 | 92072-521 | 2 | ||
OUTLET,FUEL | 11 | 31064-3001 | 1 | ||
GASKET | 12 | 92065-504 | 1 | ||
RETAINER | 13 | 23072-501 | 1 | ||
FILTER-FUEL | 14 | 49019-3701 | 1 | ||
FILTER,FUEL ELEMENT | 15 | 14043-3701 | 1 | ||
"0" RING,FILTER BASE | 16 | 92055-3006 | 1 | ||
NUT-RING,60MM | 17 | 92015-3013 | 1 | ||
CUP,FUEL FILTER | 18 | 51036-3701 | 1 | ||
BRACKET,FUEL FILTER | 19 | 11047-3743 | 1 | ||
BOLT 6X12 | 20 | 110R0612 | 2 | ||
WASHER-SPRING,6MM | 21 | 461S0600 | 4 | ||
BRACKET | 22 | 11034-3701 | 1 | ||
TUBE,6X10X200 | 23 | 92059-3011 | 1 | ||
CLAMP,SPARK PLUG CAP | 24 | 92037-1173 | 2 | ||
TUBE,6X10X760 | 25 | 92059-3012 | 1 | ||
TUBE,FUEL,6X10X940 | 26 | 92059-3025 | 1 | ||
VALVE,RELIEF | 27 | 49057-3001 | 1 | ||
TUBE,FUEL,5.8X12.2X55 | 28 | 92059-3026 | 1 | ||
CLAMP,TUBE | 29 | 92037-3005 | 2 | ||
RIVET | 30 | 92039-3702 | 4 | ||
BAND,SHORT | 31 | 92072-030 | 1 | ||
BAND,MIDDLE | 32 | 92072-031 | 3 | ||
KNOB,COCK | 33 | 92077-503 | 1 | ||
SCREW-PAN-CROS | 34 | 220R0408 | 1 | ||
TAP-ASSY,FUEL | 35 | 51023-3705 | 1 | ||
BOLT,5X12 | 36 | 110R0512A | 2 | ||
WASHER | 37 | 411S0500 | 2 | ||
NUT,6M/M | 38 | 311R0600 | 2 | ||
TUBE,6X1300 | 39 | 92059-552 | 1 | ||
TUBE,6X1300,RESERVE | 40 | 92059-553 | 1 | ||
TUBE,6X10X960 | 41 | 92059-3007 | 1 | ||
CLAMP | 42 | 92037-551 | 3 | ||
TUBE,GUARD | 43 | 92059-3008 | 1 | ||
TUBE,VINYL,22X350 | 44 | 92059-3018 | 1 |
