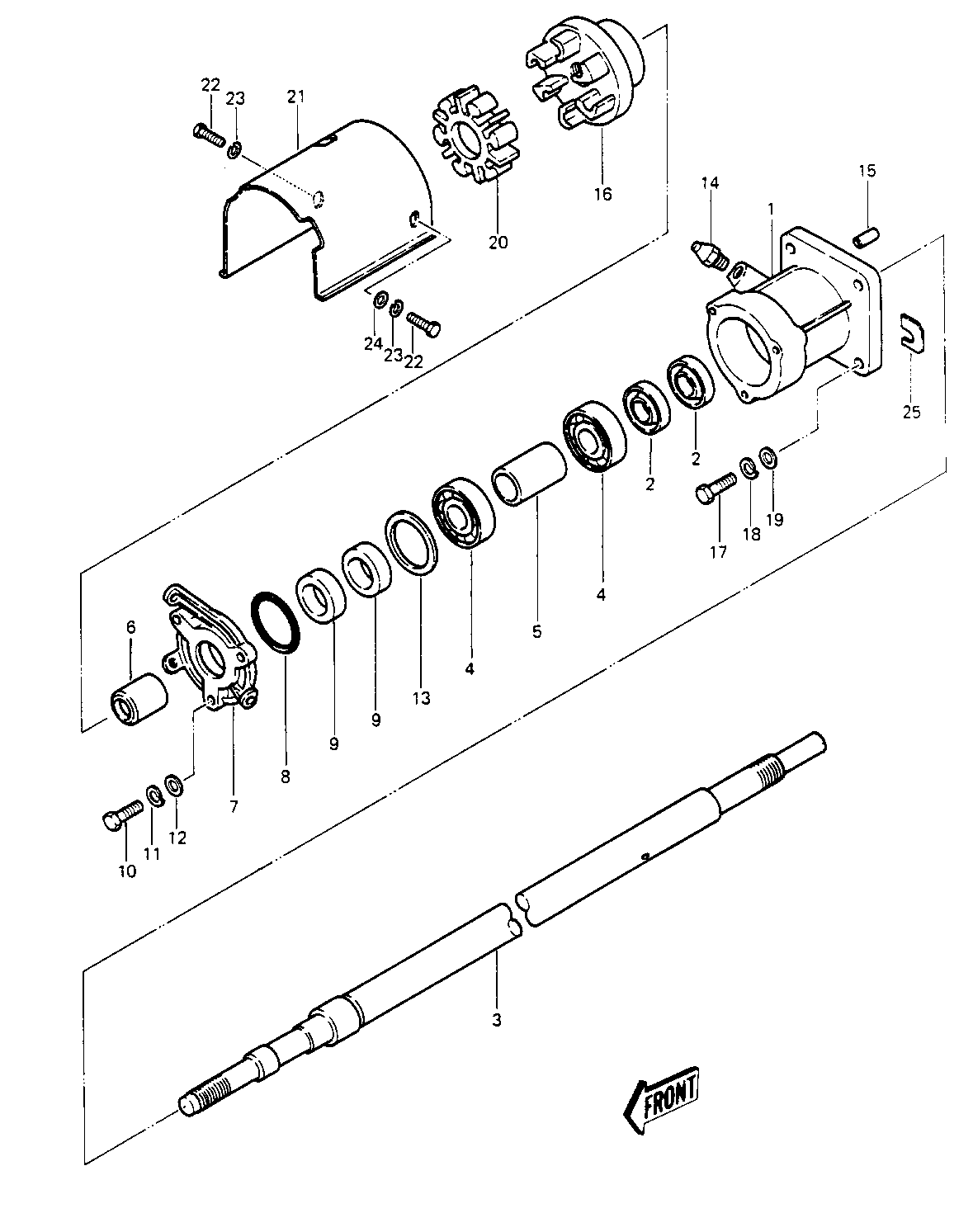

1986 JS440 - DRIVE SHAFT ('84-'86 JS440-A8/A9/A10)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER | 1 | 41046-502 | 1 | ||
SEAL,OIL AC1799EX | 2 | 92050-501 | 2 | ||
SHAFT,DRIVE | 3 | 59111-515 | 1 | ||
BEARING BALL #6305 | 4 | 601B6305 | 2 | ||
COLLAR | 5 | 92027-502 | 1 | ||
SLEEVE,BEARING | 6 | 42036-501 | 1 | ||
COVER,BEARING | 7 | 14025-3008 | 1 | ||
"0" RING | 8 | 92055-501 | 1 | ||
SEAL,OIL AC1799EX | 9 | 92050-501 | 2 | ||
BOLT,8X25 | 10 | 110R0825 | 3 | ||
WASHER SPRING 8MM | 11 | 461S0800 | 3 | ||
WASHER | 12 | 411S0800 | 3 | ||
SHIM 0.15T | 13 | 92025-502 | AR | ||
SHIM 0.3T | 13 | 92025-503 | AR | ||
NIPPLE,GREASE | 14 | 92005-501 | 1 | ||
PIN,DOWEL | 15 | 551R0612 | 2 | ||
COUPLING | 16 | 42034-3706 | 1 | ||
BOLT,8X25 | 17 | 110R0825 | 4 | ||
WASHER SPRING 8MM | 18 | 461S0800 | 4 | ||
WASHER | 19 | 411S0800 | 3 | ||
DAMPER RUBBER,COUPLNG | 20 | 92075-520 | 1 | ||
COVER,COUPLING | 21 | 59036-567 | 1 | ||
BOLT 6X16 | 22 | 110R0616 | 3 | ||
WASHER-SPRING,6MM | 23 | 461S0600 | 3 | ||
WASHER | 24 | 411S0600 | 2 | ||
SHIM,T=0.3 | 25 | 92025-3701 | AR | ||
SHIM.T=0.5 | 25 | 92025-3702 | AR | ||
SHIM,T=1.0 | 25 | 92025-3703 | AR | ||
SHIM,T=1.5MM | 25 | 92025-3704 | AR |
