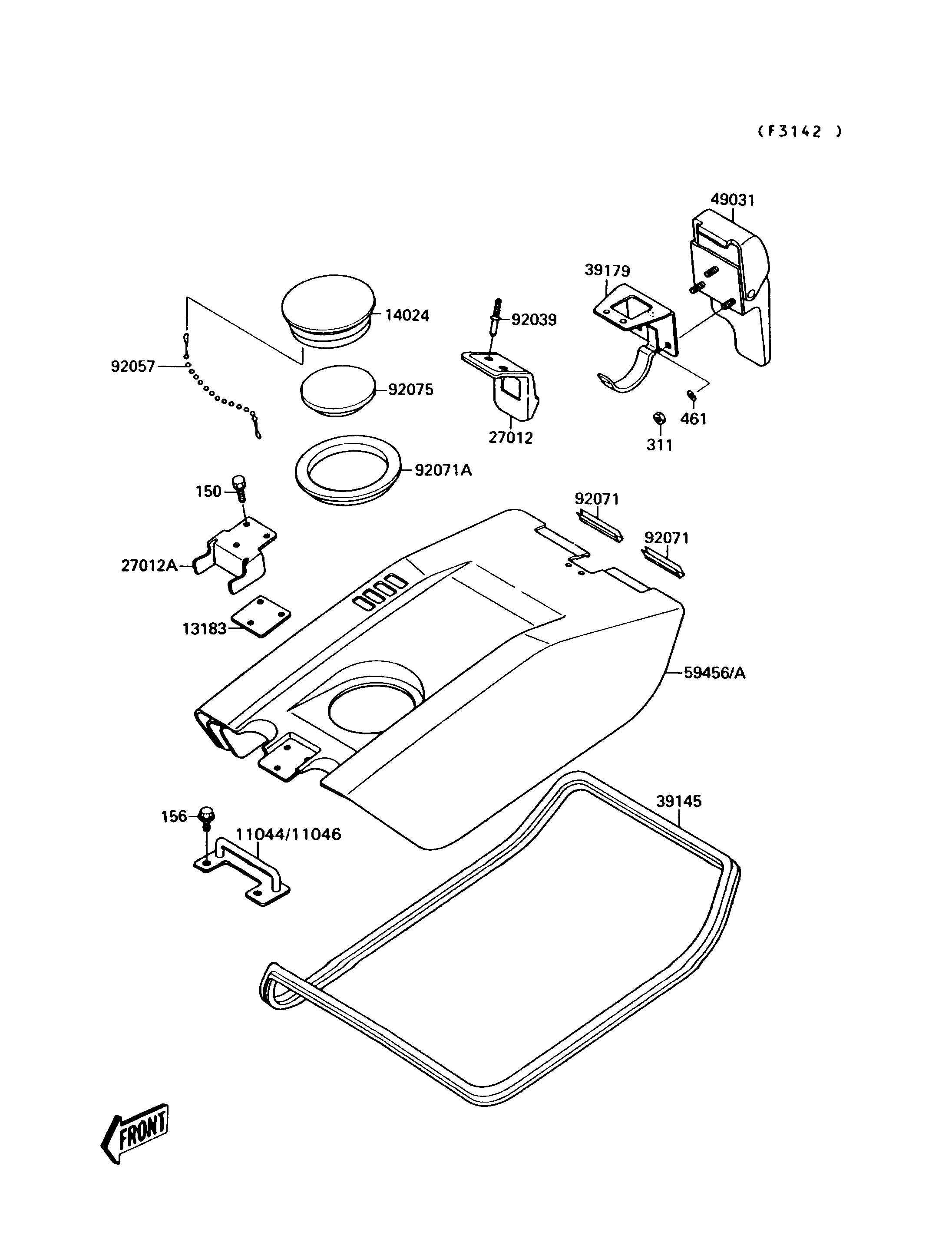

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11044 11044-3706 1
PLATE 13183 13183-3719 1
COVER 14024 14024-3748 1
HOOK 27012 27012-3703 1
HOOK,HOOD,FR 27012A 27012-3704 1
TRIM-SEAL 39145 39145-3707 1
BRACKET-LATCH 39179 39179-3701 1
LATCH 49031 49031-3702 1
HOOD-COMP-ENGINE,JET WHITE 59456 59456-3702-8C 1
RIVET 92039 92039-3722 2
CHAIN,COVER,L=250 92057 92057-3701 1
GROMMET 92071 92071-3726 2
GROMMET 92071A 92071-3742 1
DAMPER 92075 92075-3737 1
BOLT-WS,5X22 150 150R0522 3
BOLT-WP,6X25 156 156R0625 2
NUT-HEX,5MM 311 311R0500 3
WASHER-SPRING,5MM 461 461S0500 3
