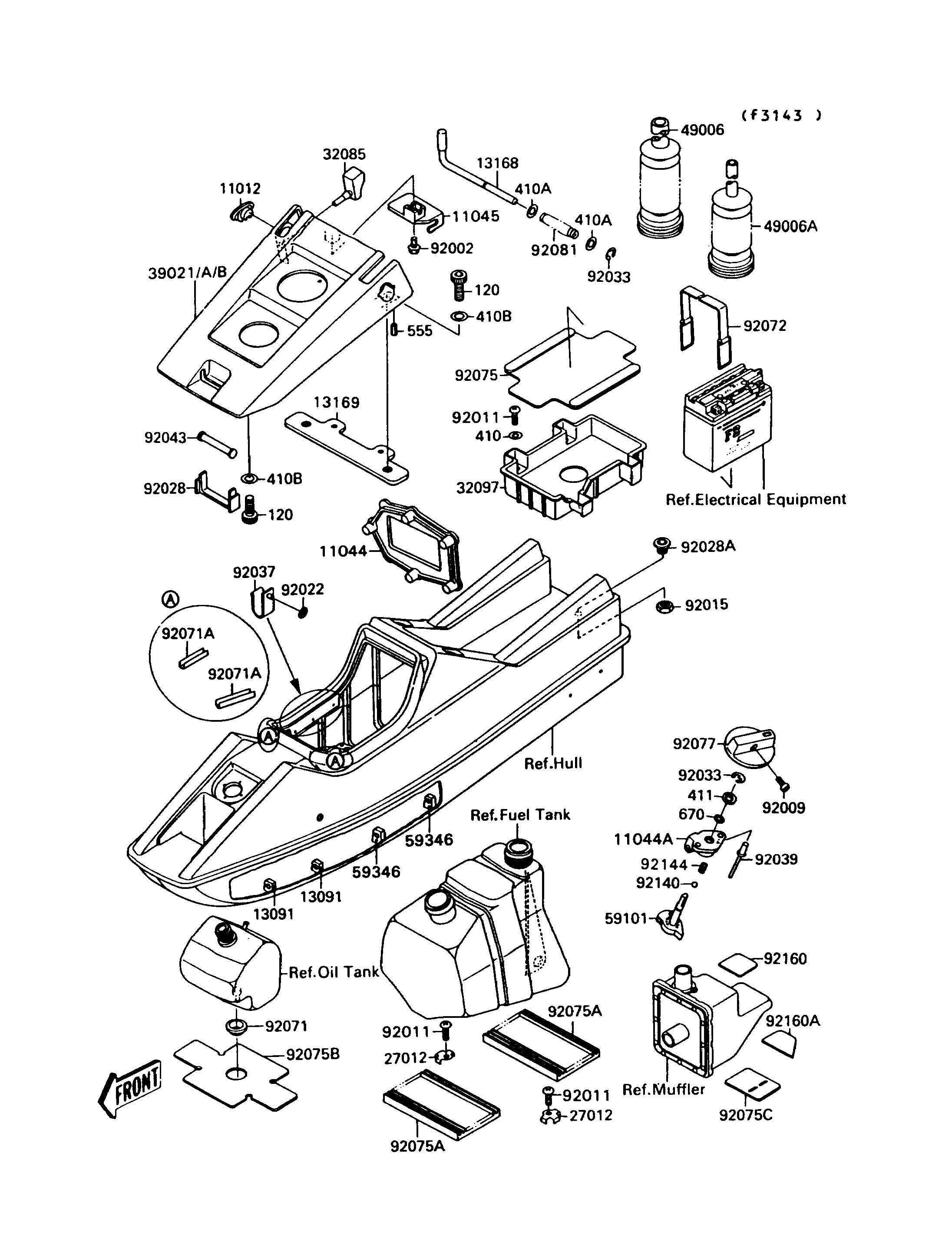

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3709 | 2 | ||
BRACKET | 11044 | 11044-3703 | 1 | ||
BRACKET | 11044A | 11044-3704 | 1 | ||
BRACKET | 11045 | 11045-3769 | 1 | ||
HOLDER | 13091 | 13091-3712 | 2 | ||
LEVER | 13168 | 13168-3702 | 1 | ||
PLATE | 13169 | 13169-3703 | 1 | ||
HOOK | 27012 | 27012-501 | 2 | ||
STOPPER | 32085 | 32085-3704 | 2 | ||
CASE-BATTERY | 32097 | 32097-3702 | 1 | ||
BRACKET-HANDLE POLE,JET WHITE | 39021A | 39021-3702-8C | 1 | ||
BOOT | 49006 | 49006-3703 | 1 | ||
BOOT | 49006A | 49006-3704 | 1 | ||
REEL,CHOKE | 59101 | 59101-3702 | 1 | ||
DETENT | 59346 | 59346-504 | 2 | ||
BOLT,6X12 | 92002 | 92002-3763 | 1 | ||
SCREW,4X8 | 92009 | 92009-3729 | 1 | ||
SCREW,TAPPING | 92011 | 92011-561 | 6 | ||
NUT | 92015 | 92015-3779 | 1 | ||
WASHER,LOCK,5MM | 92022 | 92022-3723 | 3 | ||
BUSHING | 92028 | 92028-3712 | 1 | ||
BUSHING | 92028A | 92028-3734 | 1 | ||
RING-SNAP,7MM | 92033 | 92033-3704 | 2 | ||
CLAMP,FUEL TUBE | 92037 | 92037-3720 | 3 | ||
RIVET | 92039 | 92039-3714 | 2 | ||
PIN | 92043 | 92043-3706 | 1 | ||
GROMMET,OIL TANK | 92071 | 92071-3720 | 1 | ||
GROMMET,L=100 | 92071A | 92071-3744 | 2 | ||
BAND,BATTERY,L=366 | 92072 | 92072-3706 | 2 | ||
DAMPER,BATTERY | 92075 | 92075-3714 | 1 | ||
DAMPER | 92075A | 92075-3716 | 2 | ||
DAMPER,OIL TANK | 92075B | 92075-3717 | 1 | ||
DAMPER,MUFFLER | 92075C | 92075-3747 | 1 | ||
KNOB,FUEL TAP | 92077 | 92077-3704 | 1 | ||
SPRING | 92081 | 92081-3703 | 1 | ||
BALL,3MM | 92140 | 92140-3702 | 2 | ||
SPRING | 92144 | 92144-3712 | 2 | ||
DAMPER | 92160 | 92160-3714 | 1 | ||
DAMPER | 92160A | 92160-3715 | 1 | ||
BOLT-SOCKET | 120 | 120R1025 | 4 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 | ||
WASHER-PLAIN-SMALL,8MM | 410A | 410S0800 | 2 | ||
W-PLAIN-S,10MM | 410B | 410S1000 | 4 | ||
WASHER-PLAIN,8MM | 411 | 411S0800 | 1 | ||
PIN-SPRING,4X14 | 555 | 555B0414 | 2 | ||
O RING,8MM | 670 | 670B1508 | 1 |
