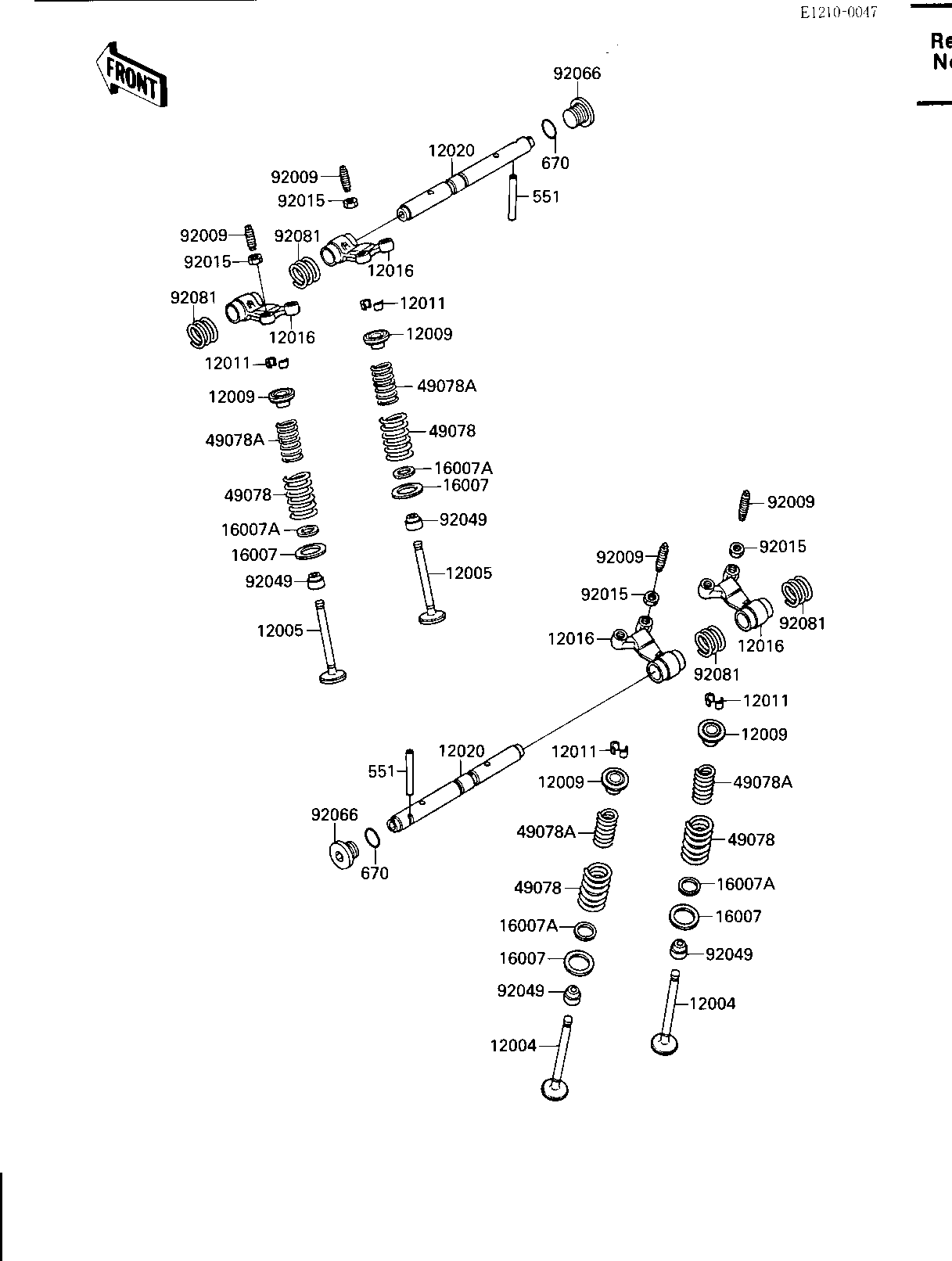

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1075 8
VALVE-EXHAUST 12005 12005-1062 8
RETAINER-VALVE SPRING 12009 12009-1060 16
COLLET 12011 12011-1051 32
ARM-ROCKER 12016 12016-1062 8
SHAFT-ROCKER 12020 12020-1058 4
SEAT-SPRING 16007 16007-1144 16
SEAT-SPRING 16007A 16007-1143 16
SPRING-ENGINE VALVE,O 49078 49078-1060 16
SPRING-ENGINE VALVE,I 49078A 49078-1061 16
SCREW,VALVE ADJUST 92009 92009-1109 16
NUT,5MM 92015 92015-1529 16
SEAL-OIL,VSB58.558 92049 92049-1218 16
PLUG,14X11.5 92066 92066-1192 4
SPRING,ROCKER ARM 92081 92081-1636 8
PIN-DOWEL 551 551A0540 4
"O" RING,15MM 670 670B2015 4
