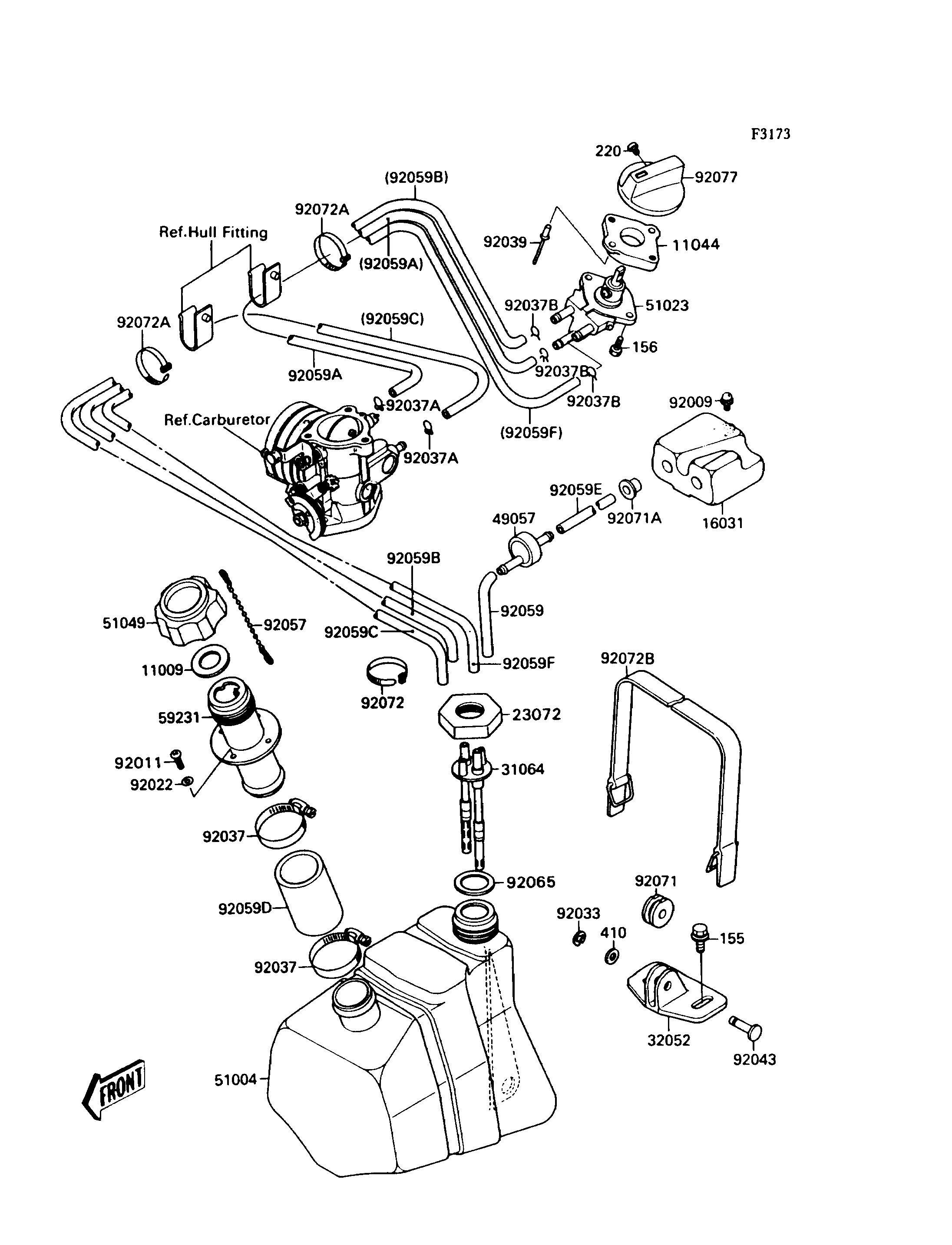

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TANK CAP | 11009 | 11009-3020 | 1 | ||
BRACKET,FUEL TAP | 11044 | 11044-3708 | 1 | ||
FLOAT | 16031 | 16031-3709 | 1 | ||
RETAINER | 23072 | 23072-501 | 1 | ||
PIPE-COMP,FUEL | 31064 | 31064-3706 | 1 | ||
BRACKET-TANK | 32052 | 32052-3704 | 1 | ||
VALVE-RELIEF | 49057 | 49057-3001 | 1 | ||
TANK-FUEL | 51004 | 51004-3703 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-3702 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-3705 | 1 | ||
FILLER | 59231 | 59231-3701 | 1 | ||
SCREW,5X10 | 92009 | 92009-3718 | 1 | ||
SCREW | 92011 | 92011-562 | 4 | ||
WASHER | 92022 | 92022-563 | 4 | ||
RING-SNAP,7MM | 92033 | 92033-3704 | 1 | ||
CLAMP | 92037 | 92037-3009 | 2 | ||
CLAMP,11MM | 92037A | 92037-3723 | 2 | ||
CLAMP | 92037B | 92037-3727 | 3 | ||
RIVET | 92039 | 92039-3714 | 2 | ||
PIN | 92043 | 92043-3705 | 1 | ||
CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
TUBE,5.8X12.2X55 | 92059 | 92059-3026 | 1 | ||
TUBE,5.8X440 | 92059A | 92059-3723 | 1 | ||
TUBE,ON,5.8X1000 | 92059B | 92059-3728 | 1 | ||
TUBE,6X10X780 | 92059C | 92059-3732 | 1 | ||
TUBE,45X53X80 | 92059D | 92059-3742 | 1 | ||
TUBE,5.8X10.8X650 | 92059E | 92059-3759 | 1 | ||
TUBE,RES,5.8X1000 | 92059F | 92059-3783 | 1 | ||
GASKET | 92065 | 92065-504 | 1 | ||
GROMMET | 92071 | 92071-3730 | 1 | ||
GROMMET | 92071A | 92071-3739 | 2 | ||
BAND,L=123 | 92072 | 92072-030 | 1 | ||
BAND,L=149 | 92072A | 92072-031 | 2 | ||
BAND,L=456 | 92072B | 92072-3708 | 1 | ||
KNOB,FUEL TAP | 92077 | 92077-3704 | 1 | ||
BOLT-WSP-SMALL,8X20 | 155 | 155R0820 | 2 | ||
BOLT-WP,5X12 | 156 | 156R0512 | 2 | ||
SCREW-PAN-CROS,4X8 | 220 | 220R0408 | 1 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 1 |
