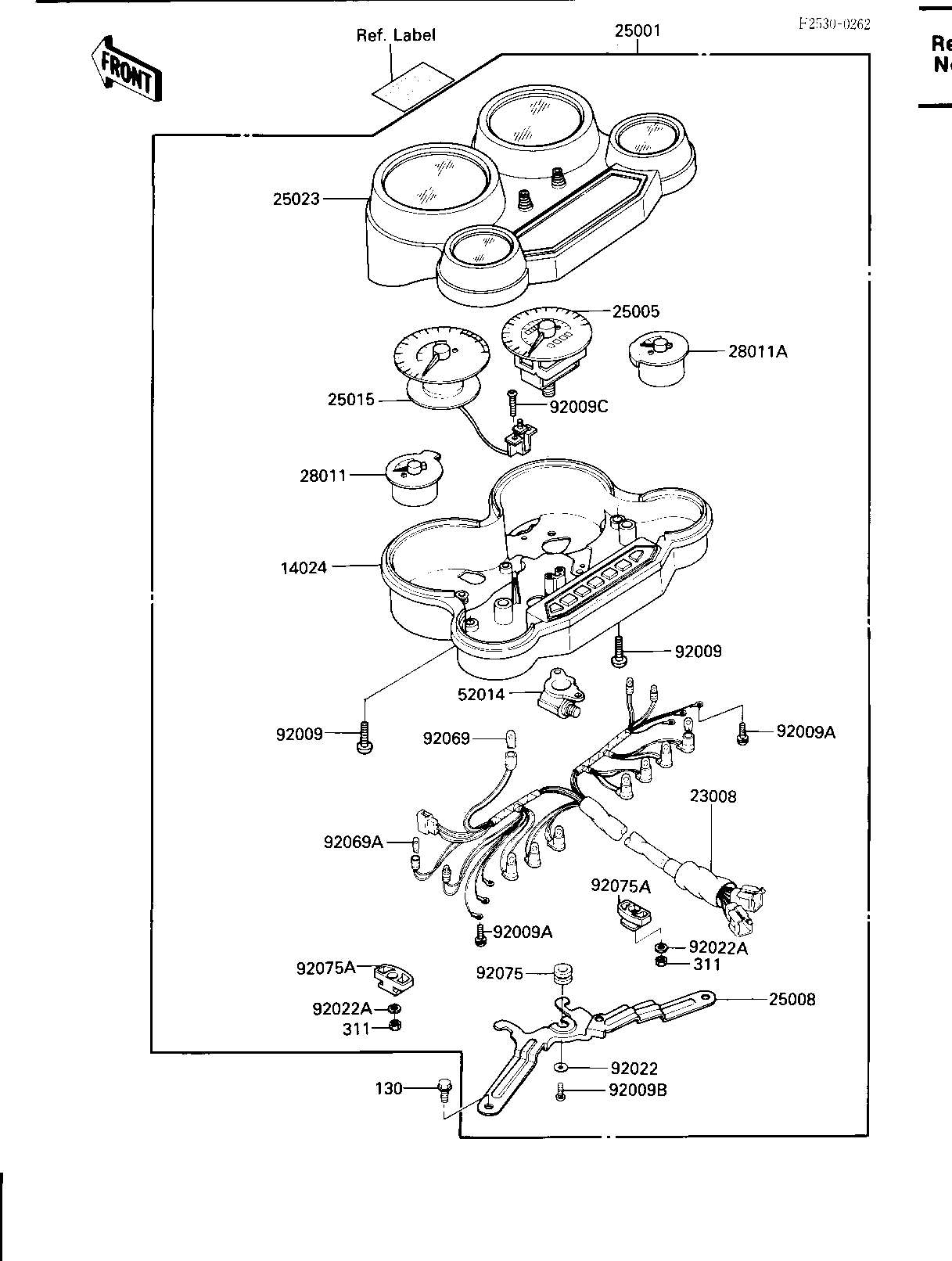

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,METER HOUSING | 14024 | 14025-1877 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1269 | 1 | ||
METER-ASSY,MPH | 25001 | 25001-1597 | 1 | ||
SPEEDOMETER,MPH | 25005 | 25005-1299 | 1 | ||
BRACKET-METER | 25008 | 25008-1119 | 1 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1237 | 1 | ||
COVER-METER CASE | 25023 | 25023-1127 | 1 | ||
METER,FUEL | 28011 | 28011-1062 | 1 | ||
METER,TEMP | 28011A | 28011-1070 | 1 | ||
ELBOW,SPEEDOMETER GEA | 52014 | 52014-1006 | 1 | ||
SCREW,4X16,BLACK | 92009 | 92009-1158 | 3 | ||
SCREW,3X22 | 92009A | 92009-1293 | 6 | ||
SCREW,3X12 | 920098 | 92009-1326 | 1 | ||
SCREW,TAPPING,2.6X12 | 920090 | 92009-1330 | 1 | ||
WASHER | 92022 | 92022-1374 | 1 | ||
WASHER,PLAIN,6MM | 92022A | 92022-263 | 2 | ||
BULB,12V3.4W | 92069 | 92069-1007 | 8 | ||
BULB,12V3W T-7 | 92069A | 92069-1020 | 4 | ||
DAMPER,METER BRACKET | 92075 | 92075-1435 | 1 | ||
DAMPER,METER BRACKET | 92075A | 92075-1495 | 2 | ||
BOLT-FLANGED,6X14 | 130 | 130C0614 | 2 | ||
NUT,5MM | 311 | 311B0500 | 2 |
