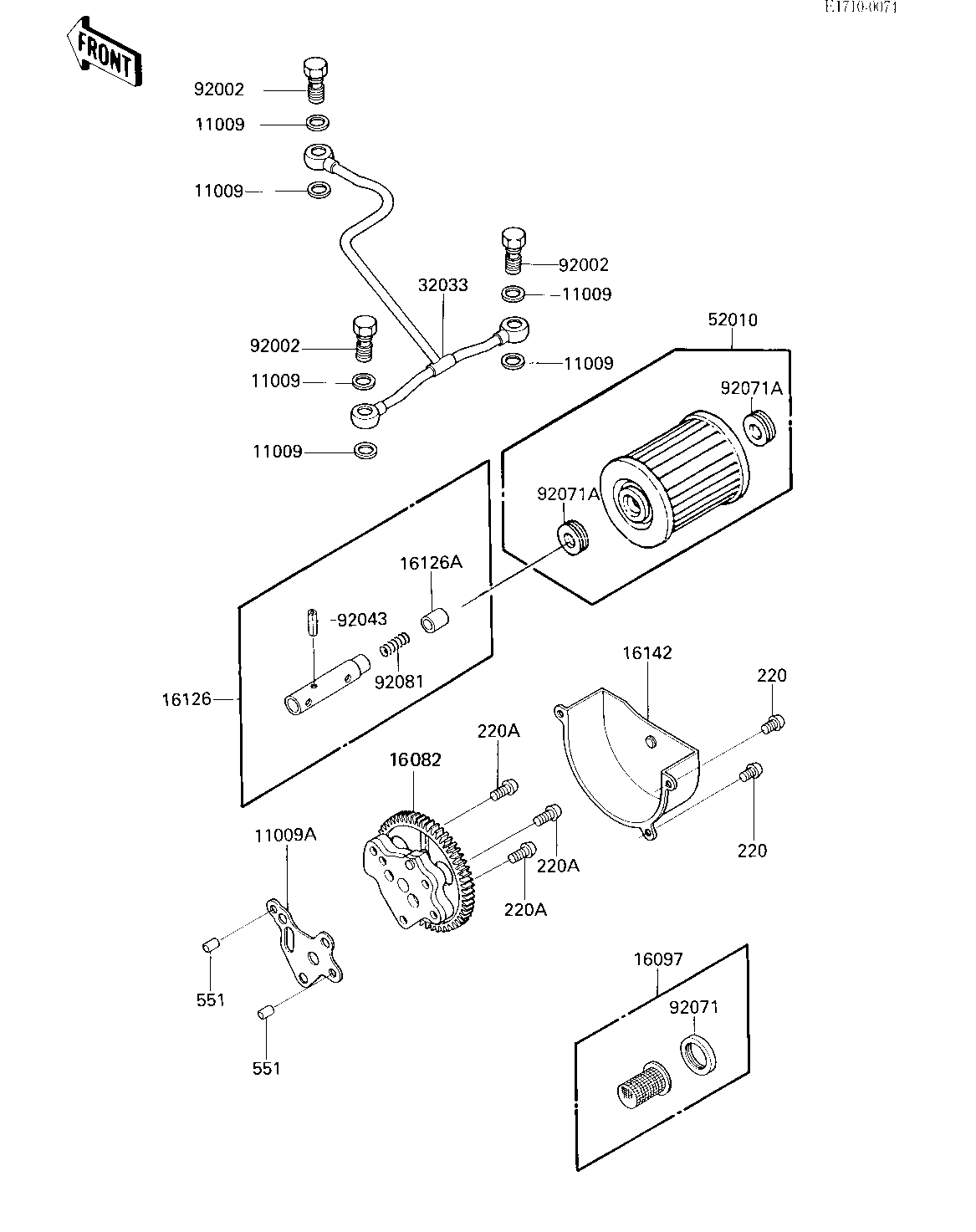

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 6
GASKET,OIL PUMP 11009A 11009-1520 1
PUMP ASSY OIL 16082 16082-1068 1
STRAINER ASSY,OIL 16097 16097-1001 1
BOLT ASSY,OIL FILTER 16126 16156-002 1
PISTON 16126A 92136-002 1
COVER-PUMP 16142 16142-1064 1
PIPE,OIL 32033 32033-1744 1
FILTER,OIL 52010 16099-004 1
BOLT,OIL,L=23 92002 92002-1888 3
SPRING PIN 92043 92043-123 1
GROMMET,OIL STRAINER 92071 92071-100 1
GROMMET,OIL FILTER 92071A 92071-101 2
SPRING,PISTON 92081 92081-043 1
SCREW PAN HEAD 6X12 220 220B0612 3
SCREW PAN HEAD 6X25 220A 220B0625 3
PIN,DOWEL,6X8 551 551A0608 2
