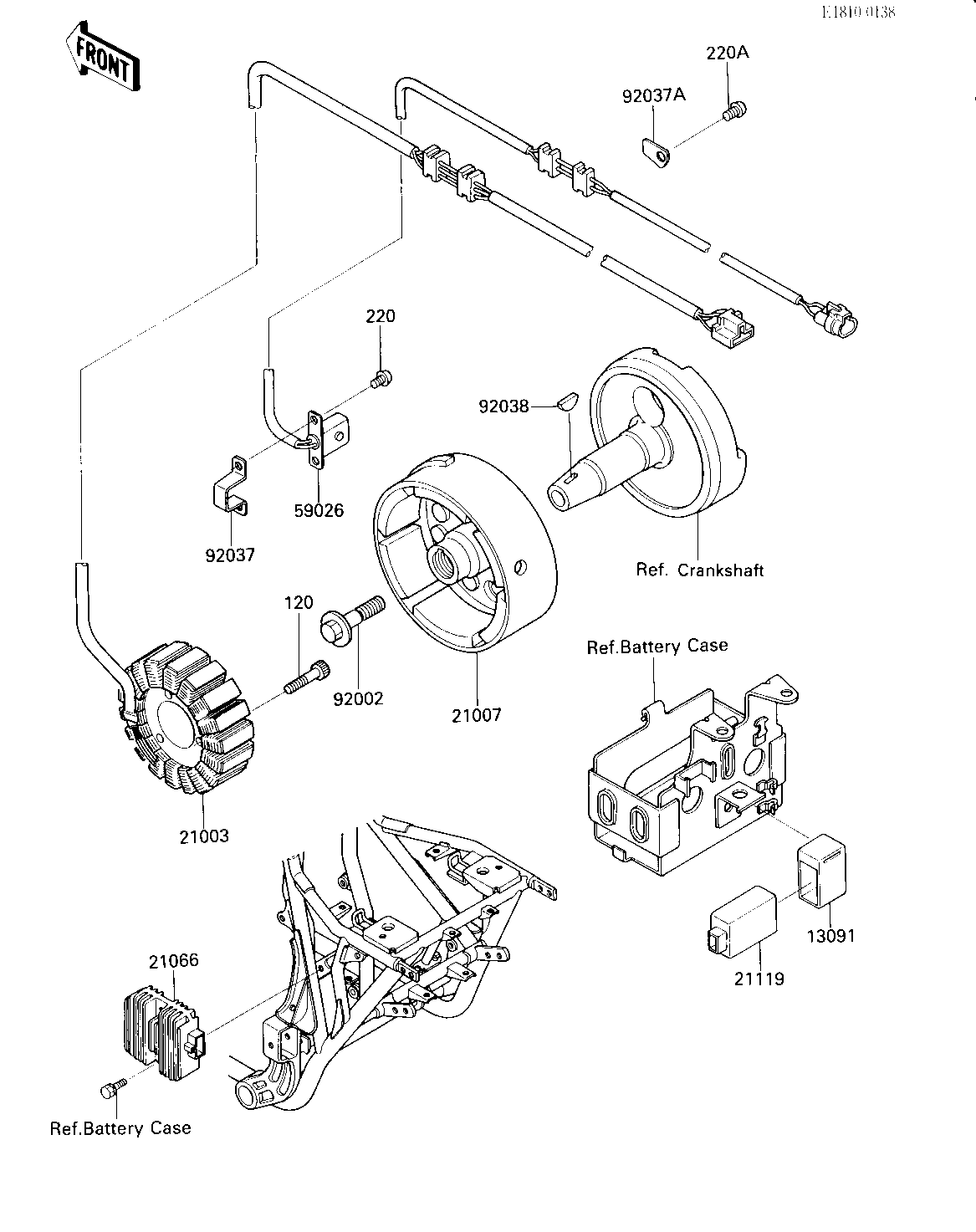

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1095 1
STATOR 21003 21003-1128 1
ROTOR 21007 21007-1133 1
REGULATOR-VOLTAGE 21066 21066-1055 1
IGNITER 21119 21119-1193 1
COIL-PULSING 59026 59026-1069 1
BOLT,10X40 92002 92002-1296 1
CLAMP,GENERATOR LEAD 92037 92037-1655 1
CLAMP,WIRING HARNESS 92037A 92037-1656 1
WOODRUFF KEY 92038 92038-001 1
BOLT,SOCKET,6X30 120 120P0630 3
SCREW PAN HEAD 5X12 220 220B0512 2
SCREW PAN HEAD 6X12 220A 220B0612 1
