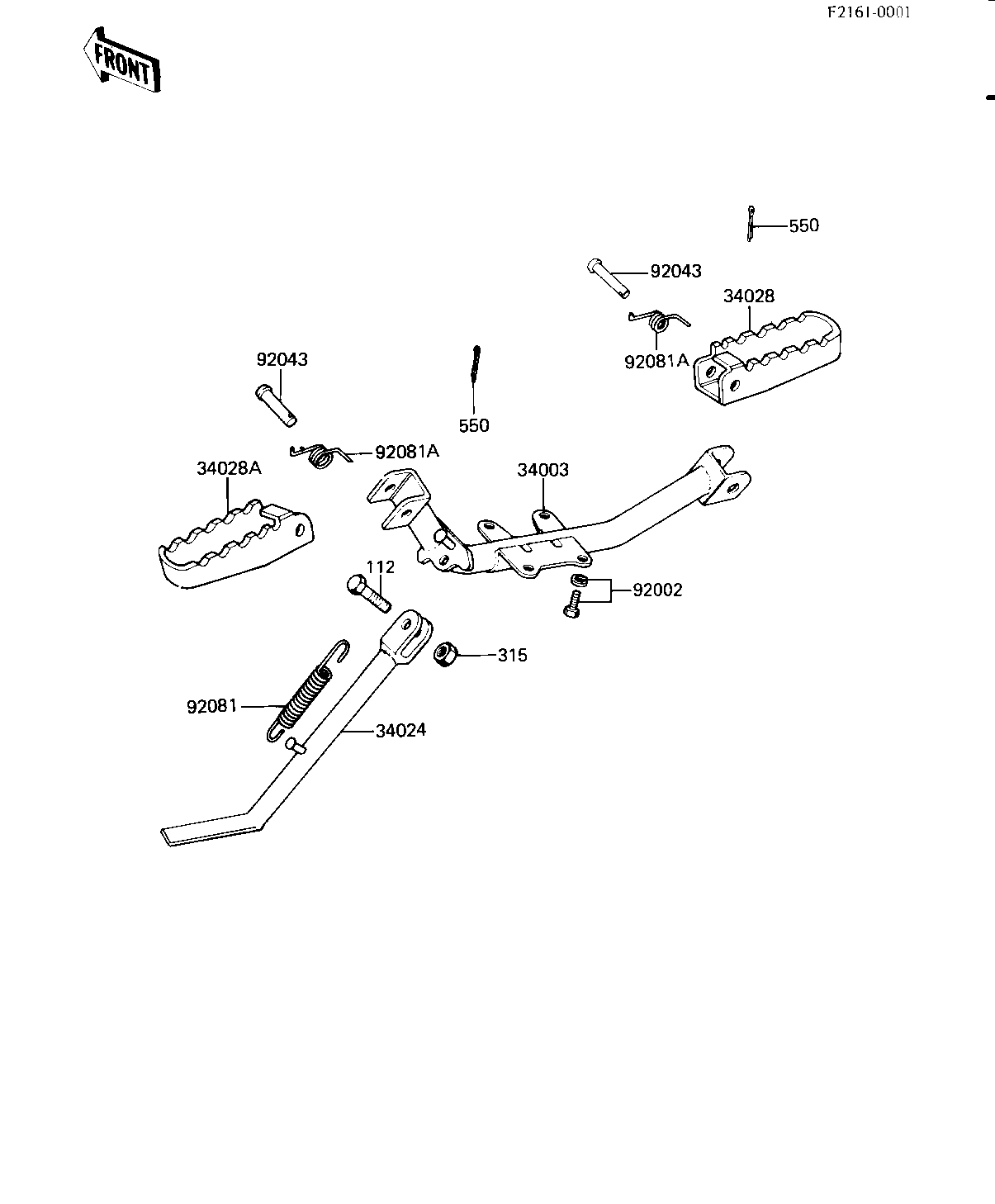

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR,FOOTREST 34003 34002-047 1
STAND-SIDE 34024 34024-1013 1
BAR,R.H FOOTREST 34028 34028-023 1
BAR,L.H FOOTREST 34028A 34028-024 1
BOLT,8X18 92002 92002-1231 4
PIN-FOOTREST BAR FIT 92043 92043-080 2
SPRING MAIN STAND 92081 34023-005 1
SPRING,FOOTRESTBAR 92081A 92083-027 2
BOLT-UPSET 112 112C1030 1
NUT-HEX-FINE 315 315C1000 1
PIN,COTTER,2.5X15 550 550D2515 2
