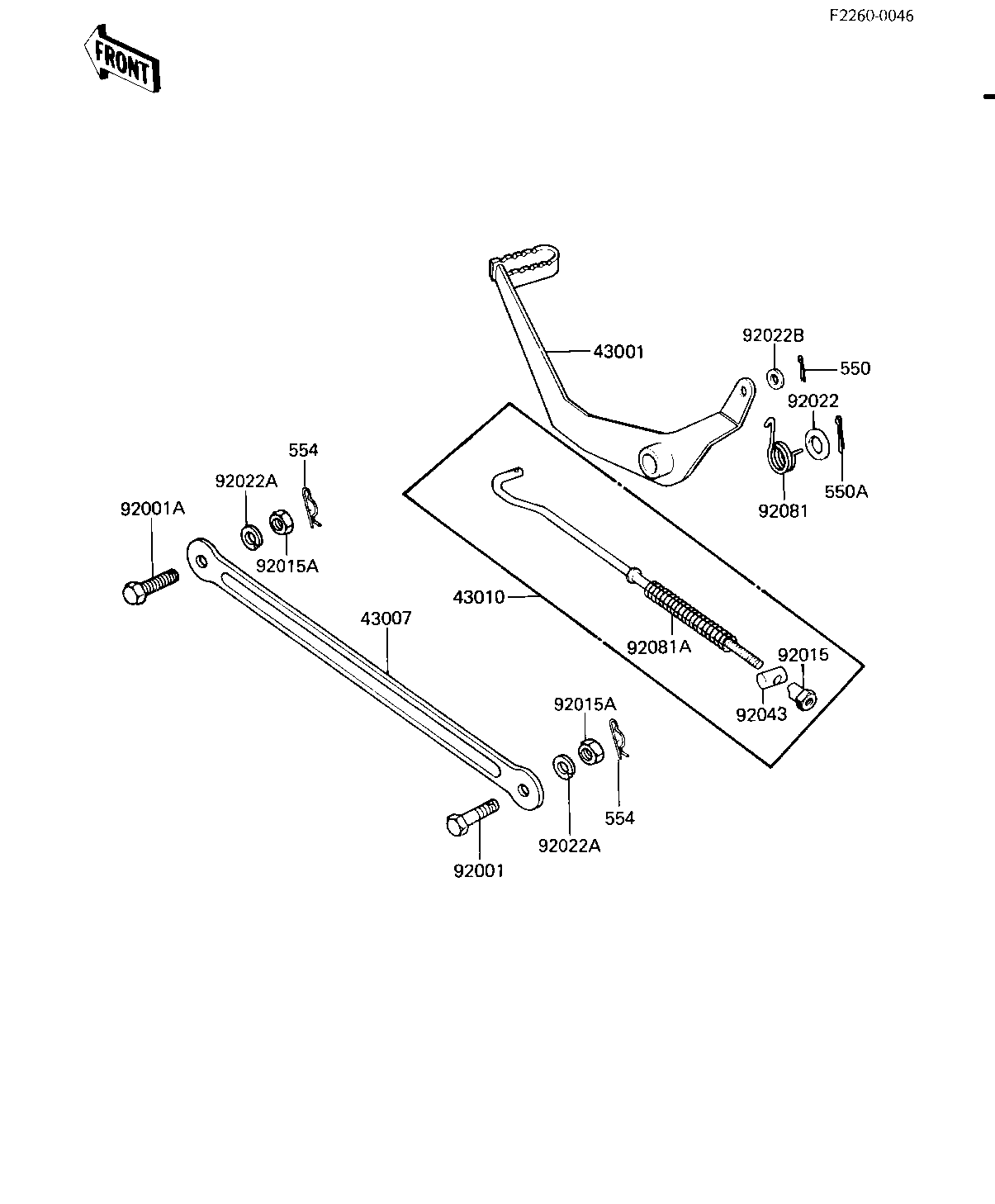

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL,BRAKE 43001 43001-062 1
TORQUE LINK,RR BRAKE 43007 43007-037 1
ROD ASSY,REAR BRAKE 43010 43010-5004 1
BOLT HEX HEAD 10X25 92001 92003-003 1
BOLT TORQUE LINK FIT 92001A 92003-017 1
NUT-BRAKE ROD ADJUST 92015 92015-042 1
NUT,10MM 92015A 92015-1416 2
WASHER,SPRING,10MM 92022A 92022-1540 2
WASHER PLAIN 6MM 92022B 410B0600 1
PIN BRAKE 92043 92043-039 1
SPRING-BRAKE PEDAL 92081 43005-020 1
SPRING,BRAKE ROD 92081A 43012-001 1
PIN COTTER 2.0X15 550 550D2015 1
PIN COTTER 3.0X30 550A 550D3030 1
PIN,SNAP 554 554A0800 2
