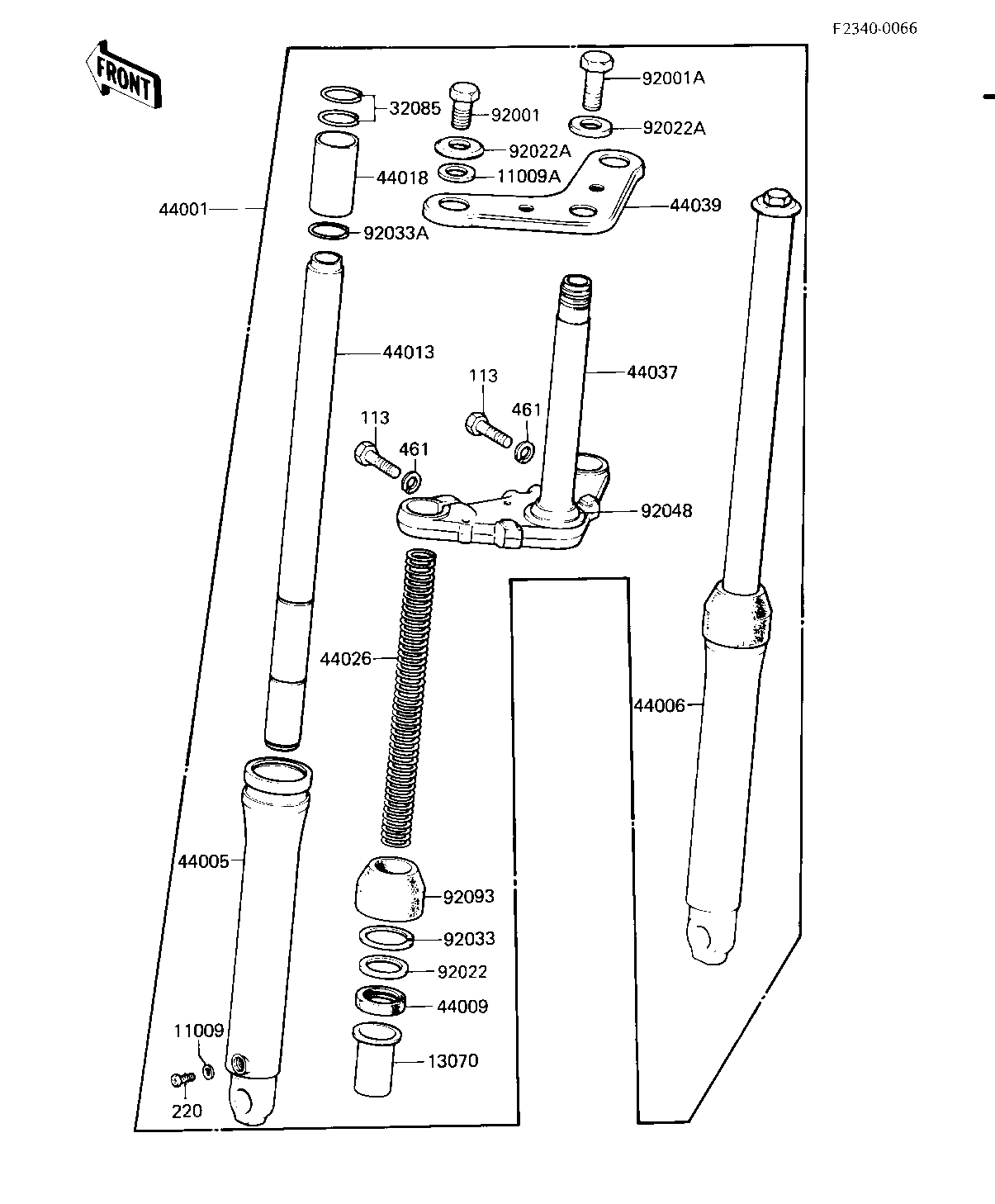

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK DRAIN PLG | 11009 | 44045-046 | 2 | ||
GASKET,FORK TOP BOLT | 11009A | 44045-053 | 2 | ||
GUIDE,FORK INNER TUBE | 13070 | 44015-016 | 2 | ||
RING,INNER TUBE GUIDE | 32085 | 44020-003 | 2 | ||
FORK-FRONT | 44001 | 44001-1419 | 1 | ||
TUBE,LH,FORK OUTER | 44005 | 44005-052 | 1 | ||
TUBE,RH,FORK OUTER | 44006 | 44006-050 | 1 | ||
SEAL-OIL,OUTER TUBE | 44009 | 92049-1075 | 2 | ||
TUBE,FORK INNER | 44013 | 44013-1034 | 2 | ||
PISTON,FORK | 44018 | 44018-007 | 2 | ||
SPRING,FORK INNER | 44026 | 44026-1050 | 2 | ||
STEM,STEERING | 44037 | 44037-1034 | 1 | ||
HEAD,STEERING STEM | 44039 | 44039-1025 | 1 | ||
BOLT | 92001 | 92001-1742 | 2 | ||
BOLT 10X30 | 92001A | 92001-1743 | 1 | ||
WASHER,FORK OUTER TUB | 92022 | 44043-054 | 2 | ||
WASHER | 92022A | 92022-1381 | 3 | ||
CIRCLIP,40MM | 92033 | 44044-016 | 2 | ||
CIRCLIP,FORK PISTON | 92033A | 44044-017 | 2 | ||
CONE LOWER BEARING | 92048 | 92047-004 | 1 | ||
DUST SHIELD,FORK | 92093 | 44010-024 | 2 | ||
BOLT,HEX HEAD 10X35 | 113 | 92001-1252 | 2 | ||
SCREW PAN HEAD 4X6 | 220 | 220B0406 | 2 | ||
WASHER SPRING 10MM | 461 | 461F1000 | 2 |
