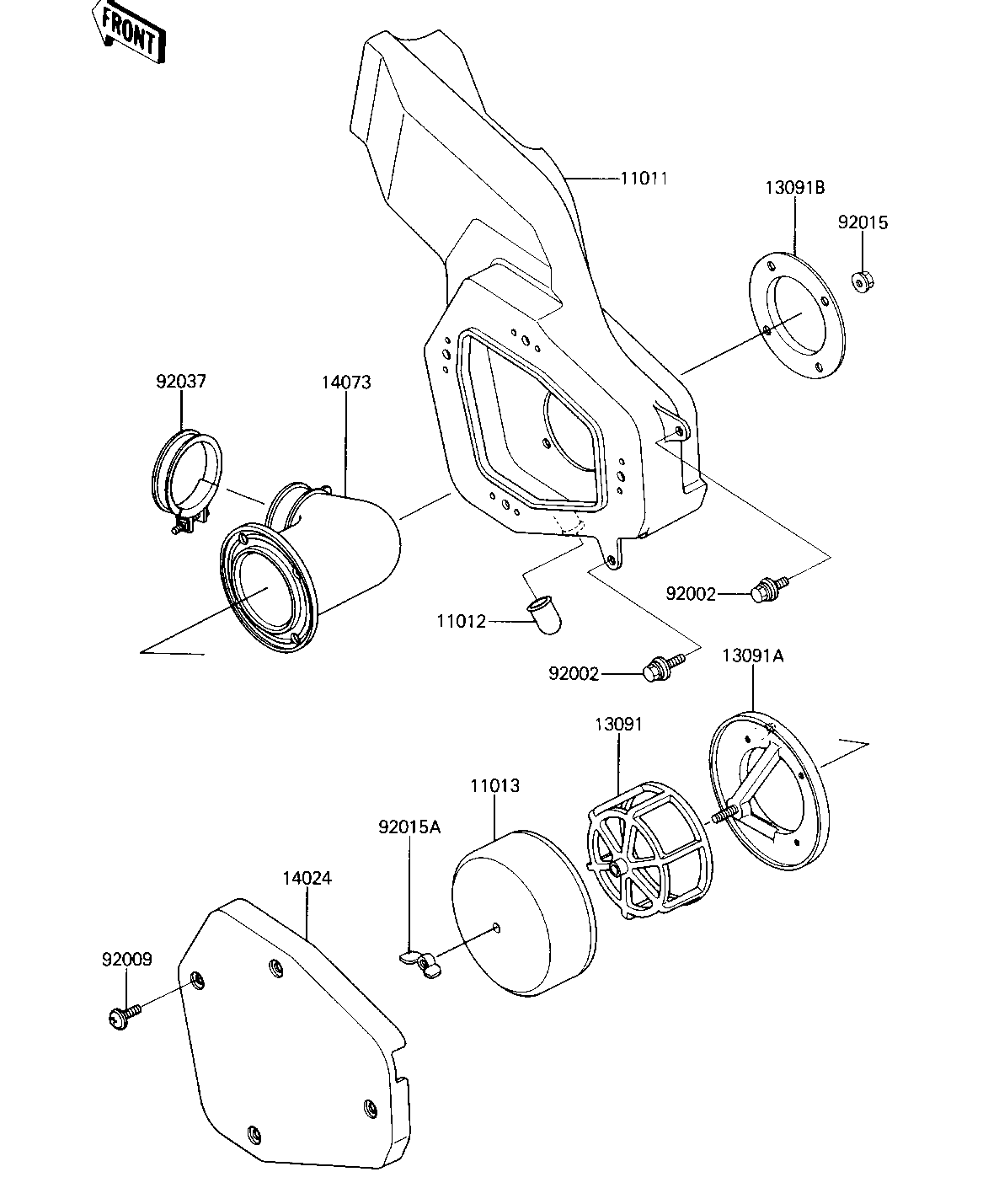

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1208 1
CAP,DRAIN 11012 11012-1308 1
ELEMENT-AIR FILTER 11013 11013-1136 1
HOLDER,ELEMENT 13091 13091-1403 1
HOLDER 13091A 13091-1404 1
HOLDER 13091B 13091-1405 1
COVER,AIR FILTER CASE 14024 14024-1140 1
DUCT,AIR FILTER 14073 14073-1237 1
BOLT 92002 92150-1506 2
SCREW,6X14 92009 92009-1287 4
NUT,FLANGED,5MM 92015 92015-1259 4
NUT,AIR CLEANER CAP 92015A 92016-062 1
CLAMP 92037 92037-171 1
